Hexa CONTROL RT226-B24 Fan Coil Digital Thermostat

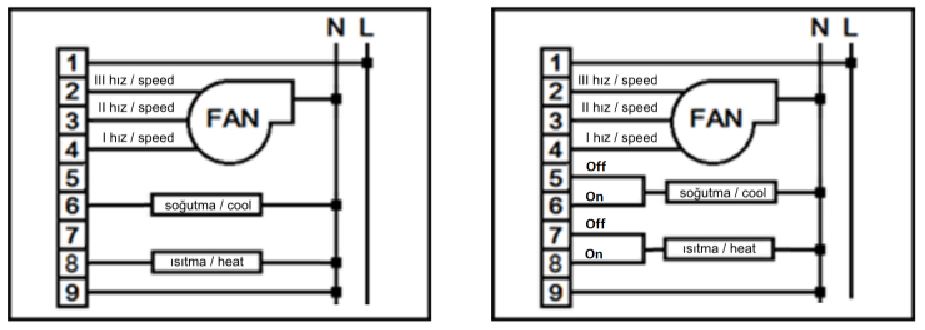

Specification:4 pipes FCU systems
- Heat / Cool mode

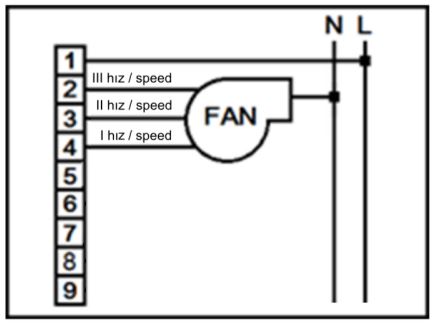

- 3-speed thermostatic fan control
- Motorized valve On/Off control
Power Source:220VAC, 50-60Hz
Temperature Operation:5-35 °C
Accuracy:±1 °C
Load Curren:2A
Color: White
Installation: Flush mounting

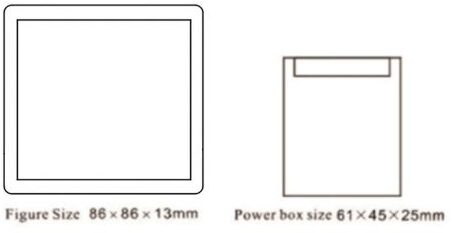

Dimensions:86X86X13mm
Warranty:2 years
Certificate: CE ve ISO9001
Brand: HEXA CONTROLS
Origin: People’s Republic of China (PRC)

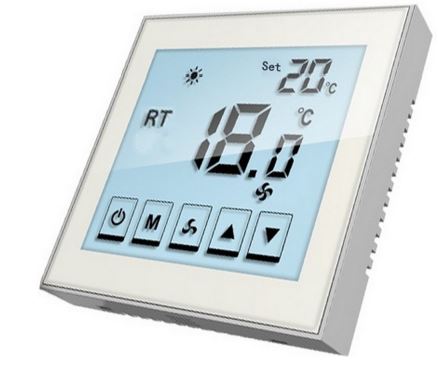

The temperature is shown on the screen all time, you can set the temperature by using ▲▼ buttons.
Press the M button to set Heat or Cool mode. When it is in cool mode, it shows, and when it is in heat mode, it shows on the screen.
Press the button to set the fan speed for
The timer option allows you to turn it on or turn it off at a time you prefer. When you push the TIMER ON button, you can set a time you would like the thermostat to be turned ON, and when you push the TIMER OFF button you can set a time you would like the thermostat to be turned OFF.
To Calibrate the temperature on the thermostat, turn off the thermostat and push the button for 3sec. Then you can calibrate the temperature by ▲▼ buttons.
