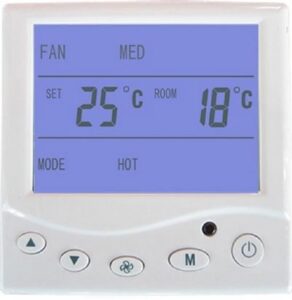

Hexa CONTROL RT226-A2 Heating/Cooling Thermostat
Features
The “RT226-A” model thermostat is suitable for temperature control for floor heating applications to control valve or electrical heater. The thermostat is also can be used to control the temperature and fresh ait by controlling damper actuator.
This model has been designed to be especially user friendly and features a simple and precise round that’s been celebrated for its easy of use and precision. Featuring a decorative covering ring to cover surrounding wall tat is a modern classic that has earned its distinction as a top end thermostat.
It is high technology to monitor energy usage. This thermostat is also can be controlled by IOS or Android smart cell phones.
SPECIFICATION
- Part Number: RT226-A2
- Power Source:230V AC, 50/60Hz
- Setting Range:5 ~ 35°C (heat / cool mode)
- Accuracy:±1°C
- Load Current:2A (fan output), 0.5A (valve output)
- Valve Control:2 point actuator On/Off control
- Fan Control:3 speed (H/M/L) thermostatic fan control
- Color: White
- Installation: Flush mounting
- Dimensions:86X86X15mm
- Warranty:2 years
- Certificates: CE and ISO9001
- Country of Origin: People’s Republic of China (PRC)
| Part Number | System | Comunication Function | Fan Output Signal | Actuator Output Signal | External Sensor | Room Card |
| RT226-A2 | 2 pipe | Stand-alone WIFI | 3 Speed On/Off Thermostatic Control 230V AC | 2 or 3 points On/Off 230V AC | Not Available | Not Available |
