Heatmiser neoStat-hw V2 – Hot Water Programmer THERMOSTAT PRODUCT SPECIFICATION GUIDE

Contents hide
1 Heatmiser neoStat-hw V2 – Hot Water Programmer THERMOSTAT
2 Feature Table – Timer Mode
3 Product Dimensions (mm) & Wiring Specification
4 Reference

Heatmiser-logo

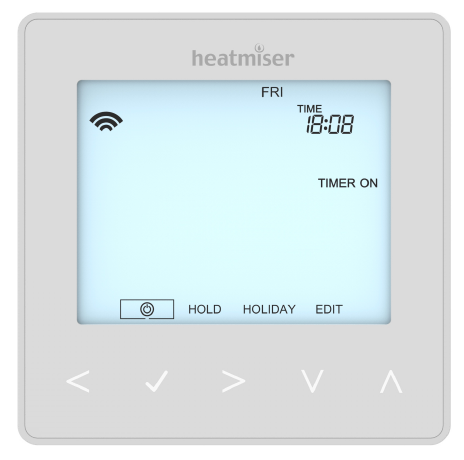

Heatmiser neoStat-hw V2 – Hot Water Programmer THERMOSTAT

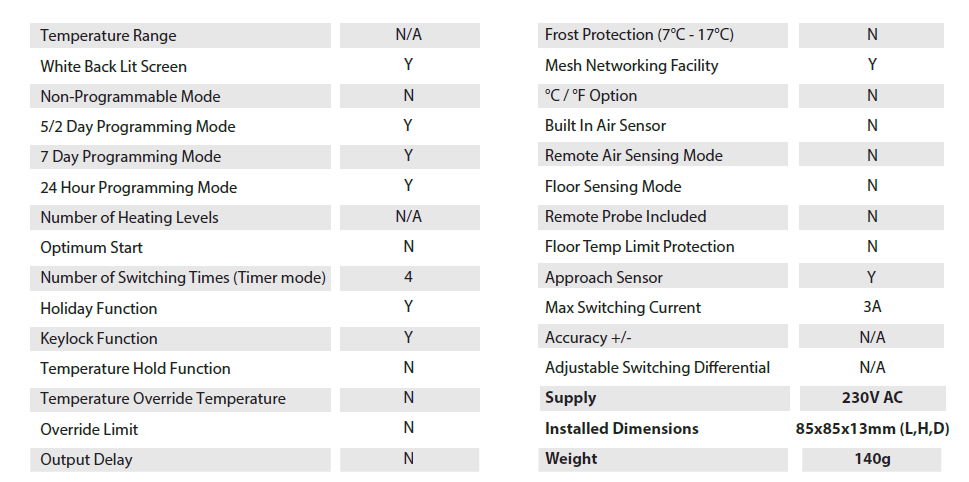

Heatmiser-neoStat-hw-V2 - Hot-Water-Programmer-THERMOSTAT-productFeature Table – Timer Mode

Heatmiser-neoStat-hw-V2 - Hot-Water-Programmer-THERMOSTAT-fig-3Heatmiser-neoStat-hw-V2 - Hot-Water-Programmer-THERMOSTAT-fig-1

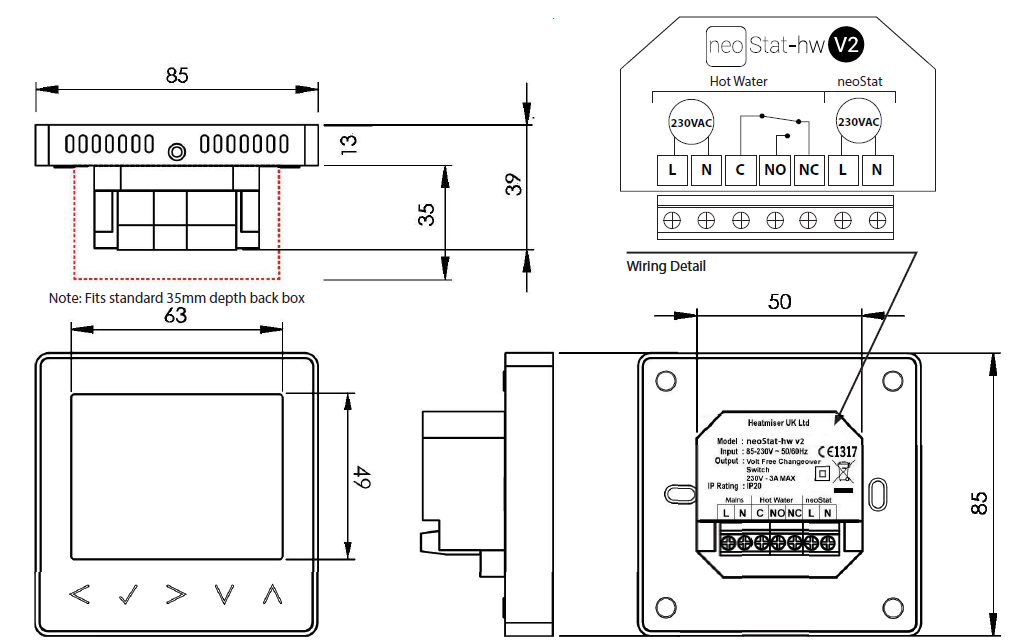

Product Dimensions (mm) & Wiring Specification

Heatmiser-neoStat-hw-V2 - Hot-Water-Programmer-THERMOSTAT-fig-2

Heatmiser UK Ltd
1 – 5 Hurstwood Court, Mercer Way, Shadsworth Business Park, Blackburn, Lancashire. BB1 2QU, England Registered in England: 3747773

tel. 01254 669090
fax. 01254 669091
email. [email protected]
web. www.heatmiser.com
WEEE Registration Number: WEE/GF0052TQ
