Heatit 4512667 HEATIT Z-TEMP2 Thermostat
INTRODUCTION
Heatit Z-Temp2 is a battery-operated thermostat designed for use with water-based heating systems. Used in combination with the Heatit Z-Water regulator you can control your heating system with a Z-Wave primary controller/gateway with the use of Heatit Z-Water in combination with one or several Heatit Z-Temp2.
INSTALLATION

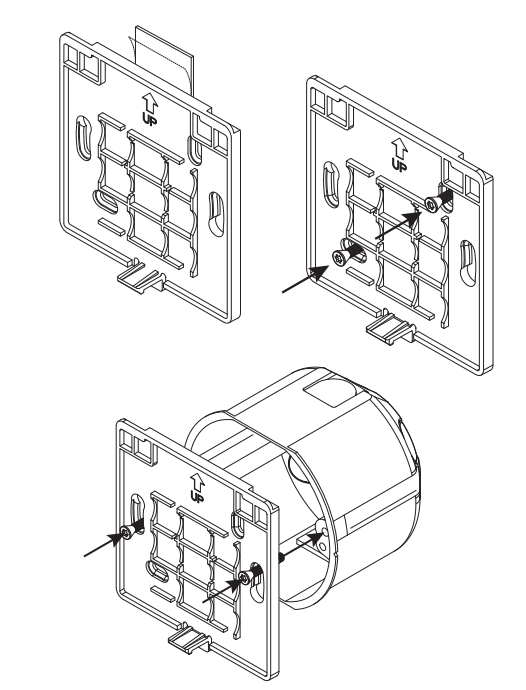

Fix the unit to the wall with double-sided tape, and screws, or installed it on top of a Euro wall box. Make sure the mounting surface is clean and dry.
ADD/REMOVE
During this process, it is recommended to have the thermostat as close to the primary controller/gateway as possible. Please refer to your primary controller/gateway manual on how to enter add/remove mode.
The device can only be added or removed from the network if the primary controller is in add/remove mode.

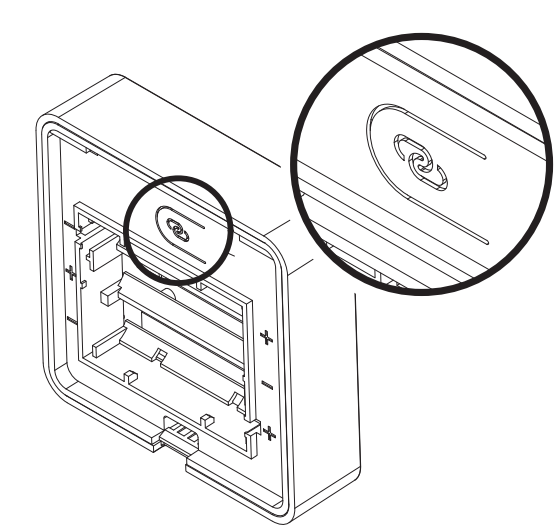

When the primary controller/gateway is set to add/remove modus press the link button on the thermostat 3 times in a rapid sequence.
When the device successfully has entered learning mode, the thermostat will show “circling LEDs” in the display.
- ADD
If the thermostat is successfully added to a Z-Wave network, the thermostat will display “INC”. - REMOVE
If the thermostat is REMOVED from the Z-Wave network, the device will display “ECL”. - ERROR
The thermostat is already added in a Z-Wave network or the inclusion process is timed out the thermostat displays “Err”. Follow the removal process before adding it to your network. Otherwise, the addition of this device will fail. When the device is removed from the network, the device will revert to factory settings.
PS! The learning mode will timeout after 90 seconds if the thermostat does not register the gateway.
SETTING ASSOCIATIONS
After the device is added to your Z-Wave gateway you will need to link the thermostat to the device that is going to control the heating. This is done by using association groups from the thermostat’s root device (EP0) with Group 3 (GR3) towards your actuator device (using Multichannel or Single-channel, based on the controlled device type.
*To set associations in your primary controller/gateway, please refer to your gateway’s user manual.
TECHNICAL DATA
- Protocol Z-Wave
- Chip Z-Wave 700 chip
- Rated voltage 3 x AA batteries (1,5V)
- Ambient temp. 0°C to 60°C
- Humidity Max 85% RH
- Range RF Min. 40 meters
- Hysteresis 0,3°C to 3,0°C (default 0,5°C)
- IP Code IP 21
- Approvals Z-Wave Plus V2, CE, RED 2014/53/EU, ETSI EN 301 489-1 V2.2.3 (2019-11), ETSI EN 301 489-3 V2.1.1 (2019-03), ETSI EN 300 220-1 V3.1.1 (2017-02) ETSI EN 300 220-2 V3.2.1 (2018-06), EN 62479:2010, EN 62368-1:2014+A11:2017, RoHS 2011/65/EU
Heatit Controls AB can not be held liable for typographical errors, other errors, or omittances in our information. Product specifications may change without further notice. All electrical installations must be carried out by a licensed electrician. The product must be installed in accordance with national building codes and our installers manual.
Heatit Controls AB l Läkarvägen 4, 454 31 BRASTAD, SWEDEN
Phone: +47 61 18 77 77
[email protected]
www.heatit.com
