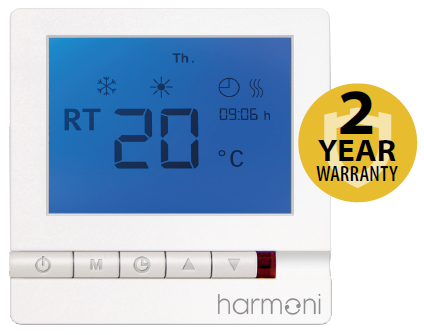

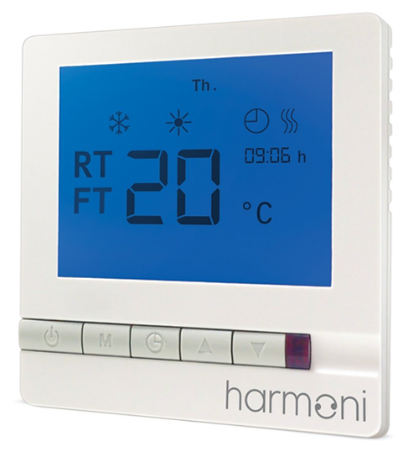

Harmoni 25 Programmable Thermostat
SPECIFICATIONS & FEATURES
Overview
The Harmoni 25 is an advanced 7-day programmable digital timer thermostat used for controlling electrical underfloor heating elements. Designed for fixed installation only, the Harmoni 25 can be used to control your floor heating system by either the floor temperature, the room temperature, or both together.
Specifications
- Color White
- Dimensions 86(H) × 86(W) × 13(D)mm
- Fixing screw width 60mm
- Mains voltage 230V
- Switching capacity < 13A (resistive load)
- Set-point range Room: 5°C to 35°C
- Floor: 20°C to 35/45°C
- Sensing values Default NTC 10 kOhm at 25°C
- 15°C at 14.8 kOhm
- 18°C at 13.1 kOhm
- 20°C at 12.1 kOhm
- 22°C at 11.2 kOhm
- Accuracy ±1°C
- Power consumption < 2W
- Buttons Touchpad
Programming 7-day programmable - Housing ABS + PC Flame Retardant
- IP classification IP 21
- SW class A
- Pollution degree 2 (domestic use)
- Weight 253 gm
- Wi-Fi compatible No
- Warranty 2 years
Features
- Easy to set up
- Elegant, slim design
- Backlit display
- Energy saving features
- Floor sensor included
- Full user programming
- 2-year warranty
