Greenlite AIRZ Smart Thermostat
Greenlite AirzTM is ready to make your home energy efficient and more comfortable. Follow these easy steps to get started.
Greenlite Products offers installation and product videos Please visit greenliteusa.com/thermostat. To contact Greenlite Technical Support, please call 844.695.9090 or email [email protected].For more information about installation settings, please visit
greenliteusa.com/thermostat
This manual is a comprehensive guide to installation and wiring.
START HERE
Required Tools:
- Phillips Screwdriver
Optional Tools:
- Smartphone
- Wire Stripper
- Power Drill
Step 1.1
Download the free Greenlite Thermostat App to your mobile device and create an account.
Step 1.2
Set your phone aside and turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
Step 1.3
Confirm that your heating and cooling system is powered down by changing the temperature on your thermostat.
Hint
Your system should not make any noise and you should not feel any air exiting your vents.
Step 1.4
Remove the front of your old thermostat from its base. If you see thick black wires, wire nuts, or any labels that say 120-240VAC or High Voltage, your system is not compatible with Greenlite AirzTM. Please call Greenlite Technical Support at 844.695.9090 or email
[email protected] before proceeding with your installation. If you do not see any high-voltage labels or wires, please continue with your installation
START HERE
Step 1.5
Use the included wire labels to mark which wire is connected to each terminal in your old thermostat. Take a picture of your current wiring layout, you will need this picture later.
NOTE: If you have any wires at your thermostat that are not coming from the wall, please leave those wires in your old thermostat. They are not needed for installing your Greenlite AirzTM.
Step 1.6
Confirm that you have a C-Wire. If you do, please turn to the next page. If you do not, please skip ahead to page 10.
Installing with a C-wire
Before starting
Turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
Step 2.1
Identify your system configuration (see wiring diagrams in the appendix). Potential configurations include:
- Conventional 1H/1C (Y, G, W, R, C)
- Conventional 2H/1C (Y, G, W, W2, R, C)
- Heat Pump Single-Stage (Y, G, R, O/B, C)
- Heat Pump with auxiliary heat or dual fuel (Y, G, R, O/B, W, C) If you have only one R wire, please use the RH terminal. If you have a different configuration other than what is listed above, please call Greenlite Technical Support for help with your installation.
Step 2.2: Remove each wire from its terminal – make sure that they don’t fall down back into the wall.
Step 2.3: Remove the mounting screws from the base of the old thermostat. Remove the base from the wall.
Step 2.4: If you would like to use the trim plate or wall anchors, you can install them now.
Step 2.5: Separate Greenlite AirzTM from its base, and pull the halves apart from the bottom edge. Pull the wires from your wall through the center hole of the Greenlite AirzTM base. Secure the base to the wall using the included mounting hardware.
Option 1 – Conventional (Furnace) Systems
Step 2.6(f): Following the terminal labels marked “Conventional” on the thermostat base, loosen the screw and insert each labeled wire into the top hole of the corresponding terminal, tighten the screw.
Step 2.7(f): If you have both an RC and RH wire present, then remove the red cap located on the left side of the terminal pins. You can now skip ahead to step 2.8.
Option 2 – Heat Pump Systems:
Step 2.6(hp): Following the terminal labels marked “Heat Pump” on the thermostat base and referencing your wiring photo, loosen the screw and insert each labeled wire into the top C W1 hole of the corresponding terminal, tighten the C W1 screw.
If your old thermostat did not have a W1 wire but did have a W2 wire, please insert the W2 wire into the W1 terminal.
Step 2.7(hp): If you have both an O wire and a B wire (i.e. in some systems), please install the B wire to the “C” terminal. For more detailed directions, please see the wiring diagrams in the appendix or call Greenlite Technical Support.
Installation with C-wire
Step 2.8: Securely fasten Greenlite AirzTM onto its base. Once it has clicked into place, return power to your heating and cooling system.
Step 2.9: After your thermostat powers up, you are ready to configure Greenlite AirzTM for your heating and cooling system and connect to a wireless network. Please skip ahead to the “System Setup” section of this manual on page 18.
Installing without a C-Wire Using the Power Wire (included)
For installation without C-wire, you will need to access your furnace.
Before starting
Turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
Installation without C-wire
Hint: Helpful videos showing how to wire a thermostat with the Power Wire are available at greenliteusa.com
Step 3.1: Starting at your thermostat
confirm that you have one of the system configurations below:
- Conventional 1H/1C (Y, G, W, R)
- Conventional 2H/1C (Y, G, W1, W2, R)
If you have a different configuration than what is listed above or if you have an electric furnace, please call Greenlite Technical Support for help with your installation.
Step 3.2: Remove each wire from its terminal – make sure that they do not fall down back into the wall.
Step 3.3: Remove the mounting screws from the base of the old thermostat. Remove the base from the wall.
Step 3.4: If you would like to use the trim plate or wall anchors, you can install them now.
Step 3.5: Separate Greenlite AirzTM from its base, and pull the halves apart from the bottom edge. Pull the wires from your wall through the center hole of the Greenlite AirzTM base. Secure the base to the wall using the
included mounting hardware.
Step 3.6: Following the terminal labels marked “Conventional” on the thermostat base, loosen the screw and insert each labeled wire into the top hole of the corresponding terminal.
Connect as follows
NOTE
The G wire was previously in the G terminal, it will now go to the C Terminal on Greenlite AirzTM.
Step 3.7
Securely fasten Greenlite AirzTM onto its base.
Step 3.8
Go to your furnace – remove the door or panel and locate your control board or transformer. In most cases, there should be four wires running from the furnace to your thermostat – Y, G, W, and R. If you have additional wires, leave them as is.
Step 3.9
- Remove the G Wire from the Fan Terminal at your furnace, insert the wire into your Furnace Transformer Terminal
- Insert one end of the Power Wire into the now empty Fan Terminal and the other end into the Cool Terminal (with the Y Wire).
Step 3.10: If you had to remove a panel or door to access your control panel, replace it now.
Step 3.11: Return power to your heating and cooling system. If your system, including your thermostat, does not power up please call Greenlite Technical Support. After Greenlite AirzTM powers up, you are ready to configure it for your heating and cooling system (page 21)
and connect to a wireless network (Skip to page 22).
Installing without a C-Wire Using the Power Bridge (sold separately)
- Install and wire Greenlite AirzTM
- Install Power Bridge (at your furnace)
Power Bridge available at gr eenliteusa.com/thermosta For installation without C-wire, you will need to access your furnace.
Before starting
Turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
Installation without C-wire
Hint: Helpful videos showing how to wire a thermostat with the Power Bridge is available at: greenliteusa.com/thermostat
Step 4.1: Starting at your thermostat, confirm that you have one of the system configurations below:
- Conventional 1H/1C (Y, G, W, R)
- Conventional 2H/1C (Y, G, W1, W2, R)
If you have a different configuration other than what is listed above, please call Greenlite Technical Support for help with your installation.
Step 4.2: Remove each wire from its terminal – make sure that they do not fall down back into the wall.
Step 4.3: Remove the mounting screws from the base of the old thermostat. Remove the base from the wall.
Step 4.4: If you would like to use the trim plate or wall anchors, you can install them now.
Step 4.5: Separate Greenlite AirzTM from its base, and pull the halves apart from the bottom edge. Pull the wires from your wall through the center hole of the Greenlite AirzTM base. Secure the base to the wall using t included mounting hardware.
Step 4.6: Following the terminal labels marked “Power Bridge” on the thermostat base, loosen the screw and insert each labeled wire into the top hole of the corresponding terminal.
Step 4.7: Securely fasten Greenlite AirzTM onto its base.
Step 4.8: Go to your furnace – remove the door or panel and locate your control board or transformer. In most cases, there should be four wires running from the furnace to your thermostat – Y, G, W, and R. If you have additional wires, leave them as is.
Step 4.9 Matching the letters, label the wires connected to your furnace with the included wire labels for the Power Bridge. Take a picture of the wiring on your control board.
- Disconnect these wires from the control board.
- Open the Power Bridge and insert each of your old wires into the corresponding numbered terminals in the Power Bridge.
- Finally, insert the Power Bridge wires (with the colored labels) into the corresponding terminals on your furnace control board.
Step 4.10: Secure the Power Bridge to your furnace. If you had to remove a panel or door to access your control panel, replace it now.
Step 4.11: Return power to your heating and cooling system. If your system, including your thermostat, does not power up please call Greenlite Technical Support.
After Greenlite AirzTM powers up, you are ready to configure it for your heating and cooling system and connect to a wireless network.
Setup – Selecting your System Type
Step 5.1: After your thermostat powers up, your Greenlite AirzTM will auto-scan the terminal pins to determine what type of HVAC system you have. If there is more than one possible system type, you will need to select your system type (options described on the next page).
Step 5.2: Use the Up and Dow arrows to cycle through the system options. With your system type displayed, press the center button to
continue to Network Setup on Page 22.
SETUP
System options
Electric Furnace
Electric system with fan. The thermostat calls for a fan to run with heat.
Gas Furnace
A gas system with a fan. The thermostat calls for a fan to run with heat.
Air Conditioning Only
Cooling Only. The thermostat calls for fan to run with cool Continued on Page 20.
System options (can’t)
Boiler:
Boiler heating system with no fan connected.
Heat Pump
Heat pump system, thermostat calls for a fan to run with heat or cool.
NOTE: If you have a heat pump system, press the center button to select.
Greenlite AirzTM will now ask you to confirm your valve type. Use the up and down arrows to toggle between O & B Valves, and press the center button to select
Heat With P-Wire
This represents a furnace heat system utilizing the P-Wire. Greenlite AirzTM will toggle between the screens below:
Cool With P-Wir
This represents an air conditioning system utilizing the P-Wire. Greenlite AirzTM will toggle between the screens below:
NOTE: When using the Power Wire, your system will only call for the fan when the device calls for heat or cool, respectively. You will not be able to run your fan continuously or on internal air quality mode.
Setup – Connecting to the Network
Step 6.1: After you confirm your system type, you will be given the option to set up or Skip WIFI Configuration. Use the up and down buttons to change options and press the center button to confirm your selection.
Select “Setup” to connect to a network.
Step 6.2: After selecting “Setup”, Greenlite AirzTM will display: “Step 1: App”. Make sure that you have downloaded the Greenlite Smart
Thermostat to your smartphone.
Step 6.3: With “Step 1: App” displayed on the screen, push the center button to continue.
NETWORK

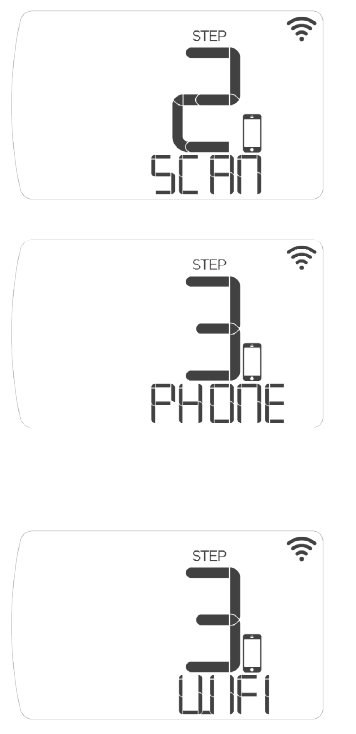

Step 6.4: When your device displays “Step 2: Scan”, Greenlite AirzTM will scan for surrounding WiFi networks.
Step 6.5: When your device displays “Step 3: Phone”, You will need to go to the WiFi settings in your smartphone and select the Greenlite AirzTM WiFi network. The network name and password are on the back of the device and on a label on the box.
NOTE: If you have already recycled the box, please return to Step 2.8 to take a photo of the WiFi information that is on a label on the base of your thermostat.
Step 6.6: After you have connected to the Greenlite AirzTM WiFi Network, switch back to the Greenlite app. Select your home WiFi network from the list of available networks and enter the password. Your device will display “Step 3:WiFi” when it is ready to connect to your home WiFi network.
Step 6.7: Your device will automatically display: “Step 4: Launch” when it is attempting to connect to the internet.
Step 6.8: After your device has successfully connected to the internet, you will see “Step 4: Done”, your device will then switch to the standard operations screen.
NOTE: Greenlite AirzTM cannot be used with a 5GHz WiFi network. Please ensure that your wireless network is set to 2.4GHz and that the security settings are set to open or WPA2. For more information about how to check your network settings, please check your router’s documentation or label.
NOTE: Open the Greenlite App. If you are adding your first device, select the Greenlite AirzTM-shaped icon. Next to the icon it may say Connect a CS1 thermostat to my account or Connect an AIRZ thermostat to my account. Either one is an acceptable selection to add your thermostat. If you are adding an additional device, start from the “Locations” menu and select the “+” icon in the top left corner within your current location. For iOS users, we recommend using an Apple® device with iOS8.0 or later.
If you need to cancel the joining process at any time, simply press and hold the center button for 5 seconds.
Congratulations!
When you see the thermostat’s home screen with a WiFi icon, it means you are connected. Installation is complete and your Greenlite AirzTM is ready to go. Now let’s save some energy and make your home more comfortable. You can now control your comfort from anywhere with an internet connection!
Conventional System With C-Wire Wiring Diagram
NOTES
- The W2 terminal is used for 2-stage heating systems only
- If you have both an RH and RC wire, please remove the red cap from the back of the thermostat
APPENDIX
Heat Pump System With C-Wire Wiring Diagram
NOTES
- The W1 terminal is used for Auxiliary/Emergency heat or on Dual Fuel systems
Conventional System Without C-Wire (BEFORE Power Wire) Wiring Diagram
NOTE
- At your thermostat, you will move the G Wire (dark) to the C Terminal.
Conventional System Without C-Wire (AFTER Power Wire) Wiring Diagram
NOTES
- The G Wire (dark) that previously went to the Fan Terminal now connects to the Furnace Transformer
- The Power Wire (white) connects to both the Fan Terminal as well as the Cool Terminal (with the Y Wire)

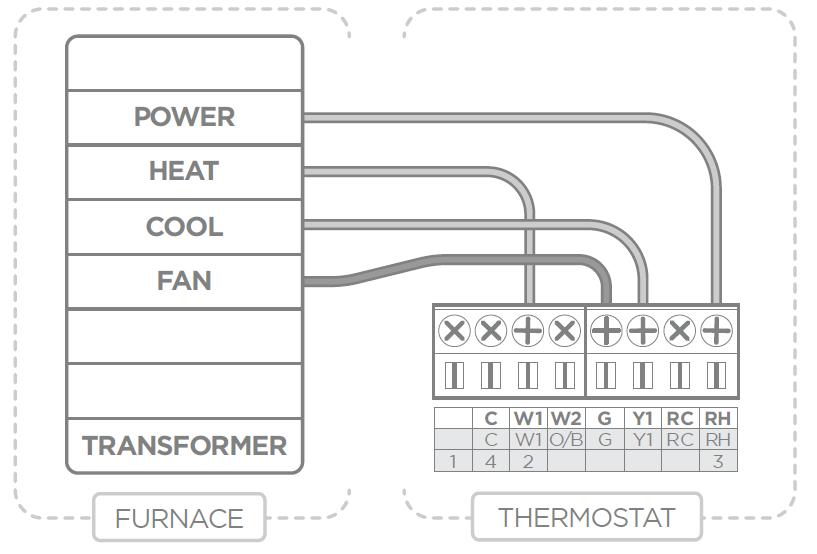

Power Bridge Wiring Diagram
NOTES
- If you have a heat pump or dual transformer system, please call Greenlite Tech support.
- If you have any wires on your furnace not shown here, please leave them as is.
FCC Part 15C
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC RF Radiation Exposure Statement
Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons. License Agreement (Including ARM Limited and ST Microelectronics) THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Industry Canada Regulatory Information
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
