Fujitsu UTY-RVNUM Wired Remote Controller Thermostat Product Specifications Guide-featured

Fujitsu UTY-RVNUM Wired Remote Controller Thermostat Product Specifications Guide

Fujitsu logo

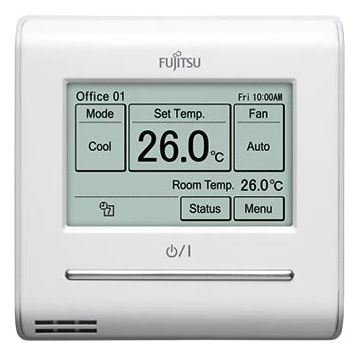

Fujitsu UTY-RVNUM Wired Remote Controller ThermostatFujitsu UTY-RVNUM Wired Remote Controller Thermostat Product Specifications Guide-product

General Features

  • Group & Individual Control
    • Up to 16 individual indoor units can be simultaneously controlled
    • Control of 1 indoor unit with dual remote controller
  • User
    • friendly Operation
    • Large backlight LED screen
    • Large easy to see operation panel
    • Multiple language support
  • Auto Off Timer
    • Indoor unit automatically turns off after a set time has passed
    • The time interval for which auto-off works can be set
  • Set Temperature Auto Return
    • The setting temperature automatically returns to the previous setting temperature
    • Time range in which set temperature can be changed is 10 to 120 minutes
  • Set Temperature Upper & Lower Limit Setting
    • The set temperature range can be set for each operation mode (Cooling / Heating / Auto)
  • Weekly Timer Function
    • Weekly Timer functions include: ability to shut off and turn on system, change in operation mode, and changes to the set temperature setting
  • Child Lock
  • Part Lock
  • Password Management
    • Unwanted functions can be restricted
    • Password is necessary to operate
  • Ability to display room temperature
  • Operation modes: Auto/Cool/Dry/Fan/Heat
  • Error code history retrieval
  • Multiple Function Settings (See Owner’s Manual)
  • 90 Day WarrantyFujitsu UTY-RVNUM Wired Remote Controller Thermostat Product Specifications Guide-fig-1

Submittal Data: UTY-RVNUMWired Remote Controller

Job Name:______________________________ Date:_______________________________
Location:_______________________________ Approval:____________________________
Engineer:_______________________________ Construction:_________________________
Submitted to:____________________________ Unit #:______________________________
Submitted by:___________________________ Drawing #:___________________________

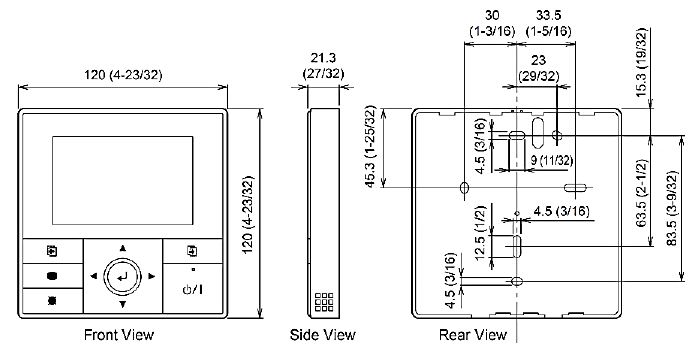

Reference:______________________________Fujitsu UTY-RVNUM Wired Remote Controller Thermostat Product Specifications Guide-fig-2

  1. Display panel (with backight)
  2. Screen switch button (Left B
  3. Menu buton
  4. Cancel button
  5. Cursor button
  6. Screen switch button (Right)
  7. Power indicator
  8. On/Off button
  9. Enter buttonFujitsu UTY-RVNUM Wired Remote Controller Thermostat Product Specifications Guide-fig-3

Fujitsu General America, Inc.
353 Route 46 West
Fairfield, NJ 07004
Toll Free: 1-888-888-3424
Fax: (973) 836-0447
www.fujitsugeneral.com
