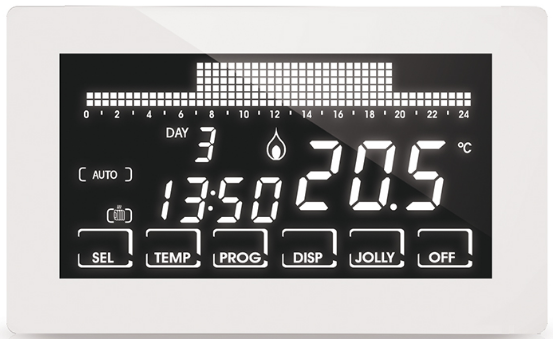

Fantini cosmi CH193WiFi Weekly Programmable Thermostat
Introduction
An electronic programmable thermostat, white backlight LCD touch screen, and weekly program to control the heating and air-conditioning systems, with WiFi connection for remote control through APP Intelliclima+ for Smartphone and Tablet.

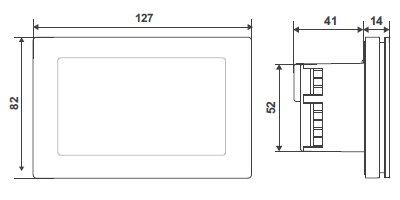

Dimensions (mm)
ELECTRIC FEATURES
- Power supply: 230V-50Hz;
- Wireless connection: Wi-Fi 2,4 GHz;
- Electrical insulation: double insulation
- Pollution degree: 2;
- Pulse voltage: 4000V;
- Connection: 3 screw terminals (contact switching NC and NO);
- Type of action: 1BU (micro disconnection);
- ON / OFF boiler control (settable from the main menu
HOMOLOGATION AND STANDARDS
- Complies with EN 60730-1 standards;
- ErP Class IV; 2% (Reg. EU 811/2013 – 813/2013);
- Responding to Directive 2014/53 / EU (RED ).
INSTALLATION
Flush-mounting installation in 3-module 503 embedded boxes at a height of approximately 1.5 m above the floor.
OPERATION

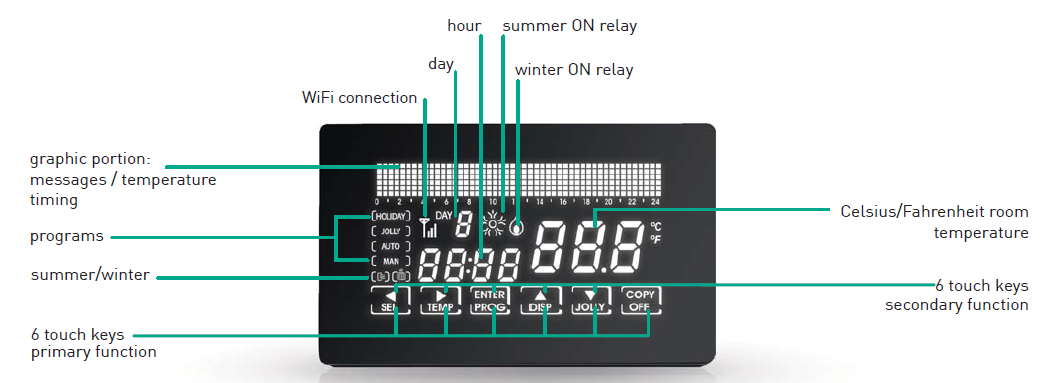

Intellitouch programmable thermostat is provided with 6 keys and their functions change according to the displayed description correspondent to each key
OPERATION MODES
Intellitouch programmable thermostat allows different modes of use, called programs:
- MAN Manual program
- AUTO Weekly program
- HOLIDAY Daily program
- JOLLY Temporary program
- OFF Switched off system or antifreeze program
MAN

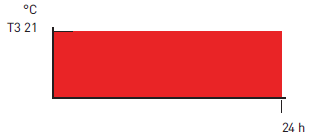

The programmable thermostat regulates the room temperature using the set temperature within 24 hours.
- T1: The temperature set manually from 2 to 40
AUTO

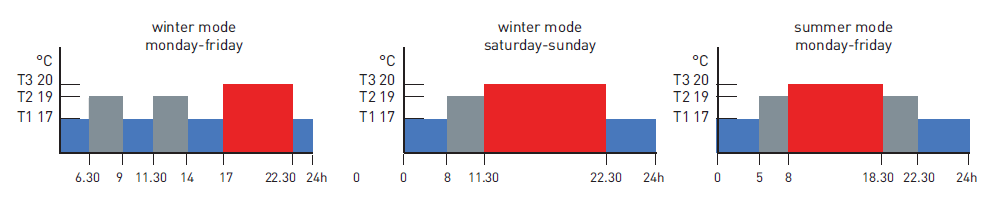

- The programmable thermostat regulates the prescribed temperatures according to the schedules on weekly profile.
- It has 1 winter program and 1 summer program (prescribed).
- In automatic mode can be set three temperature levels T1-T2-T3:
- T1 can be set from 2 to 40 °C.
- T2 can be set from 2 to 40 °C.
- T3 can be set from 2 to 40 °C.
- Antifreeze temperature -Ta it is set from 2 to 7 °C.
Note: T3 cannot be less than T2 and T2 cannot be less than T1.
HOLIDAY
- The programmable thermostat follows time and temperature settings of the day “H”.
- This mode stops when it is selected another operating mode. The programmable thermostat has a predefined mode – Holiday, equal to Saturday and Sunday.

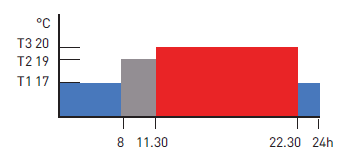

- In Holiday mode can be set three temperature levels T1-T2-T3.
JOLLY
- The programmable thermostat controls the installation using a set temperature over a period of time ranging from 1 hour to 240 hours.
- At the end of the set time, the programmable thermostat returns to the previously used operation mode.
- This function can be excluded at any time by setting a different operation mode.

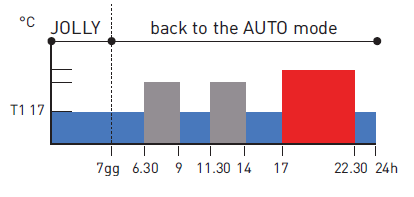

Example: Automatic Mode – Jolly for 1 week – the programmable thermostat completes the period of Jolly and resumes the automatic mode.
T1: The temperature set manually from 2 to 40°C.
OFF (turned OFF)
This mode is used to manage system operation for maintaining the antifreeze temperature, set from 2 to 7°C. Complete turn-OFF of the system Ta=OFF.
SPECIAL FUNCTIONS
These functions are selected accessing the technical menu of the programmable thermostat.
FREQUENT SETTINGS MENU
- Summer / Winter
- Summer time / Standard time
- Time / Day setting
- Lock function for screen cleaning.
CONFIGURATION MENU
- Celsius / Fahrenheit
- Temperature correction
- Time profile customization
- Backlight costumizable in intensity and duration
- 4 languages: Italian, English, French and Spanish
- Lock function with PIN code to prevent unauthorized setting changes.
- Default settings reset
FEATURES
- Protection degree: IP20;
- Acoustic signals: buzzer feedback with key pressing;
- Perpetual clock calendar, with backup battery;
- Software Class A;
- Minimum differential: ±0,1K;
- Thermal gradient: 4K/h;
- Maximum ambient temperature: 45 °C.
ACCESSORIES

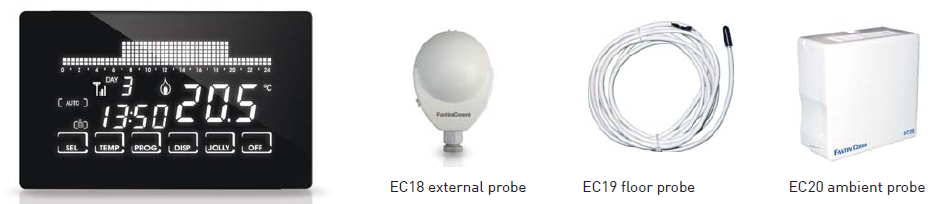

External probes
Weekly programmable thermostats series Intellitouch WiFi are designed for connecting external probes

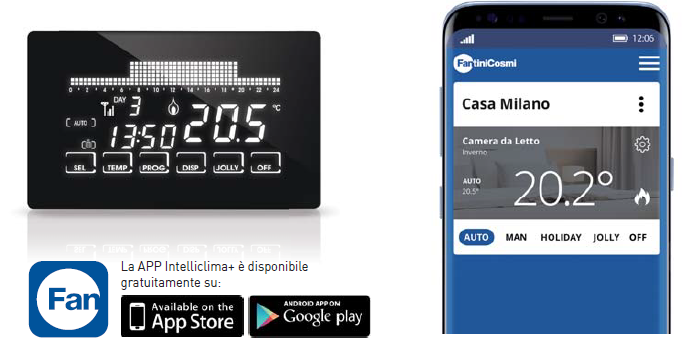

APP Intelliclima+
With the Intelliclima+ APP you’re always connected to your Fantini Cosmi CH193WiFi programmable thermostat and you can manage your ideal comfort levels in a simple and intuitive way, from a smartphone or tablet, wherever you may be. With Intelliclima+ you can:
- Switch the heating/cooling system on or off;
- Check the state of your system in real time;
- Choose your ideal temperature at any time and until when it set;
- Create your weekly or daily programme or choose from those preset;
- Optimise your comfort and save energy;
- Receive push notifications of generic alarms and anomalies in your system.
- Use the Intelliclima+ APP for all your CH193WiFi programmable thermostats: at home or in the office, beach side or mountain side.
- Indeed, Intelliclima+ can control several homes and several programmable thermostats within a single home.
Reference
DOWNLOAD MANUALS:

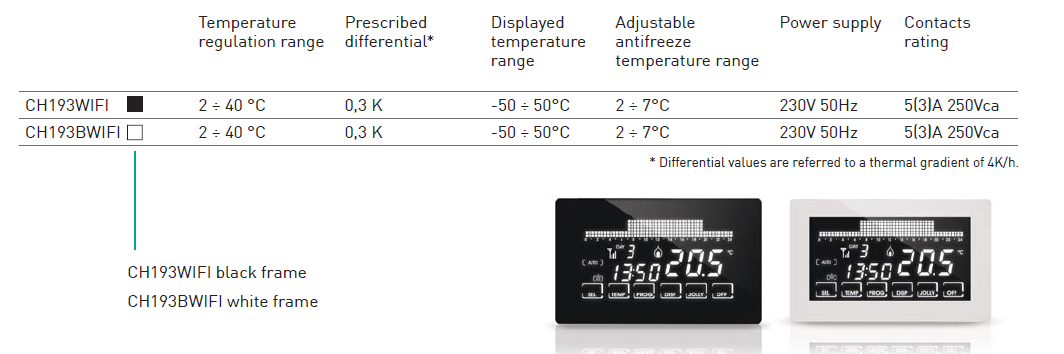

Fantini cosmi CH193WiFi Weekly Programmable Thermostat Product Data Sheet
