Fantini cosmi CH180WIFI TOUCHSCREEN PROGRAMMABLE THERMOSTAT
WIFI CONNECTION
- Weekly program
- To control the heating or cooling systems
- Remote control through APP Intelliclima+ for Smartphone and Tablet
INSTALLATION
CH180WIFI has to be installed on the wall or in a 3 modules or round fl ush mounting box, at about 1.5 meters above the fl oor

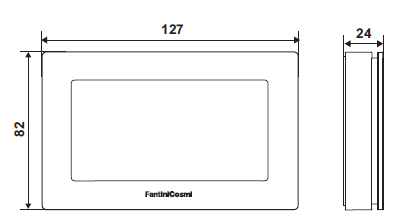

DIMENSIONS mm
HOMOLOGATION AND STANDARD
- Complies with EN 60730-1 standards;
- Responding to Directive 2014/53 / EU (RED).
- ErP Class IV; 2% (Reg. EU 811/2013 – 813/2013
ELECTRIC FEATURES
- Power supply: 230V-50Hz
- Maximum absorbed power 5 W
- Contacts rating 5(3)A 250 Vac
- Type of action 1 B.U. (connection micro-switch)
- Output type 1 relay for heating and cooling systems (3 screw clamps (closed + open)
- Software Class A
- Electric insulation Double insulation
- Pulse voltage 4000V

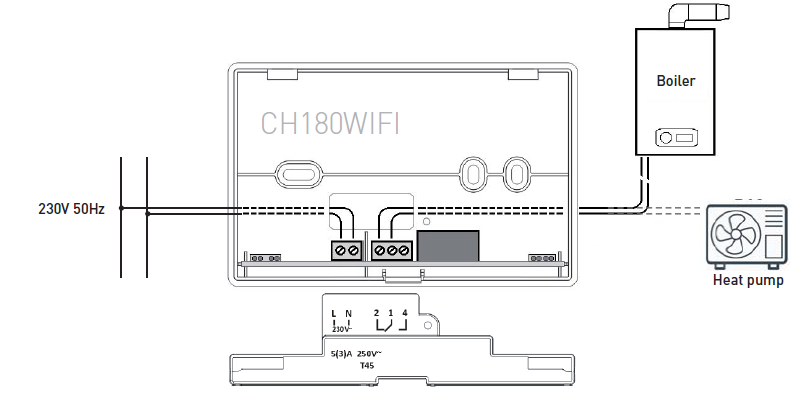

ELECTRICAL CONNECTION
GENERAL FEATURES
- Temperature regulation scale 2 ÷ 40 °C, increment 0.1°C
- Measurement scale/room T display – 50 ÷ + 50 °C
- Differential 0.3 ÷ 5 K
- Thermal gradient 4 K/h
- Maximum room temperature 45°C
- WiFi connection 2.4 GHz (802.11 b/g/n)
- Router communication port 1080
- Maximum radio frequency power transmitted <10mW
- Managements Heating and cooling Summer time / Standard time Remote change over (only with APP) Summer / Winter
- Viewing of energy consumption
- Storage temperature -10°C ÷ +60°C
- Protection degree IP40
- Pollution degree 2
- Display Italian, English, French, Spanish, German, Russian
- Screen lock With password
OPERATION
- CH180WIFI is a weekly programmable thermostat with possibility to remote control from smartphone/tablet with APP “Intelliclima+”.
- Equipped with a temperature sensor with two output relays on board, it simultaneously manages heating and cooling systems.
- A simple and intuitive graph shows energy consumption directly on the white positive backlight LCD of the programmable thermostat.
- CH180WIFI is provided with 6 keys and their functions change according to the displayed description correspondent to each key.
- CH180WIFI programmable thermostat allows different modes of use, called programs:
- MAN Manual program
- AUTO Weekly program
- HOLIDAY Daily program
- JOLLY Temporary program
- OFF Switched off system or antifreeze program

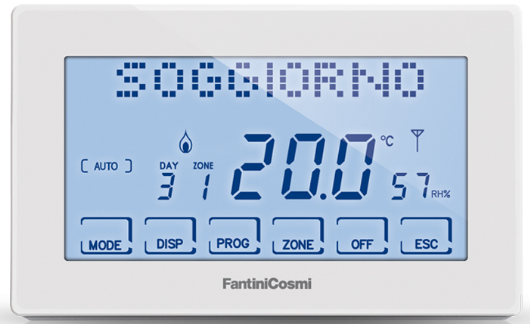

- Antenna
- Day of the week
- Activation status: heating / cooling
- Celsius/Fahrenheit room temperature
- Multifunctional touch icons
- Operating mode
- Graphic portion: messages / temperature timing

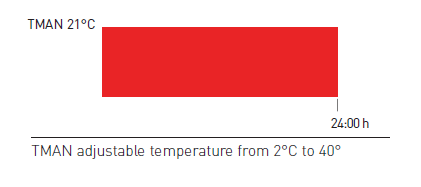

MANUAL PROGRAM
The programmable thermostat adjust the room temperature using the temperature set in 24 hours.

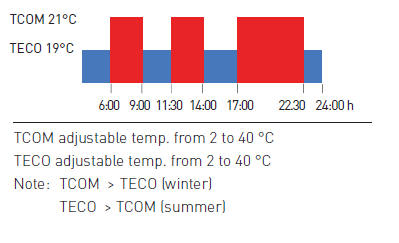

AUTO – WEEKLY PROGRAM
CH180WIFI programmable thermostat manages the set temperatures according to the time programs on the weekly profi le. It is provided with preset winter programs and preset summer programs. In the AUTO mode it is possible to set 2 temperature levels TCOM e TECO (comfort temperature and economy temperature).

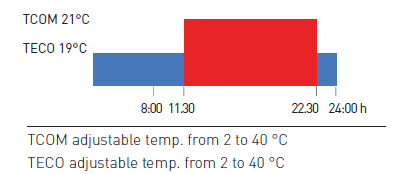

HOLIDAY – SPECIAL DAILY PROGRAM
If you stay at home on a public holiday, you can set an extra daily profi le (“H”). This mode stops when it is selected another operating mode. In the HOLIDAY mode it is possible to set 2 temperature levels TCOM e TECO (comfort temperature and economy temperature).

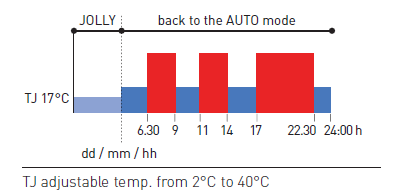

JOLLY – TEMPORARY PROGRAM
The weekly programmable thermostat manages the system using 1 set temperature over a variable period of time (sets the time and day to which the set temperature is to be kept*). At the end of the set time, the programmable thermostat returns to the previously used operation mode. This function can be excluded at any time by setting a different operation mode
OFF – SWITCHED OFF SYSTEM OR ANTIFREEZE PROGRAM
The selected system is switched off. During WINTER mode keeps the temperature antifreeze.
REMOTE PROGRAMMING THROUGH APP
With the Intelliclima+ APP, from a smartphone or tablet, is possible to:
- Switch the heating/cooling system ON or OFF
- Choose ideal temperature at any time and until when it set;
- Check the state of system in real time;
- Create the weekly or daily program or choose from the preset ones;
- Optimise comfort and save energy;
- Monitor the energy consumption of the plant;
- Control several homes and several programmable thermostats within a single home;
- Share the programmable thermostat with multiple users;
EXAMPLE OF INFORMATION FOR HEATING SYSTEM
