Fantini Cosmi CH180K3 WIRELESS PROGRAMMABLE THERMOSTATS
CH180K3
WIRELESS 3-ZONE THERMOREGULATION KIT WITH WIFI CONNECTION
- Preset and ready-to-use kit, for 3 radiators control
- 3-zone temperature control
- To control the heating systems
- Remote control through APP Intelliclima+ for Smartphones and Tablet
- Expansion possibility for the cooling,and dehumidification control system
- Expansion possibility of up to 8 temperature zones
Kit composition
- 1 CH180RFWIFI:weekly wireless programmable thermostat with WiFi connection

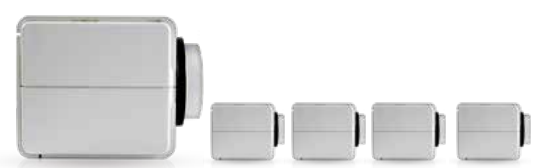

- 3 O60RF: wireless radiator actuators
INSTALLATION
- PROGRAMMABLE THERMOSTAT
- CH180RFWIFI has to be installed on the wall or in a 3 modules or round flush mounting box, at about 1.5 meters above the floor.
- ACTUATOR
- The wireless actuator can be quickly and easily mounted on all common valves with a 30×1.5 thread.
- Scope of delivery: 1 O60RF actuator; 1 coupling ring; 1 adapter set with four parts (additional adapters on page 5); 1 screw and nut; 1 removing tool and this installation manual.
DIMENSIONS mm
- PROGRAMMABLE THERMOSTATS AND ROOM THERMOSTAT
- ACTUATOR
HOMOLOGATION AND STANDARD
- Complies with EN 60730-1 standards;
- Responding to Directive 2014/53 / EU (RED).
- ErP Classification (Reg. EU 811/2013 – 813/2013):
- Classe VIII; 5%
CH180RFWIFI ELECTRIC FEATURES
- Power supply 230V-50Hz
- Maximum absorbed power 5 W
- Contacts rating 5(3)A 250 Vca
- Type of action 1 B.U. (connection micro-switch)
- Output type ■ 1 relay for heating/cooling or humidity systems (3
- screw clamps (closed + open)
- Software A class
- Electric insulation Double insulation
- Pulse voltage 4000V
ELECTRICAL CONNECTION
O60RF ELECTRIC FEATURES
- Power supply 2 alkaline batteries (1.5V AA)
- Battery life up to 2 years under standard conditions of use
CH180RFWIFI GENERAL FEATURES
- Temperature regulation range 2 ÷ 40 °C, increment 0.1°C
- Measurement humidity scale/room T display 30 ÷ 70%, increment 1%
- Measurement temperature scale/room T display – 50 ÷ + 50 °C
- Relative humidity adjustment range 0 ÷ 100%
- Differential 0.3 ÷ 5 K
- Thermal gradient 4 K/h
- Maximum room temperature 45°C
- WiFi connection 2.4 GHz (802.11 b/g/n)
- Radio frequency 868 Mhz
- Maximum radio frequency power transmitted < 10mW
- Managements
- General heating, cooling and humidity control
- Zone heating, cooling and humidity control
- Maximum 8 control zone
- Maximum management of 15 devices directly connected to the CH180RFWIFI
- Maximum management of 114 devices directly connected to network
- Alarm management to exceed minimum and maximum temperature
- System lock management to overcome the minimum and maximum temperature threshold
- Cooling management by activating the dehumidifier through dew point control or via a predetermined UR% threshold
- Summer time / Standard time
- Remote change over (only with APP)
- Summer / Winter
- Auxiliary ON / OFF control for electric users (only with CH175)
- Viewing of energy consumption
- Display showing system fault anomalies
- Correction of the offset of the temperature read
- Possibility to associate the names to all the zones
- Storage temperature -10°C ÷ +60°C
- Protection degree IP40
- Pollution degree 2
- Display Italian, English, French, Spanish, German, Russian
- Screen lock of CH180RFWIFI and the connected CH120RF With password and for display cleaning
CH120RF GENERAL FEATURES
- Temperature regulation range 2 ÷ 40 °C, increment 0.1°C
- Measurement humidity scale/room T display – 50 ÷ + 50 °C
- Measurement temperature scale/room T display 0 ÷ 100%
- Differential 0.3 ÷ 5 K
- Thermal gradient 4 K/h
- Maximum room temperature 45°C
- Radio frequency 868 Mhz
- Maximum radio frequency power transmitted <10mW
- Managements
- Zone heating, cooling and humidity control
- Maximum management of 15 devices directly connected to the CH120RF
- External probe (dew point control, set-point reduction, window sensor)
- Min and max lock setting temperature set-point (winter / summer)
- Display of the status of other devices associated with the CH120RF (useful for starting)
- Storage temperature -10°C ÷ +60°C
- Protection degree IP40
O60RF GENERAL FEATURES
- Radio frequency 868Mhz
- Maximum radio frequency power transmitted <10mW
- Operating temperature 0 ÷ 50°C
- Storage temperature 20 ÷ 70°C
- Shape type white ABS
- Temperature sensor internal
- Standard connectio M30x1.5
- Protection degree IP30
O60RF is compatible with the following thermostatic radiator valves brands:
- BRAND ADAPTER CODE
- Luxor unnecessary
- Honeywell unnecessary
- Oventrop unnecessary
- Caleffi (338, 339, 401, 402, 421, 425, 426, 4001, 4003, 4004, 3380, 455) :309703
- Caleffi 309706
- Danfoss (RA) included
- Danfoss (RAV) included
- Danfoss (RAVL) included
- Watts /Cazzaniga unnecessary
- FAR 309706
- R.B.M. 309706
- Giacomini 309704
- Itap unnecessary
- Herz 309705
- Siemens 309706
CH180T3K5 OPERATION
- CH180RFWIFI pre-set programmable thermostat performs the supervisor functions for the Intellicomfort+ wireless multi-zone system managing 2 zones and communicating with the wireless room thermostatas CH120RF and O60RF wireless actuators for radiators.
- The already preset components are shared as follows:
- zone 1 = 1 CH180RFWIFI + 2 O60RF;
- zone 2 = 1 CH120RF + 1 O60RF;
- zone 3 = 1 CH120RF + 1 O60RF;
- zone 4 = 1 CH120RF + 1 O60RF.
- Thanks to the CH120RF thermostats, which detect the temperature and manage the coupled actuators, the kit guarantees a precise temperature regulation in every zone. With the CH120RF thermostats is also possible to temporarily modify the functional modes of each zone (temperature set-point modification, economy/comfort mode changing, etc.).
- CH180RFWIFI uses a program that allows you to set the temperature and time profiles for each zone.
- On the white positive backlight, LCD touch screen is possible view, through an intuitive graph, the energy consumption of the entire system
- CH180RFWIFI has 6 touch-keys, which function depends on the situation and is described by the symbol that appears on the display.
- CH180RFWIFI programmable thermostat allows different modes of use, called programs:
- MAN Manual program
- AUTO Weekly program
- HOLIDAY Daily program
- JOLLY Temporary program
- OFF Switched off system or antifreeze program
- Activation status: heating, cooling or dehumidification
- Temperatura misurata Celsius / Fahrenheit
- Antenna
- Measured humidity
- Multifunctional touch icons
- Zone
- Day
- Operating mode
- Graphic portion: messages/temperature timing

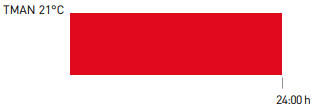

- [ MAN ]
MANUAL PROGRAM: The programmable thermostat adjusts the room temperature using the temperature set in 24 hours.

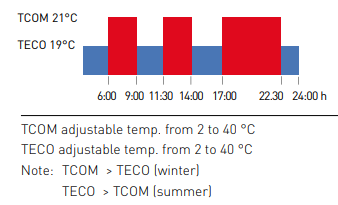

- [AUTO]
AUTO – WEEKLY PROGRAM
CH180RFWIFI programmable thermostat manages the set temperatures according to the time programs on the weekly profile. You can set a different weekly profile for each zone. It is provided with preset winter programs and preset summer programs. In the AUTO mode, it is possible to set 2 temperature levels TCOM e TECO (comfort temperature and economy temperature).

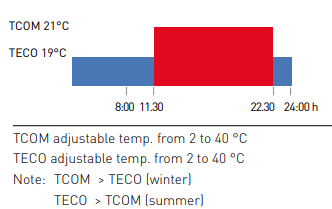

- [ HOLIDAY ]
HOLIDAY – SPECIAL DAILY PROGRAM
If you stay at home on a public holiday, you can set an extra daily profile (“H”) different for each zone. This mode stops when it is selected another operating mode. In the HOLIDAY mode it is possible to set 2 temperature levels TCOM e TECO (comfort temperature and economy temperature).

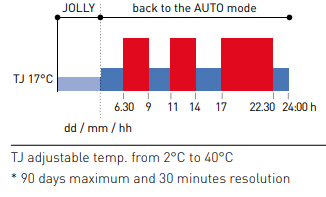

- [JOLLY]
JOLLY – TEMPORARY PROGRAM
The weekly programmable thermostat manages the system using 1 set temperature over a variable period of time (sets the time and day to which the set temperature is to be kept*). At the end of the set time, the programmable thermostat returns to the previously used operation mode. This function can be excluded at any time by setting a different operation mode.
- OFF – SWITCHED OFF SYSTEM OR ANTIFREEZE PROGRAM
The selected system is switched off. During WINTER mode keeps the temperature antifreeze. - CH180T3K5 kit can be extended for the cooling and humidification functioning managing up to 8 temperature zones through the Fantini Cosmi configurator ref. 1590880, the Fantini Cosmi thermostats ref. CH120RF, the boiler actuators or zone valve ref. CH175 and the actuators ref. O60RF to control more radiators.

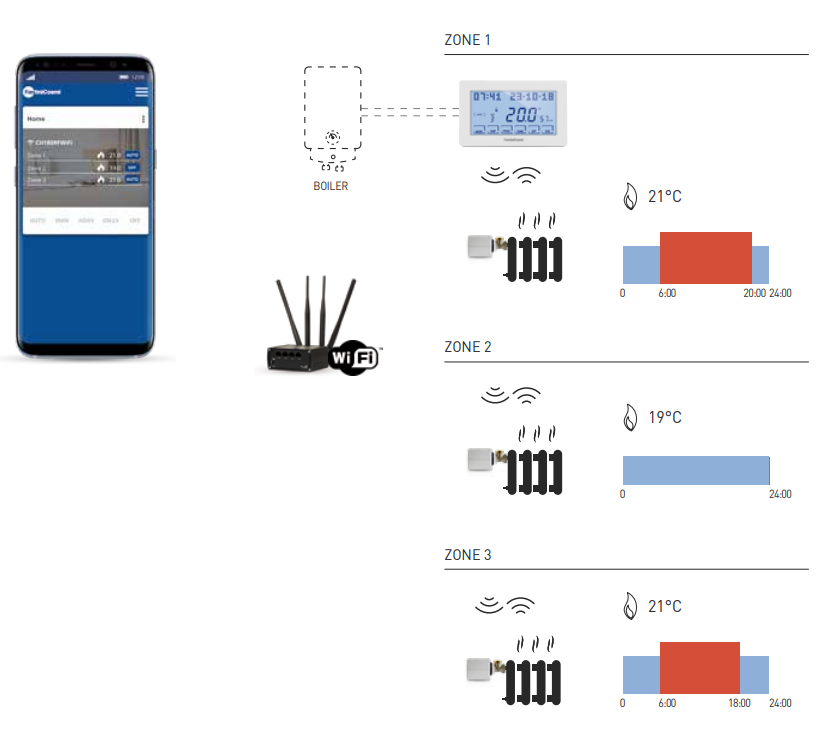

CH180K2 KIT SYSTEM EXAMPLE
SYSTEM WITH RADIATORS
- CH180RFWIFI “MASTER” programmable thermostat directly controls the O60RF radiator actuators.
- These actuators receive the current set-point from the programmable thermostat and adjust the temperature in 2 different ways:
- O60RF actuator coupled with the CH180RFWIFI (zone 1) execute the regulation according to the temperature detected by the programmable thermostat;
- O60RF actuator coupled to a zone without thermostat (zone 2 and 3) execute the regulation according to the temperature detected by its internal sensor.
CH180T3K5 KIT SYSTEM EXAMPLE
SYSTEM WITH RADIATORS
- CH180RFWIFI “MASTER” programmable thermostat directly controls the O60RF radiator actuators (zone 1);
- In the other zones it sends the hourly profiles to the coupled CH120RF thermostats. The thermostats send the commands to the O60RF actuators mounted on the radiators, according to the detected room temperature.

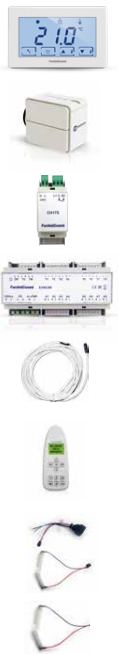

ACCESSORIES
Il kit CH180K2 è preconfigurato e pronto all’uso, può essere tuttavia espandibile con i seguenti accessori:
- CH120RF
WIRELESS TOUCHSCREEN ROOM THERMOSTAT - O60RF
WIRELESS RADIATOR ACTUATOR - CH175
1 RELAY WIRELESS ACTUATOR - EVWC8R
WIRING CENTER SUITABLE FOR 8 CHANNELS - EC19
FLOOR TEMPERARURE PROBE - 1590880
CONFIGURATOR - 1598089
STAND-ALONE POWER SUPPLY KIT - 1598090
POWER SUPPLY KIT FOR CH120 -CH180 SERIES
