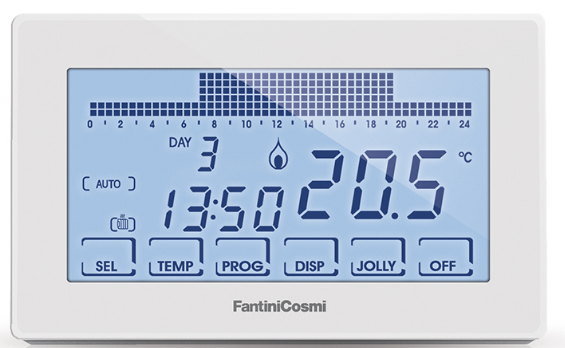

Fantini cosmi CH180-230V Touchscreen Weekly Programmable Thermostat

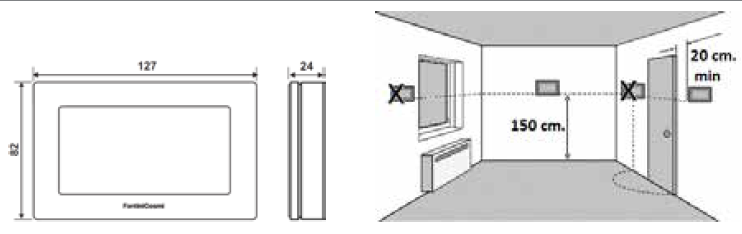

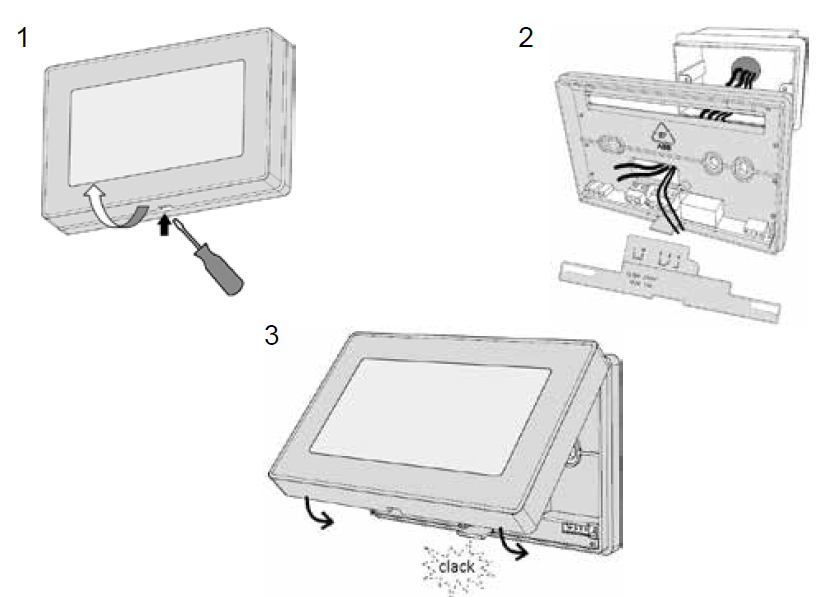

Installation
The installation must be done by qualified personnel in accordance with the prescriptions concerning the electric equipment installation. Before making any connections or operating the device, ensure that the power line is disconnected. Carry out the electrical connections according to the wiring diagram.

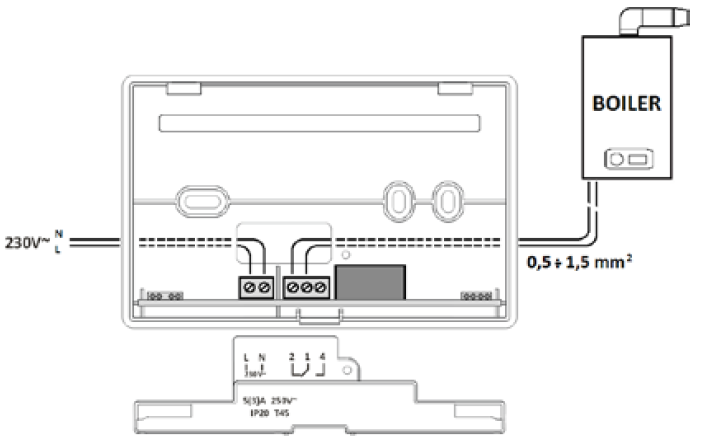

Wiring connection example

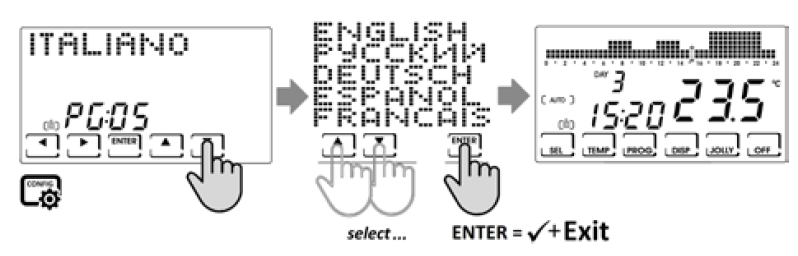

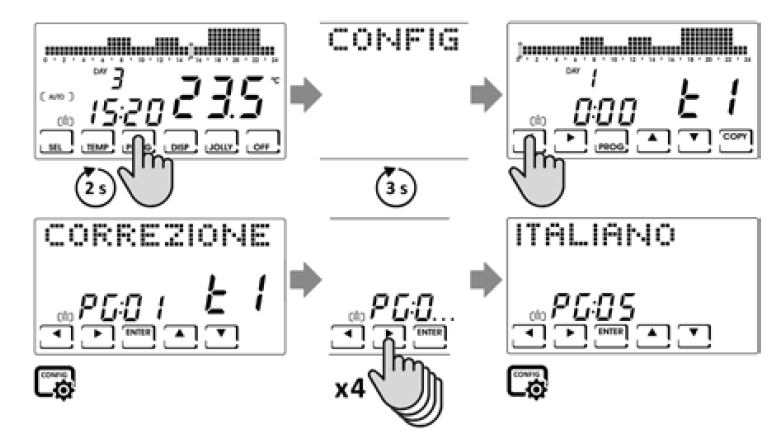

Menu language selection

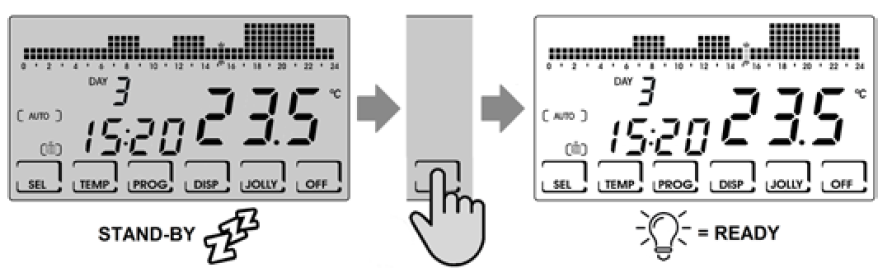

Unlock stand-by

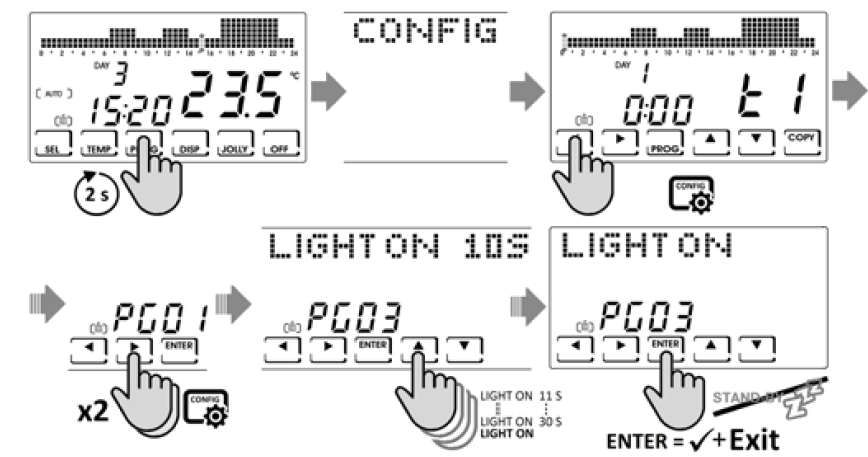

Stand-by deactivation
Heating or cooling system on indication

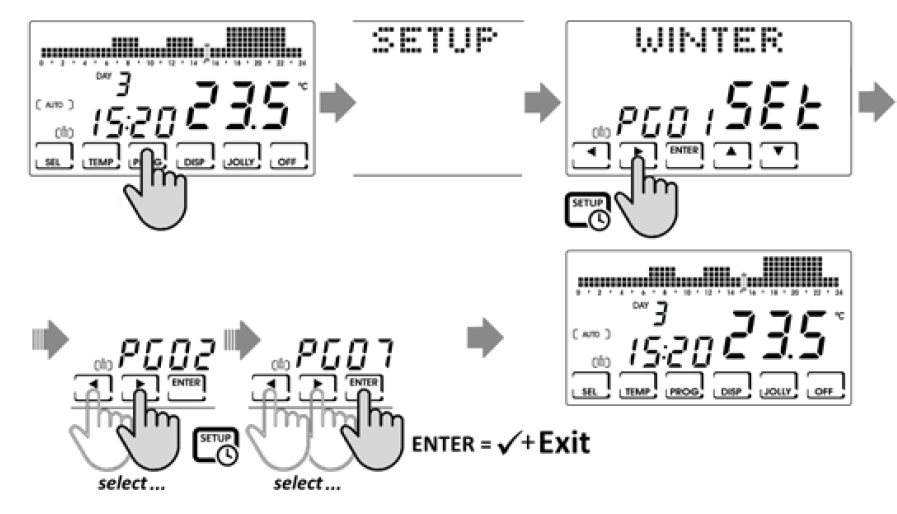

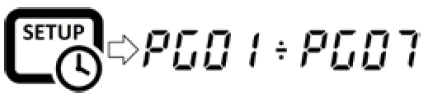

The weekly thermostat has an index menu to change the main parameters (winter, summer, time, date etc.)

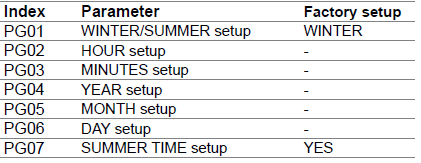

Description of the “settings” menu

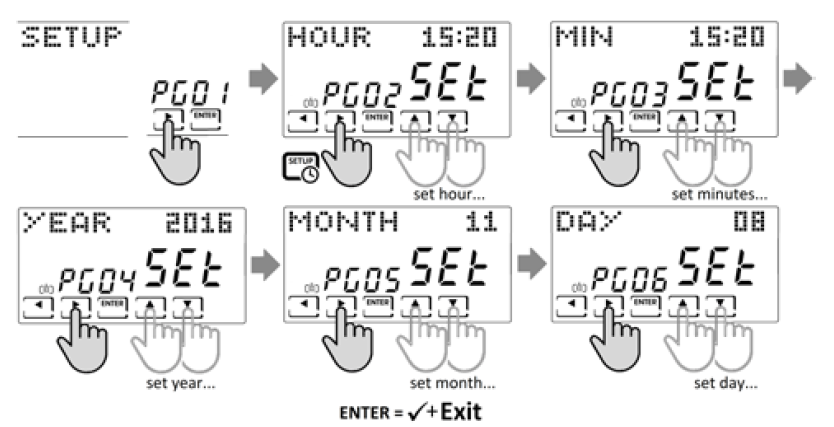

Time and date setup

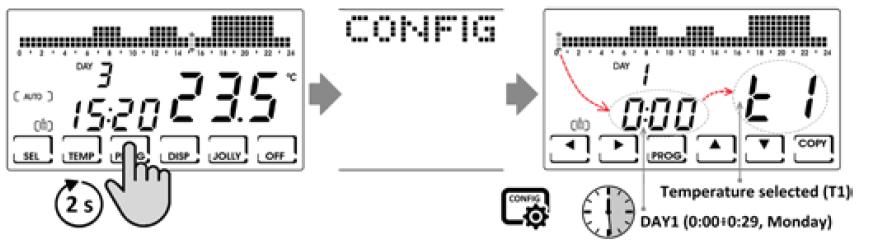

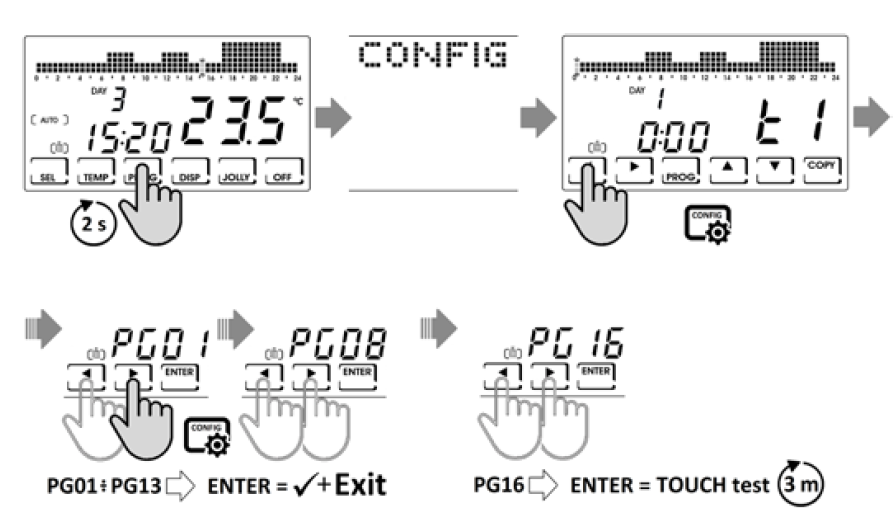

Configuration menu (CONFIG)
Daily programs and some functional configurations are edited in the “configuration” menu.

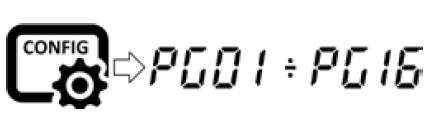

Description of the “configurations” menu

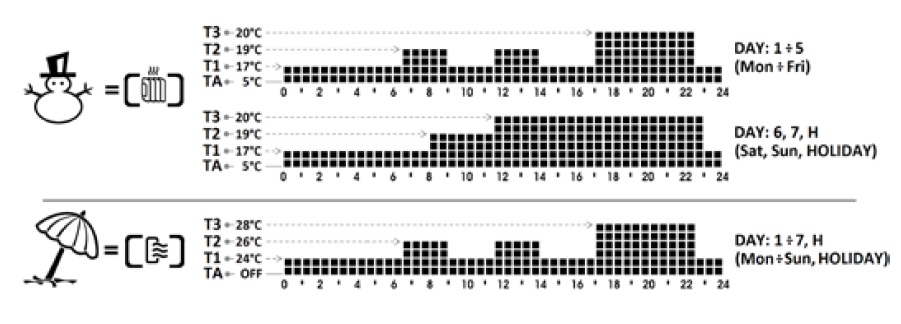

Auto” and “Holiday” programs (Factory setup)
T1-T2-T3-TA temperatures setup

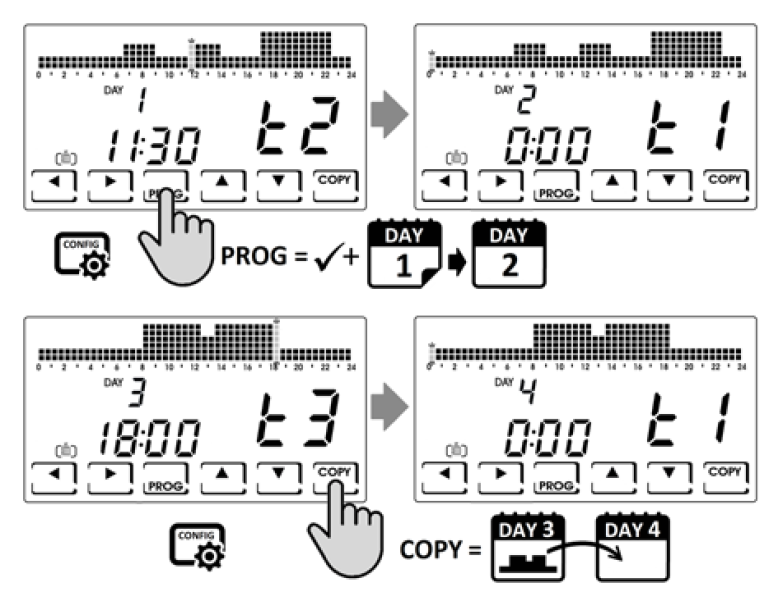

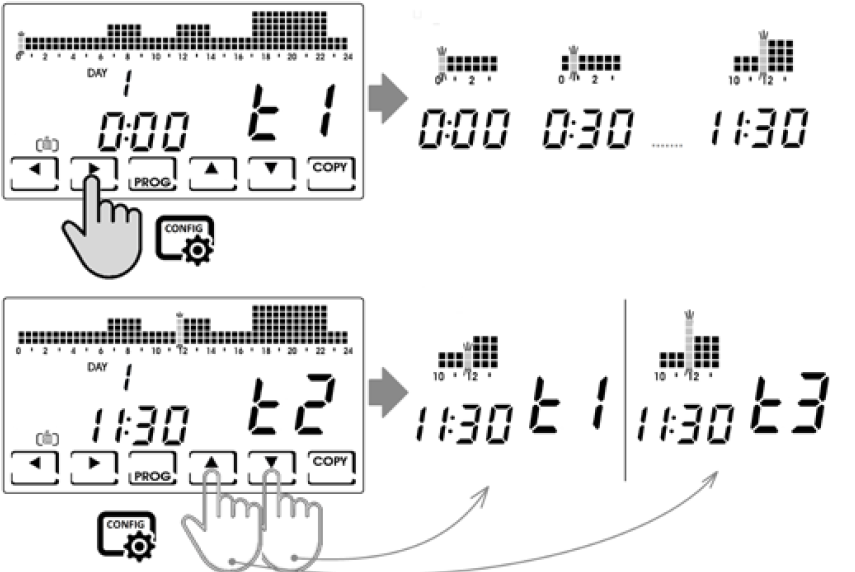

“AUTO” program editing
Temporary program “JOLLY” (range: 1÷240 hours)

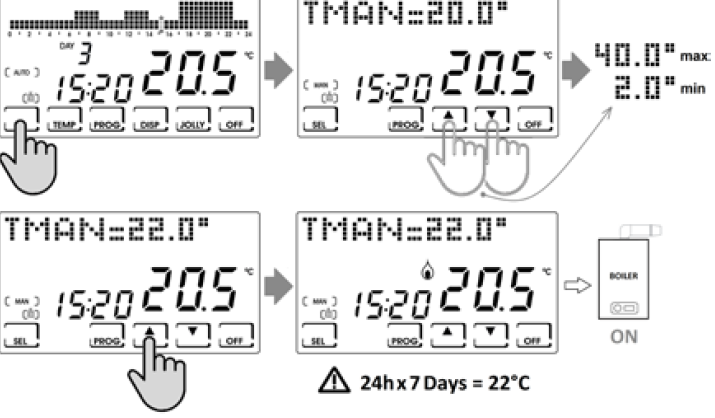

“MAN” function for manual operation
OFF” function for heating/cooling shutdown

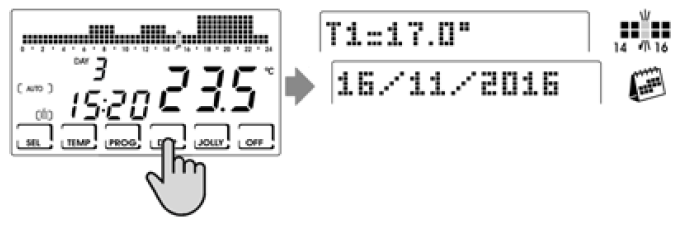

Alternative displaying on LCD
Screen lock for cleaning

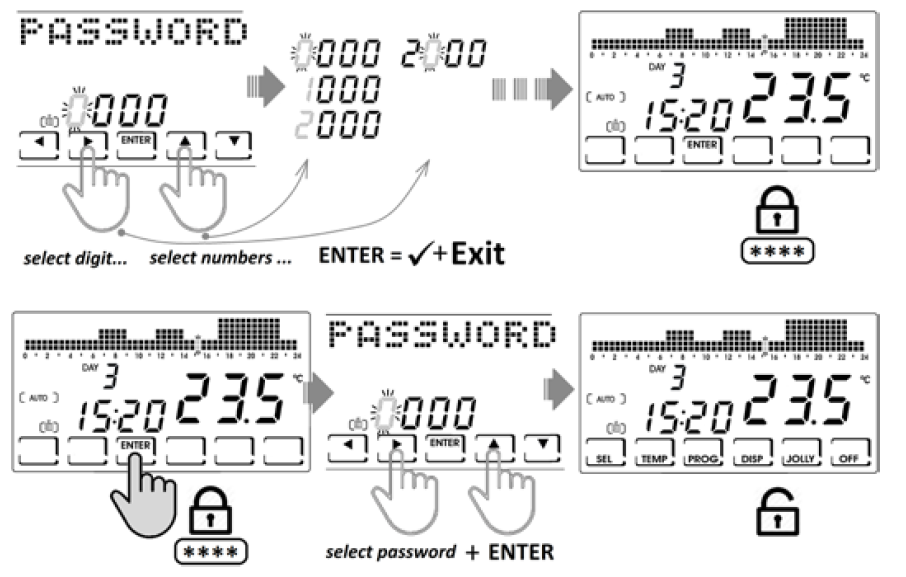

Keys lock and unlock with a password
Technical characteristics
- Temperature regulation range: 2÷40 °C, by step 0,1°C
- Range of temperature indication: -50 ÷ +50 °C
- Powered by: 230V 50Hz – 5,5VA max
- Relay contact rating: 5(3)A 250V~ – free voltage type
- Action type: Micro-disconnection 1BU
- Software: A class
- Reference thermal gradient: 4K/h
- Max ambient temperature operating: 45°C
- Electrical insulation: double
- Protection degree: IP40
- Pollution degree: 2
- Impulse voltage: 4000V
- Compliance: EN 60730-1 and second parts.
- ErP classification: ErP Class IV; 2% (EU Reg. 811/2013 – 813/2013)
Disposal of Products
The crossed-out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centers. The black bar indicates that the product was placed on the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programs available in your country, please contact your local city office or the shop where you purchased the product
FANTINI COSMI
- Via dell’Osio, 6 20090 Caleppio di Settala, Milano – ITALY
- Tel. +39 02 956821
- Fax +39 02 95307006
- [email protected]
