Fantini cosmi C44 Electronic Room Thermostat
Introduction
Flush-mounting electronic room thermostat suitable to regulate the temperature in the heating and cooling installations, civil and industrial.

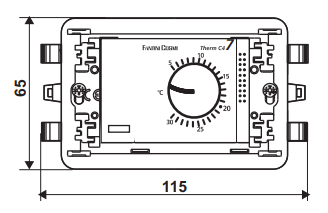

Dimensions (mm)
ELECTRICAL FEATURES
- Power supply 230V 50Hz.
- Contact rating 5(3)A 250Vac.
- Voltage-free switching contact.
- Micro disconnection (1B).
HOMOLOGATION AND STANDARDS
- Complies with EN 60730-2-9 standards
- ErP Class IV; 2% (Reg. EU 811/2013 – 813/2013)
INSTALLATION
- Flush-mounting in 3-module 503 embedded boxes by means of 2 screws (supplied).
- Connection with the user with two wires and terminals 1-2 and L-N terminals connection to circuit’s power source – 230V 50Hz.
- Can be applied, without any connection accessory, the following plates
COMPATIBLE PLATES
- BTICINO Living International, Living di transizione
- BTICINO Light, Light Tech
- BTICINO Living-light round LNA and square LNB
- BTICINO Axolute
- VIMAR Idea, Rondò and Plana
- GEWISS Playbus e Playbus Young
- AVE sistema 45, Noir, Blanc
- AVE Banquise, Ave Yes
- Siemens Delta Futura Graphit
- Legrand Vela square and round
OPERATION
When the temperature increases: 1-2 opens, 1-4 closes. Operation modes: COMFORT, ECONOMY e OFF.
3 set temperatures:
- COMFORT
- ECONOMY
- ANTIFREEZE
- COMFORT mode keeps constant prescribed COMFORT temperature during the day and night.
- ECONOMY mode keeps constant prescribed ECONOMY temperature during the day and night.
- OFF operation mode can be used as “antifreeze” mode or to shutdown completely the system (OFF).
- COMFORT and ECONOMY operation modes are selected through the key
- OFF/ANTIFREEZE operation modes are selected through the key
Prescribed temperatures:
- COMFORT operates 1 prescribed temperature that can be set from 2°C to 40°C .
- ECONOMY operates 1 prescribed temperature that can be set from 2°C to 40°C .
- OFF temperature set from 0 to 7°C to ensure frost protection function.
- SUMMER-WINTER control by pressing simultaneously the keys
- Possibility to visualize Celsius or Fahrenheit temperature values, pressing simultaneously the keys
FEATURES
Wide display with graphic icons combined with frontal keys for choosing the operation mode. Maximum ambient temperature 45°C.
ACCESSORIES
Adapters for 75×45 plates (standard, included in the package).
