Etop HT-22 Programmable Floor Heating Thermostat User Manual

E TOP LOGO

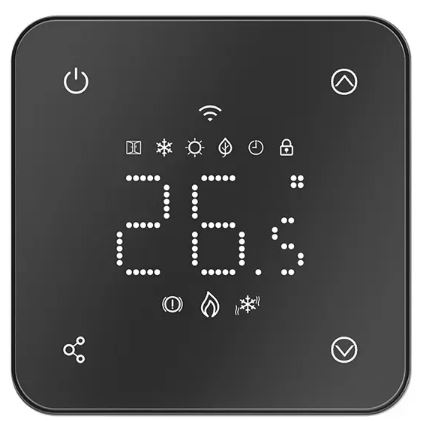

Etop HT-22 Programmable Floor Heating Thermostat

Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-7

SPECIFICATION

  • Warranty: 2 years
  • Material: Anti-flammable PC +ABS
  • Application: Apartment, Gas Boiler Heating System
  • Model: HT-22
  • Thermostat: 230Vac
  • Programmability: Weekly Programmable
  • Setpoint: 5~35°C
  • Accuracy: ±1°C
  • Design Style: EUROPEAN
  • Type: Floor Heating Parts
  • Current Load: 3A(water Heating) or 16A (Electric)
  • Backlight: White
  • Sensor: NTC10K
  • Optional Function: Wifi or Zigbee
  • Brand: Etop

INTRODUCTION

The Etop HT-22 Programmable Floor Heating Thermostat is a device designed for controlling the temperature of electric floor heating systems. It has a sleek and modern design, and it is easy to install and use. One of the key features of this thermostat is its programmability. Users can set up a 7-day schedule with different temperature settings for each day of the week. This allows for efficient and customized heating based on daily routines and preferences.

The HT-22 also has a variety of other useful features, including a large backlit LCD display for easy reading, a built-in sensor to measure the floor temperature, and the ability to switch between heating and cooling modes. Additionally, the thermostat has a child lock function to prevent accidental changes, and it can be set to display temperature readings in either Celsius or Fahrenheit. Overall, the Etop HT-22 Programmable Floor Heating Thermostat is a reliable and user-friendly device that can help users save energy and improve their comfort levels in their homes or offices.

WHAT IS IN THE BOX

  • Thermostat
  • Screws
  • User Manual
  • External Sensor

Thermostat for Smart Underfloor Heating

Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-1The water underfloor heating system is intended for use with this intelligent underfloor heating thermostat. By comparing the measured temperature to the specified temperature, it can be used to control the on/off of a heat pump, thermal actuator, or gas boiler. This smart programmable thermostat is compatible with all ZigBee gateways from Tuya because it has an integrated Zigbee or wifi module from Tuya. Additionally, it allows for heating control from any location at any time.

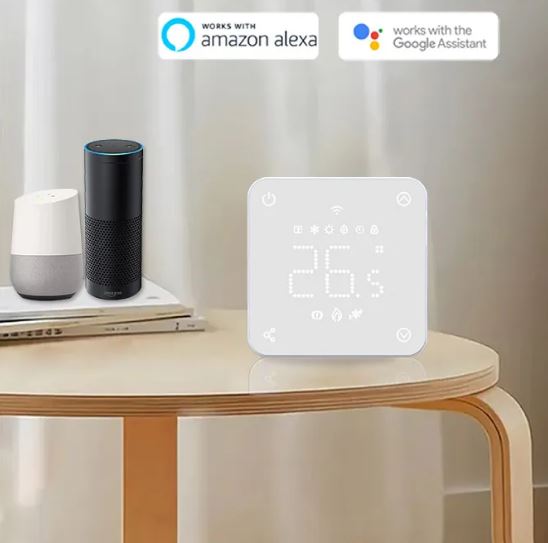

Alexa

Alexa set the living room temperature to 26.5°C ”

Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-3

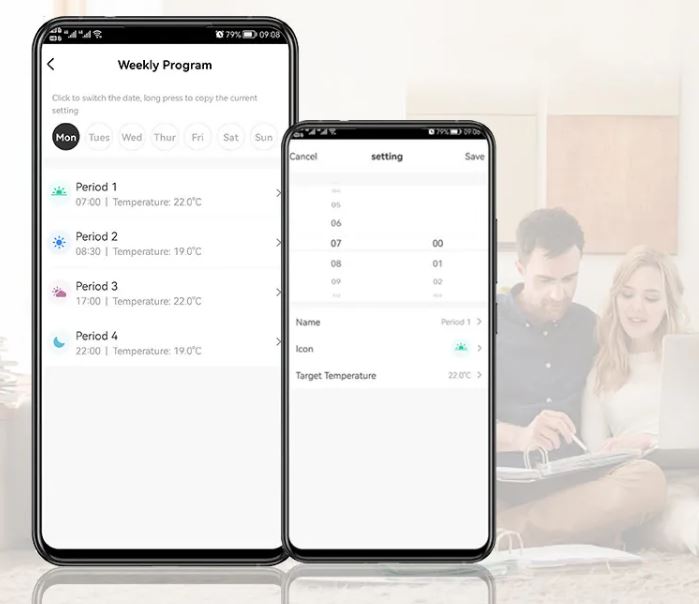

Set individual schedules
Create a heating schedule each day freely

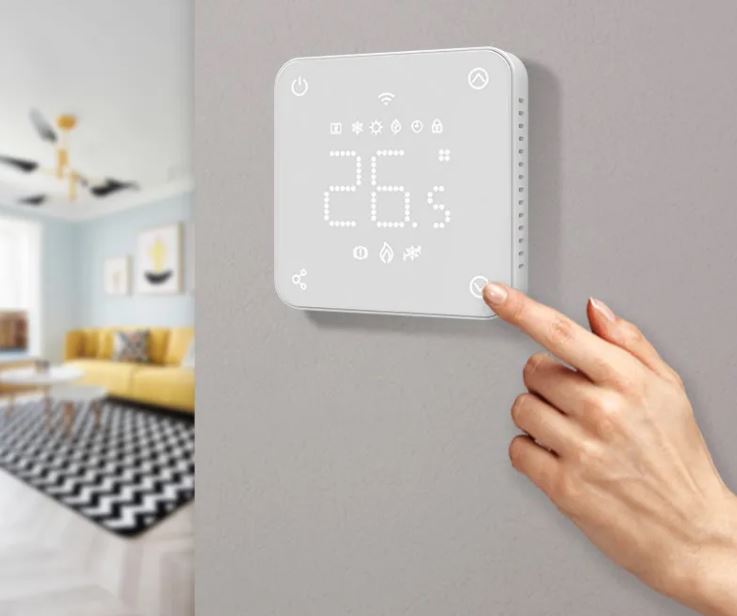

Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-4Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-5

Gas Boiler Thermostat

Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-6

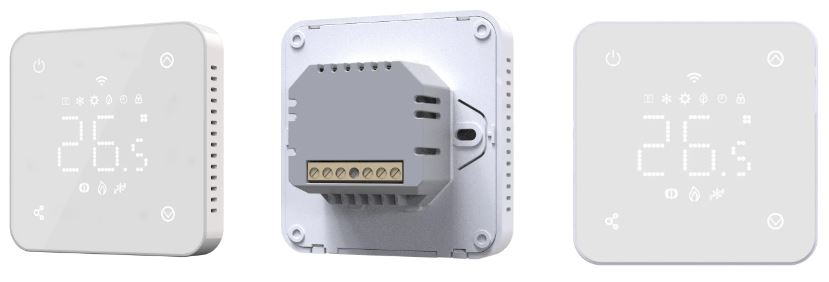

Detail Pictures

PET Bottle Blowing Semi-Automatic Machine Machine for making bottles Machine for molding bottles PET plastic containers and bottles of any form can be made using a PET bottle manufacturing machine.

Etop-HT-22-Programmable-Floor-Heating-Thermostat-FIG-7

FEATURES

The Etop HT-22 Programmable Floor Heating Thermostat is a modern and convenient device for controlling floor heating systems. Here are some of its key features:

Programmable:
The thermostat allows you to set a heating schedule for every day of the week, with up to 6 temperature periods per day. This feature allows you to save energy and money by adjusting the temperature according to your daily routine.

Large Display:
The thermostat has a large, backlit display that makes it easy to read the current temperature and settings.

Compatibility:
The thermostat is compatible with most floor heating systems, including electric and water-based systems.

Temperature Accuracy:
The thermostat is highly accurate, with a temperature range of 5°C to 40°C and an accuracy of +/- 0.5°C.

Easy Installation:
The thermostat is easy to install and comes with clear instructions and a user manual.

Lock Function:
The thermostat has a lock function that prevents unauthorized changes to the settings.

Sensor Probe:
The thermostat includes a floor sensor probe that measures the temperature of the floor to ensure accurate and efficient heating.

Holiday Function:
The thermostat has a holiday function that allows you to set a lower temperature when you are away from home for an extended period of time.

Manual Override:
The thermostat has a manual override function that allows you to adjust the temperature manually if needed

HOW TO USE

The Etop HT-22 programmable floor heating thermostat is a device used to control the temperature of your electric underfloor heating system. Here are the steps on how to use the thermostat:

  1. Set the time and date: Before using the thermostat, you need to set the current time and date. To do this, press the “SET” button, and then use the arrow buttons to adjust the time and date.
  2. Program the thermostat: The HT-22 allows you to set up to six different temperature periods per day. To program the thermostat, press the “PROG” button, and then use the arrow buttons to set the desired temperature and time for each period.
  3. Set the temperature: To manually adjust the temperature, press the “TEMP” button, and then use the arrow buttons to increase or decrease the temperature.
  4. Override the program: If you want to override the programmed temperature settings, press the “HOLD” button. The thermostat will maintain the temperature at the current setting until you manually adjust it or until the next programmed period begins.
  5. Lock the thermostat: To prevent unauthorized changes to the thermostat settings, you can lock the device by pressing and holding the “SET” and “TEMP” buttons simultaneously for three seconds.
  6. Troubleshooting: If you encounter any issues with the thermostat, such as incorrect temperature readings or the device not functioning properly, consult the user manual for troubleshooting steps.

HOW TO INSTALL

Installing the Etop HT-22 programmable floor heating thermostat typically involves the following steps:

  1. Turn off the power: Turn off the power supply to the heating system at the circuit breaker.
  2. Remove old thermostat: If there is an old thermostat in place, remove it from the wall by unscrewing it from the mounting plate and disconnecting the wires.
  3. Mount the base plate: Attach the base plate of the Etop HT-22 thermostat to the wall using screws and anchors (if necessary). Be sure to level the plate.
  4. Connect wires: Connect the wires from the heating system to the corresponding terminals on the thermostat’s base plate. The wiring instructions will vary depending on the heating system and thermostat model, so consult the manufacturer’s instructions for guidance.
  5. Mount thermostat: Once the wires are connected, snap the thermostat onto the base plate and secure it in place.
  6. Turn on power: Turn on the power supply to the heating system at the circuit breaker.
    Program the thermostat: Follow the manufacturer’s instructions to program the thermostat according to your preferences and the needs of your heating system.
  7. Manual Override: The thermostat has a manual override function that allows you to adjust the temperature manually if needed

FAQS

Q: What type of floor heating system is the HT-22 compatible with?
A: The HT-22 is compatible with most electric floor heating systems, including radiant heating systems, underfloor heating systems, and more.

Q: Is the HT-22 programmable?
A: Yes, the HT-22 is fully programmable, allowing you to set different temperatures for different times of the day, days of the week, and more.

Q: Can the HT-22 be controlled remotely?
A: Yes, the HT-22 can be controlled remotely using the Etop app on your smartphone or tablet.

Q: Does the HT-22 support voice control?
A: No, the HT-22 does not support voice control.

Q: Is the HT-22 easy to install?
A: Yes, the HT-22 is easy to install and comes with a detailed user manual to guide you through the installation process.

Q: What is the maximum load capacity of the HT-22?
A: The maximum load capacity of the HT-22 is 16A, which is sufficient for most electric floor heating systems.

Q: Does the HT-22 come with a warranty?
A: Yes, the HT-22 comes with a 2-year warranty from the manufacturer.

Q: Can the HT-22 be used in commercial buildings?
A: Yes, the HT-22 can be used in commercial buildings, as long as the electric floor heating system is compatible with the thermostat and the load capacity is within the specified limits.

Q: Is the HT-22 compatible with 240V electric systems?
A: Yes, the HT-22 is compatible with 240V electric systems.

Q: Can the HT-22 be used for cooling systems?
A: No, the HT-22 is designed for heating systems only and cannot be used for cooling systems.
