ESI ESRTP5 Programmable Room Thermostats Installation Instructions

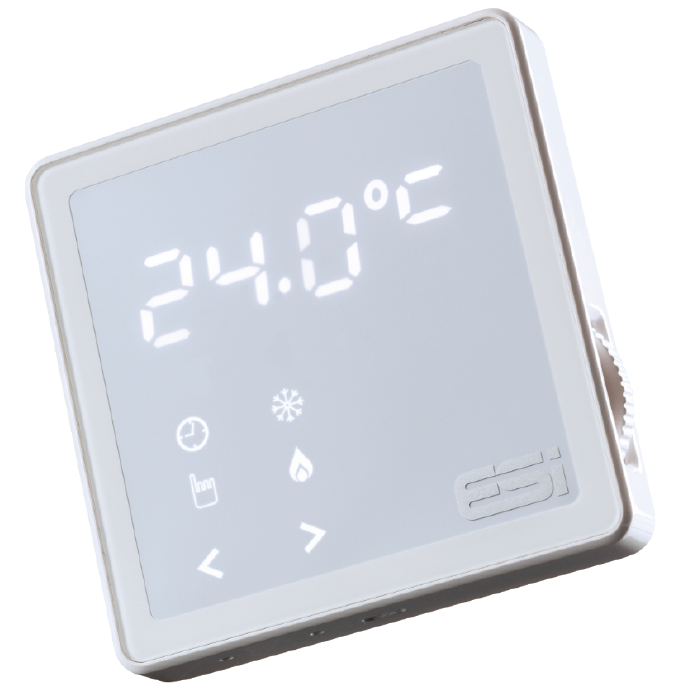

ESI ESRTP5 Programmable Room Thermostats

N.B Please note, when first powered or in the event of a power loss the time will be flashing and the time and date will need to be set. Use the dial to adjust the hour then press >. Repeat this to set the minute, day date, and month date. Next set the year by using the dial to adjust the first digit then press > and repeat for all 4 digits. It is recommended to leave the thermostat to climatize for 40 minutes before user operation.

Quick Operating Guides

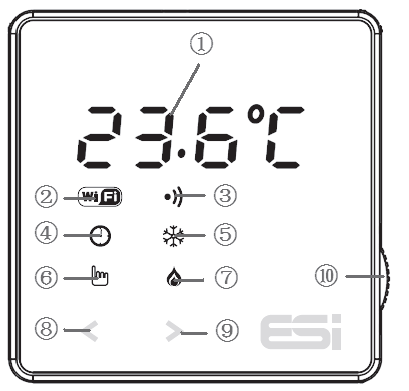

Display and Button Functions

Quick Command Guide

Setting the Time and Date (tINE)
N. B Please note, when first powered or in the event of a power loss the time will be flashing and the time and date will need to be set. Follow steps 2 – 6 to set the time on the first setup. Changes between summer and winter time are handled automatically by the unit.

1. Press and hold > until the display shows tINE then press >.
2. Turn the dial to adjust the hour then press >.
3. Turn the dial to adjust the minute then press >.
4. Turn the dial to adjust to the current day then press >.
5. Turn the dial to adjust to the current month then press >.
6. Turn the dial to adjust to the current year then press >.
7. Turn the dial to select between 12 or 24-hour format. Press > to confirm and return to step 2. Press < to return to the previous menu or leave for 1 minute to automatically return to the home -screen.

Operation Modes
Operation Modes: AUTO, MAN, OFF Press > in the home screen to choose operation mode.

AUTO

• In Auto mode, choose All Day mode. See section 3.2 for details.
• In Auto mode, choose Holiday mode. See section 3.3 for details. – In Auto mode, if All Day mode or Holiday mode is not selected, the Auto mode will be used. In Auto mode, the thermostat will work as per the user’s previous programming setting. Please see section 5 for details.

Temporary manual override of the set temperature
In Auto mode, the user can turn the dial to adjust the set temperature as below:-

1. On the home screen, turn the dial to temporarily adjust the temperature
2. Press > to confirm and return to the home screen. The display will
   alternate between the current room temperature and the time left until the next programmed event. The temporary override will end when the next programmed event starts.

Temporary set temperature range: 5oC – 35oC. Default: 21oC
N.B: The temporary set temperature will not replace the original program event’s set temperature. When the program event ends, it will return to the default heating program automatically.

MAN
Permanent manual override of the set temperature.

1.  In Homescreen, press > to select MAN
2.  Turn the dial to adjust the temperature
3.  Press > to confirm the setting and return to the home screen Permanent set temperature range: 5oC – 35oC. Default: 21oC

OFF
Turn the heating off permanently.

1. In Homescreen, press > to select OFF When the room temperature drops to 5oC, heating is turned on; when the room temperature reaches 7oC, heating is turned off.

All Day Mode (AL)

1. In-home screen, press > to select Auto mode
2. Press < once to enter the All Day mode temperature setting and the screen will display AL
3. Turn the dial to adjust the set temperature
4. Press > to confirm the set temperature and automatically return to the Home screen. The display will alternate between AL and the current room temperature

To adjust the temperature in All Day mode, turn the dial to the desired temperature then press > to confirm and automatically return to the home screen. Press < in the home screen to exit All Day mode and return to Auto mode. Heating under All Day mode will be on until 23:59 that day. At 23:59, the unit will exit All Day mode and return to Auto mode. Set temperature range: 5oC – 35oC. Default: 21oC

Holiday Mode (HOLI)

1. In-home screen, press > to select Auto mode
2. Press and hold < for 3 seconds until HOLI is displayed then release
3. Turn the dial to adjust holiday days, and press > to confirm
4. Turn the dial to adjust the set temperature, press > to confirm, and return to the home screen. The display will alternate between: HOLI – Days(Holiday) – HOLI – Current room temperature

To adjust the settings in Holiday mode, turn the dial to adjust the holiday days, and press > to confirm. Then turn the dial to adjust the set temperature, press > to confirm, and return to the home screen. Press < in the home screen to exit Holiday mode and return to Auto mode. Holiday mode days setting range: 1 – 99 days. Default: 1 day Set temperature range: 5oC – 35oC. Default: 7oC
N.B: The Days(Holiday) will numerically countdown. Once the countdown has finished normal operation will resume. It may be advisable to set the Holiday mode 1 day less so the house is back up to temperature for your return.

Main Menu
In the home screen, press and hold > for 3 seconds then release to enter the main menu. Use the dial to choose between tINE, ProG, CoPy, tEcH, and rESE. Press > to enter the desired setting. Press < to
return to the Home screen.

Copy Function (CoPy)
The unit is provided with a copy function which allows an adjusted program to be copied to another day.
N.B. This function only works in 7 Day setting. To operate the copy function:-

1. Press and hold > until the display shows tINE. Turn the dial until the display shows CoPy then press >
2. Use the dial to select the day to be copied then press > to confirm
3. Use the dial to select the day to be copied to then press >. The display will show SAuE to confirm and then return to step 2.
4. Press < to return to the previous menu or leave for 1 minute to automatically return to the home screen

Backlight On/Off (LIGH)
The backlight can be turned permanently on/off.

1. Press and hold > until the display shows tINE. Turn the dial until the display shows LIGH then press >
   Use the dial to choose between turning the light permanently ON or OFF. When OFF, the LED will display only with user interaction and turn off again when there is no operation for 2 minutes. Press > to confirm and return to the previous menu LIGH setting range: Off/On. Default: Off
   N.B. It is recommended to leave this setting in the default OFF mode as heat generated by the thermostat’s power supply and LED will affect temperature measurement. A deviation of up to 3.5°C may occur, which will be calibrated automatically by the unit within 30 minutes of first connecting the thermostat. It is recommended to leave the thermostat to climatize for 40 minutes before user opera-tion. If set permanently ON, the light will automatically switch to a lower light setting and be dimmer.

 Resetting the Unit (rESE)
Resetting the unit will return the thermostat to the default setting. The time, date, and landlord service settings will all be maintained.

1. Press and hold > until the display shows tINE. Turn the dial until the display shows rESE then press >
   The display will show – – – -. Press > again to confirm and the display will show LOAd. If the reset is successful, the unit will return to the home screen after 2 seconds. If the reset is
   unsuccessful, the unit will display FAIL. Either press > to attempt again or press < to return to the previous menu

Programme Settings (ProG)

Factory Pre-Set Programme
This unit has been designed to be a simple-to-use thermostat, requiring minimal user intervention with a pre-programmed heating profile. The pre-set heating times and temperatures will suit most people (see table below). Operation setting range: 5/2 day, 7 days, 24 Hours. Default: 5/2 Day Events setting range: 6 events or 4 events. Default: 6 events

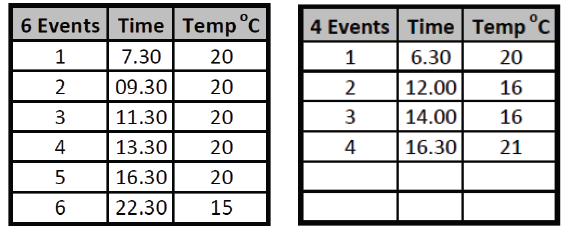

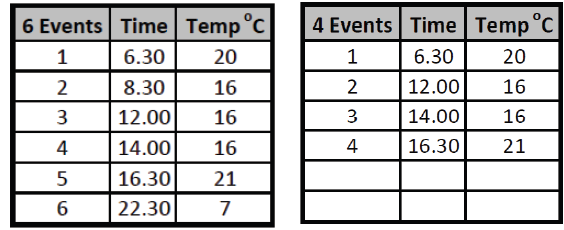

Pre-Set Temperatures: 5/2 Day
Mon-Fri pre-set time and temperature settings

Sat & Sun pre-set time and temperature settings

Pre-Set Temperatures: 7 Day
In 7 day setting, the pre-set settings are the same as the 5/2 Day program.

Pre-Set Temperatures: 24 Hours
In 24hr setting, the pre-set settings are the same as Mon-Fri of the 5/2 Day program.

Setting the Operation Mode (5/2 day, 7 days, 24hr) (ProG)

1. Press and hold > for 3 seconds until the display shows tINE. Turn the dial until the display shows ProG then press >
2. Use the dial to move between 24hr, 7 days or 5/2 day operation. 24 hr operation is shown by 24Hr 7 day operation is shown by 7day 5/2 day operation is shown by 5-2d
3. Press > to set the program (see section 5.3 for details) or press < to return to the previous menu or leave for 1 minute to automatically return to the home screen

Setting the Programme (ProG)
5/2 Day

1. Choose 5/2 day operation (see 5.2 for details). Then press >
2. Turn the dial to select the days to program, either 1-5 for weekdays or 6-7 for weekends then press >
3. Turn the dial to choose the program (P1-P6). Then press > to enter the time setting
4. Turn the dial to adjust the time (10 minutes increments). Then press > to enter the temperature setting
5. Turn the dial to adjust the temperature (increments of 0.5°c). Then press > to save and return to program choice (P1-P6)
6. Repeat steps 3-5 for all time and temperature programs. Then press < to return to step 2. Repeat steps 2-6 until all desired days have been programmed then press < to return to the previous menu or leave for 1 minute to automatically return to the home- screen

 7 Day

1. Choose a 7-day operation (see 5.2 for details). Then press >
2. Turn the dial to select the day to program (Mon-Fri) then press >
3. Turn the dial to choose the program (P1-P6). Then press > to enter the time setting
4. Turn the dial to adjust the time (10 minutes increments). Then press > to enter the temperature setting
5. Turn the dial to adjust the temperature (increments of 0.5°c). Then press > to save and return to program choice (P1-P6)
6. Repeat steps 3-5 for all time and temperature programs. Then press < to return to step 2. Repeat steps 2-6 until all desired days have been programmed then press < to return to the previous menu or leave for 1 minute to automatically return to the home- screen

24 Hour

1. Choose 24-hour operation (see 5.2 for details). Then press >
2. Turn the dial to choose the program (P1-P6). Then press > to enter the time setting
3. Turn the dial to adjust the time (10 minutes increments). Then press > to enter the temperature setting
4. Turn the dial to adjust the temperature (increments of 0.5°c). Then press > to save and return to program choice (P1-P6) Repeat steps 2-4 for all time and temperature programs. Then press < to return to the previous menu or leave for 1 minute to automatically return to the home screen

Technical Specification

All Day Mode
All day mode temperature	5oC-35oC (Default: 21oC)
Holiday Mode
Holiday mode temperature	5oC-35oC (Default: 7oC)
Holiday mode days	1-99 days (Default: 1 day)
Default Mode
Temporary set temperature	5oC-35oC (Default: 21oC)
Program event start time	00.00-24.00 (See 5.1 for details)
Program event set temperature	5oC-35oC (See 5.1 for details)
Program operation mode	5/2 day, 7 day, 24hr (Default 5/2 day)
Number of programs	4 or 6 (Default 6)
Manual Mode
Manual mode temperature	5oC-35oC (Default: 21oC)
Delayed Start
DS	Off or On (Default Off)
TPI
TPI	Off, 3 cycles or 6 cycles (Default Off)
OFF Mode (Frost Protection)
Frost protection start temperature	5oC
Frost protection exit temperature	7oC

Service
SERS	OFF or 1-4 (Default: Off) (See 9.1 for details)
Service DATE	28-366 days (Default 365 days)
Other Functions
Operation MODE	Auto, Manual, Off (Default: Auto)
Temperature calibration ADJ	3.0oC-3.0oC (Default: 0oC)
SWING	0.5oC-2.0oC (Default: 1oC)
Display backlight	Off/On (Default: Off)

Thermostat Technical Settings

Power supply	230VAC, 3(1)A SPDT
Temperature Sensor Type	+/- 1oC at 20oC
Total Switch Rating	3(1)A 230 VAC
Contact Type	SPDT (Volt Free changeover contacts)
Plastic	Thermoplastic, flame retardant
Protection Rating	IP30
Dimensions	95mm (L) x 95mm (W) x 39mm (D)
BST/GMT Time Change	Automatic
Factory Pre-Set Programme	Yes, see 5.1 for details
Complies with	EN 60730-1, EN 60730-2.7, EN 55014- 1:2006+A1:2009+A2:2011, EN 61000- 3-2:2014, EN 61000-3-3:2013, EN 55014-2: 2015, EN 60730-1:2011, EMC Directive 2014/30/EU, LVD Directive 2014/35/EU

Installation
Installation Safety Instructions
The unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring Regulations. Isolate mains supply before commencing installation. Please read all instructions before proceeding. Ensure that the fixed wiring connections to the mains supply is via a fuse rated at not more than 3 Amps and a Class ‘A’ switch having a contact separation of a minimum of 3mm in all poles. The recommended cable sizes are 1.0mm sqr or 1.5mm sqr. No earth connection is required as the product is double insulated but ensures continuity of earth throughout the system.

General Safety Instructions
This product complies with the essential requirements of the following EC Directives:

• Electro-Magnetic Compatibility Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• EC Marking Directive 2014/30/EU

Please leave the user instructions with the end user where they should be kept in a safe place for future reference.

Warning Notices

WARNING: ALWAYS ISOLATE THE AC MAINS SUPPLY BEFORE INSTALLING. THIS PRODUCT MUST BE FITTED BY A COMPETENT PERSON, AND INSTALLATION MUST COMPLY WITH THE GUIDANCE PROVIDED IN THE CURRENT EDITIONS OF BS767 (IEE WIRING REGULATIONS) AND PART “P” OF THE BUILDING REGULATIONS.

WARNING: DO NOT FIT THE RECEIVER TO A BACK PLATE THAT IS LIFE. SWITCH OFF THE MAINS BEFORE FITTING THE BACK PLATE AS LIVE AND NEUTRAL CONTACTS MAY TOUCH WHILE MOUNTING THE RECEIVER ON THE PLATE AND DAMAGE THE PRODUCT.

Maintenance
Always isolate the mains supply before commencing any work, servicing or maintenance on the system. And please read all instructions before proceeding. Arrange for an annual maintenance and inspection schedule to be carried out by a qualified person on every part of the heating and hot water system.

Fitting the Programmable Room Thermostat

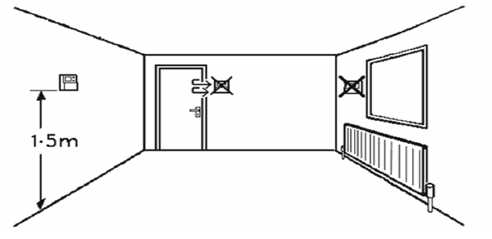

The ideal position to locate the Programmable Room Thermostat is about 1.5m above floor level, in a location where the thermostat is accessible, reasonably lit, and free from extremes of temperature and draughts. Do not position the thermostat near sources of heat, such as radiators, lights, TV, direct sunlight, or on an outside wall.

Installing the Programmable Room Thermostat

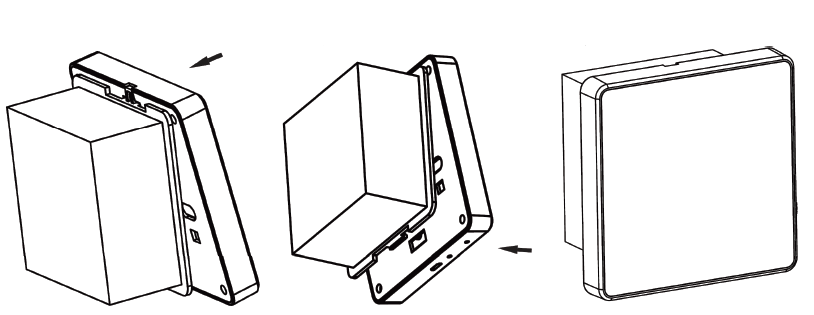

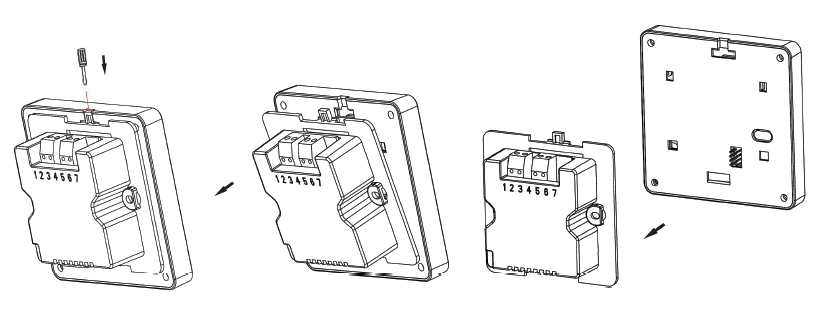

1. Use a flat-headed screwdriver to press the fastener at the top of the unit, then gently loosen the unit, unhooking it from top to bottom.

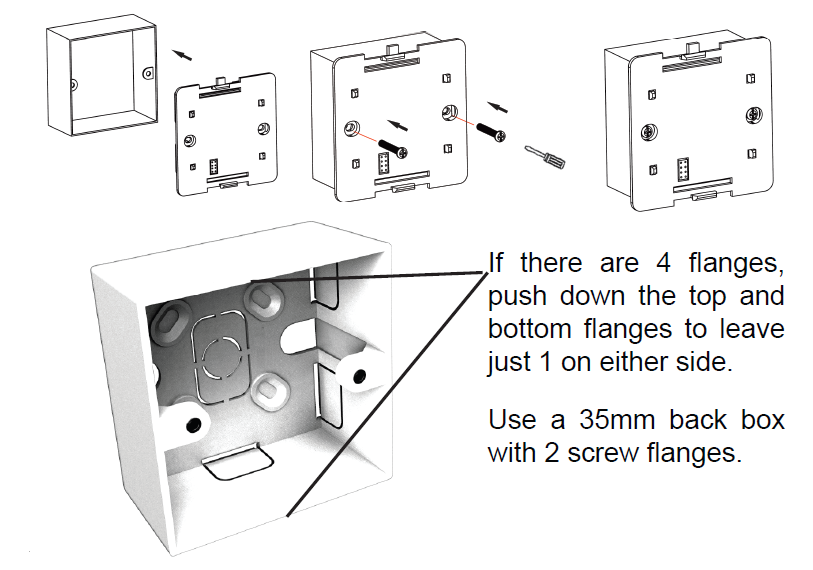

2. Fix the 35mm back box, terminals at the top, onto a 2-flange metal back box with 2 BM3.5×23 screws. If installing on a 4-flange metal back box, simply push down the flanges on the top and bottom to leave the flanges on the left and right-hand side.
3. Route the wires through the back of the wall plate. Fit the wires to the wall plate in accordance with the relevant diagram and in accordance with I.E.E. regulations.
4. Fit the unit onto the back plate securing it from top to bottom
5. Ensure an appropriate fuse is fitted to the circuit before reconnecting to the main supply.

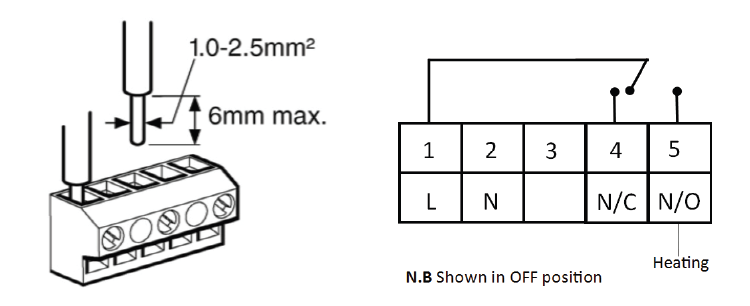

Wiring Diagram

1. L: Live
2. N: Neutral
3. NC: Normally Closed
4. NO: Normally Open

Technical Settings
Quick Command Guide

Menu Technical Settings (tEcH)

1. Press and hold > until the display shows tINE. Turn the dial until the display shows tEcH then press < & > together to enter
2. Use the dial to choose between the below, then press > to enter:-
3. dS: Delayed Start. The default is OFF. Use the dial to choose between OFF (function disabled) or ON (heating on time is delayed up to 40 minutes according to current room temperature)
4. TPI: TPI. The default is OFF. Use the dial to choose between OFF (function disabled), 3CYC (each hour has 3 heating cycles, recommended for oil boilers) or 6CYC (each hour has 6 heating cycles, recommended for gas boilers)
5. SUG: Swing. The default is 1.0. Use the dial to choose between 0.5-2.0
6. AdJ: Temperature calibration. The default is 0. Use the dial to choose between -3.0oC – 3.0oC
7. noP: Number of time and temperature events. The default is 6. Use the dial to choose between 4 or 6 time and temperature events.
8. SEr: Landlord Service Interval. The default is OFF. See section 9 to amend

Landlord Service (SEr)
Setting the Landlord Service (SErS)

1. To set the landlord service, enter the landlord service settings (see section 8.2). Use the dial to select SErS then press >
2. Use the dial to enter the password 0000, using > to move to the next digit. Then press > to enter technical settings.
3. Use the dial to choose between the below options, then press to confirm and return to landlord service settings OFF: Disables the service interval
   1. Reminds the user when the annual service is due by displaying SER in the screen 30 days before the due date. The operation of the system will not be affected.
   2. Reminds the user when the annual service is due by displaying SER in the screen 30 days before the due date and only allows the system to run for 45 minutes per hour after the due date has passed
   3. Reminds the user when the annual service is due by displaying SER in the screen 30 days before the due date and only allows the system to run for 30 minutes per hour after the due date has passed
   4. Reminds the user when the annual service is due by displaying SER in the screen 30 days before the due date and only allows the system to run for 15 minutes per hour after the due date has passed

Setting the Due Date (DAtE)
To set the due date, enter the landlord service settings (see section 9.1) and use the dial to select DAtE then press >. Use the dial to set the due date (between 28-366 days) then press > to confirm and return to landlord service settings.

Changing the Password (CODE)
To change the password, enter the landlord service settings (see section 9.1) and use the dial to select CODE then press >. Use the dial to set the first digit of the new password then press > to move to the next digit. Repeat this for all 4 digits. On the last digit, press > to confirm the new password. Then re-enter the chosen password using the dial and > button. On the last digit press > to confirm. If both inputted passwords match, the new password will be saved and the unit will return to the home screen. If the inputted passwords do not match, the unit will return to the landlord settings menu and this step (section 9.3) should be repeated.

WARNING: Interference with sealed parts renders the guarantee void. In the interests of continuous product improvement, we reserve the right to alter designs, specifications, and materials without prior notice and cannot accept liability for errors.
