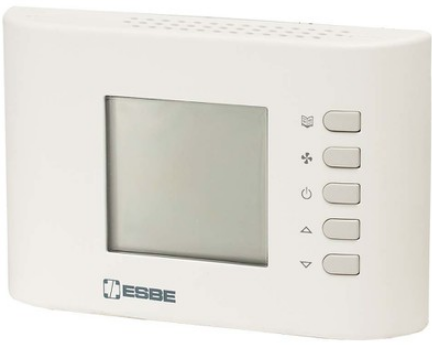

APPLICATION

The ESBE series TPx100 is a range of programmable ON/ OFF electronic room thermostats for use in heating or cooling applications. The thermostats can be connected to 2-point or spring return actuator, a circulation pump or directly to the boiler.

VERSIONS
TPW114 is a weekly programmable electronic room thermostat for use in heating or cooling application, operating with 2*AA (1,5V) batteries. The regulating temperature range is between 5°C and 40°C and has 3 individual operating modes, comfort, economic or antifrost/Off. The modes are activated by the 7 days program with 48 programmable periods each day. The thermostat can also be set in holiday mode from 1 hour up to 99 days. The display shows the measured temperature, the activated mode and if the relay is activated. Contact rating for the relay is 5(1)A@250V AC.

TECHNICAL DATA

  • Ambient temperature: _________________________ max. 40°C
  • ______________________________________min. 0°C
  • Ambient humidity:____________20…80% RH non-condensating
  • Sensor type temperature: ________________NTC 10 kΩ@25°C
  • Sensor type humidity:____________________________ SHT-21
  • ErP Temperature controls class:_________________________ I
  • Energy efficiency contribution:__________________________1%
  • Enclosure rating:___________________________________IP30
  • Contact rating: _________________________5(1)A @ 250V AC
  • Voltage: _______________________________2 x 1,5V LR6/AA
  • Battery endurance:______________________________ >1 year
  • Protection class:______________________________________ II
  • Material
  • Housing: ___________________ ABS + PC self-extinguishing V0

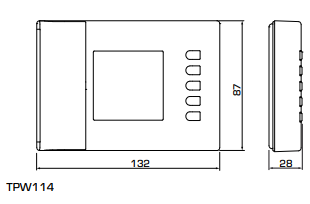

DimensionESBE- TFC139- Fan- Coil- Room -Thermostats-1

SERIES TPx100

Art. No. Reference Application Voltage Contact rating Setting range Weight [kg] Note
18002200 TPW114 Heating or cooling 2*AA (1,5V) 5(1)A@250V AC 5–40°C 0,17 Weekly programmable

SUITABLE ESBE ACTUATORS







Series



Control signal



ARA600



90



ARC300



ARD100



ARD200



ALG400



VZC/VZD



MBA100



ZRS100



TPx100



2-point

ARA6x5, ARA6x6, ARA6x7, ARA6x8

M97, M98



ARC361, ARC363



ARD155, ARD157



ARD255, ARD257



ALG434, ALG436







WIRING

ESBE- TFC139- Fan- Coil- Room -Thermostats-2

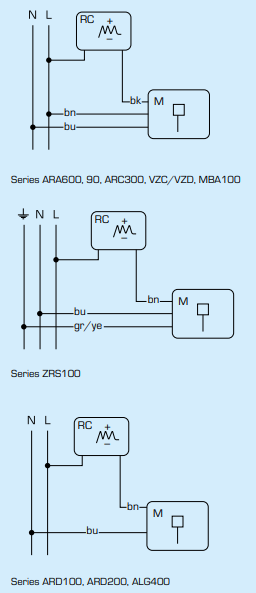

ELECTRICAL CONNECTION TO ESBE ACTUATORS
