EMOS P5681 THERMOSTAT
Surface Mount Thermostat
Description

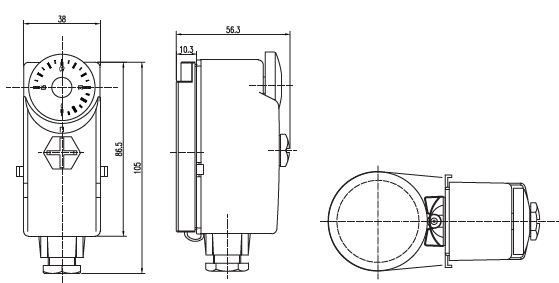

- Flow Thermostat with the external scale to be mounted on the pipe’s surface
- Easy to mount system thanks to the tension spring
- Temperature range 0 °C – 90 °C (tolerance 5 °C)
- Easy electrical connection thanks to the sufficiently large cable clamps
Installation
- Firmly attach the thermostat on the radiator pipe’s surface and secure it by the attached tension spring so that the thermostat would sit on the pipe tightly. (Any insulation must be removed from the spot where the sensor is going to be mounted).
- The redundant part of the spring may be cut off.
Electric Connection
-
- Open the thermostat by pulling out the dial (1) and then release the large plastic screw (2).
- Remove the lid from the case. Now you see the four plastic clamps, these must be connected in the following way:
- Clamp C and 1 = opener
- The thermostat will be opened as the temperature is increasing and will be closed as the temperature decreases. (E. g. function = „Heating“).
- Clamp C and 2 = opener
- The thermostat will be closed as the temperature is increasing and will be opened as the temperature is decreasing. (E. g. function = „Cooling“).
- Clamp
= Grounding
- Clamp
- The installation may be done by the professional heating technician only and in the accordance with the connection plan. Moreover, the installation must comply the currently valid VDE regulations and must comply as well as the specifications issued by your energy supplier.
- The installation must always be done when the electricity supply is switched off. All the safety specifications must be observed.
- Observe the maximum switching current stated in the technical specifications!
- Our company is not liable for the unprofessional installation.
Technical Specifications
- Operating Voltage: 230 V AC 50Hz, 400 V AC 50Hz
- Contact: 1 two-way contact
- Switching Current: 16 (4) A – 230 V, 6 (1) A – 400 V
- Temperature Controlling Range: 0 °C – 90 °C
- Sensor Unit: liquid sensor
- Coverage: IP40
DISPOSAL
The product was issued a declaration of conformity. This product is not designed to be used by persons (including children), whose physical, sensory or mental incapacity or lack of experience and knowledge prevents them from safe use of the appliance, unless they are supervised or unless they have been instructed about the use of this appliance by a person responsible for their safety. Supervision over children is required to ensure they won’t play with the appliance. After the end of the service life, do not throw the product or batteries into unsorted communal waste. Use sorted waste collecting points instead
