ECOBEE 3 LITE Thermostat Installation Guide

ECOBEE 3 LITE Thermostat

What is in the box

First things first. Here’s what you’ll find in the box.

You’ll also need these tools

OPTIONAL

INSTALLATION

1. STEP 1

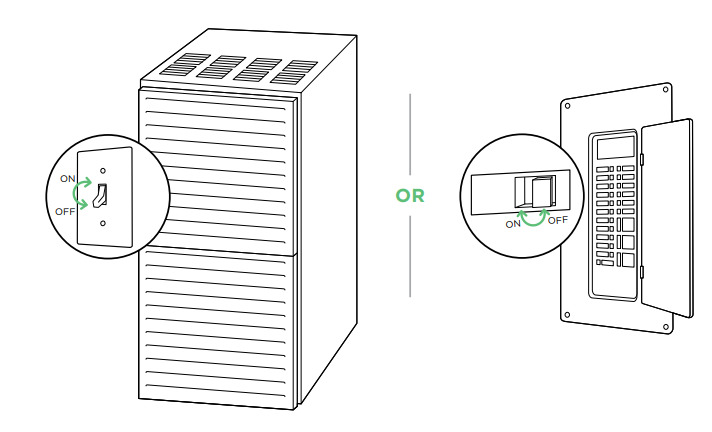

   Power off your Heating, Ventilation and Air Conditioning (HVAC) system by using the master switch or circuit breaker box. This is important for your safety.
   TIP:
   Look for your master switch or circuit breaker box in the basement, attic, utility closet, or behind a wall panel near the thermostat.
2. STEP 2
   Confirm your system is off by turning on your heat (during winter) or your AC (during summer). Wait a few minutes – you should not feel air coming from your vents.
3. STEP 3
   Remove your old thermostat cover from the wall.
   TIP:
   Many thermostats simply pop off or unclip from the base, while others may have screws that you will need to remove.
   CHECKPOINT: COMPATIBILITY
   Does your old thermostat’s backplate have any of these indicators?
4. STEP 4
   Take a picture of the wires connected to the terminals of your old thermostat. You may need to reference this photo later on.
   CHECKPOINT: C WIRE
   Do you have a C wire connected to your old thermostat?

Install your ecobee with a C wire

If you have a C wire, it will power your ecobee. You won’t need the Power Extender Kit included in the box.

CHECKPOINT: DON’T SKIP AHEAD
Have you completed steps 1 – 4 in the ‘Start Your Install’ section?

1. STEP 5
   Carefully disconnect and label the wires from your old thermostat one at a time, using the labels provided.
2. STEP 6
   Unscrew the mounting plate of your old thermostat to remove it from the wall.
   WARNING:
   Be careful, as some thermostats may contain mercury. Recycle your old thermostat safely with your local hazardous waste facility.
3. STEP 7
   Decide if you want to use the trim plate with your ecobee. The trim plate is useful if you want to hide marks or holes left on the wall by your old thermostat.
4. STEP 8: OPTIONAL
   If using the trim plate, align the mounting holes on the trim plate and backplate and press them into place together.
5. STEP 9
   Pull the wires through the hole in the middle of the backplate and then attach the backplate to the wall using the drywall anchors and screws provided.TIP:
   Use a 3/16” drill bit to drill a hole for the drywall plugs.
   CHECKPOINT: INSERT YOUR R WIRE(S)
   Do you have more than one R wire? (That includes R, Rc, and Rh)
6. STEP 10
   Insert your remaining wires into the side (not the front) of their corresponding terminal blocks.
7. STEP 11
   Tug on the wires gently to ensure they are securely connected.
8. STEP 12
   Carefully push any excess wire back into the hole and ensure there are no drafts coming  from the hole(s) in the wall.
9. STEP 13
   Gently press your ecobee thermostat into the backplate until it ‘clicks’ into place.
10. STEP 14
    Turn the power to your HVAC system back on using the master switch or at the circuit breaker box.
11. STEP 15
    Say hi to your new ecobee! The screen will power on and guide you through the set-up and registration.

ALL DONE!
Congratulations, you did it!
To complete your set-up, follow the instructions on your ecobee screen.

Install your ecobee without a C wire

If you don’t have a C wire, you’ll need to use the Power Extender Kit (PEK) included to reliably power your ecobee.

CHECKPOINT: DON’T SKIP AHEAD
Have you completed steps 1 – 4 in the ‘Start Your Install’ section?

CHECKPOINT: 3 OR 4 WIRES
The Power Extender Kit requires your system to have the following wires
4 wires: W/W1, Y/Y1, G and R (or RC or RH)
OR
3 wires: Y/Y1, G and R (or RC or RH)
Do you have these wires?
Continue to
the next page
The Power Extender kit will work with your system!

Give us a call
Looks like you have one or more wires missing. Please contact ecobee support for more information.
1.877.932.6233 or [email protected]

1. STEP 5
   Take your Power Extender Kit, wire labels, tools, your smart phone, and go to your HVAC system.
2. STEP 6
   Open your HVAC system’s cover to reveal the control board.
3. STEP 7
   Take a picture of the wires connected to your control board. You may need to reference this photo later on.
4. STEP 8
   Label only the R, Y or Y1, G and W or W1 wires with the matching labels provided. If you have more than one wire going into these terminals, only label those coming from your thermostat.
   TIP:
   If you have wires connected to both RC and RH terminals at the control board you may have a two-transformer system. Please contact support to help you with installation: 1.877.932.6233 or [email protected].
5. STEP 9
   Disconnect the labeled R, Y, G and W wires from the control board.
6. STEP 10
   Connect the wires you disconnected from the control board into their matching gray terminal blocks on the Power Extender Kit.TIP:
   Press the buttons to insert the wires more easily.
7. STEP 11
   Tug on the wires gently to ensure they are securely connected.
   TIP:
   When a wire has been connected correctly, the button on that block will lower.
8. STEP 12
   Connect the 5 white wires coming out of the Power Extender Kit to the corresponding terminals on your control board.
   CHECKPOINT: POWER EXTENDER KIT
   Check that you have installed the Power Extender Kit correctly. It should be installed between your thermostat wiring and your control board.
9. STEP 13

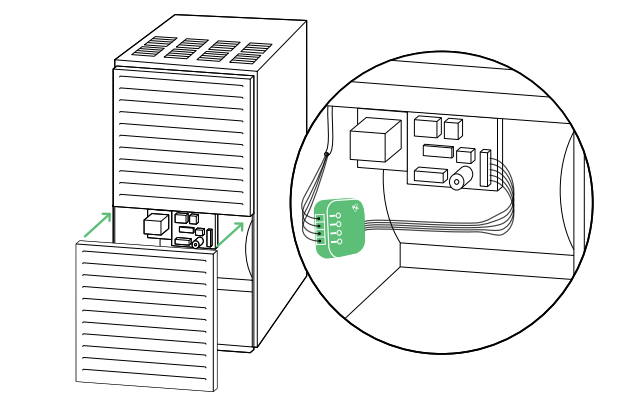

   Mount the Power Extender Kit inside your HVAC system, taking care not to strain the wires. Close the HVAC cover panel securely and return to your thermostat.
   TIP:
   Make sure your HVAC panel is fully closed. Some systems will not turn on if the cover panel has not been closed properly.
10. STEP 14
    Back at your thermostat: Carefully disconnect and label the wires from your old thermostat one at a time, using the labels provided.TIP:
    If you have a jumper between Rc, Rh or R, leave it alone. Only label the wires that run from your wall into a terminal block.
11. STEP 15
    Unscrew the mounting plate of your old thermostat to remove it from the wall.WARNING:
    Be careful, as some thermostats may contain mercury. Recycle your old thermostat safely with your local hazardous waste facility.
12. STEP 16
    Decide if you want to use the trim plate with your ecobee. The trim plate is useful if you want to hide marks or holes on the wall left by your old thermostat.
13. STEP 17: OPTIONAL
    If using the trim plate, align the mounting holes on the trim plate and backplate and press them into place together.
14. STEP 18
    Pull the wires through the hole in the middle of the backplate and then attach it to the wall using the drywall anchors and screws provided.
15. STEP 19
    First, connect these 3 wires as shown:R/RC/RH RC G C Y PEK
    Then, connect any remaining wires to their corresponding terminal.
16. STEP 20
    Tug on the wires gently to ensure they are securely connected.
17. STEP 21
    Carefully push any excess wire back into the hole and ensure there are no drafts coming from the hole(s) in the wall.
18. STEP 22
    Gently press your ecobee thermostat into the backplate until it ‘clicks’ into place.
19. STEP 23
    Turn the power to your HVAC system back on using the master switch or at the circuit breaker box.
20. STEP 24
    Say hi to your new ecobee! The screen will power on and guide you through the set-up and registration.

ALL DONE!
Congratulations, you did it!
To complete your set-up, follow the instructions on your ecobee screen.

TROUBLESHOOTING

If your ecobee doesn’t turn on, please try these steps:

1. Check that all wires are properly inserted into the terminal blocks at the thermostat. Tug on the wires to ensure they are not loose.
2. Make sure your HVAC cover panel is closed. Some systems will not turn on if the cover panel has not been closed properly.
3. If you have only one R wire (either R, RC, or RH), make sure it’s inserted into the Rc terminal.
   R (or RC or RH) R

ecobee support is here to help:

• Call:
  1 877 932 6233 (North America)
  1 647 428 2220 (international)
  Email:
  [email protected]

MEET YOUR ECOBEE

Here’s what you’ll see on the home screen:

And here’s what that means:

• System Mode
  Shows your current ecobee setting [heat/cool/auto/off]
• Humidity
  Shows the indoor humidity in your home
• Temperature
  Shows the temperature in your home
• Menu
  Allows you to control your system, schedule a vacation, and more
• Weather
  Shows the local weather and forecast for the week
• Quick Changes
  Touch this button to easily switch from Home and Away
• Slider to adjust Temperature
  Slide the bubble up or down to adjust your preferred temperature

These system mode icons are shown on the Home screen and in Quick Changes.

More common icons you’ll find:

WIRING DIAGRAM

Conventional heating and cooling (up to 2 stages each)

NOTE:
Do not jumper Rc or Rh. ecobee does this automatically. The R wire needs to go into the Rc terminal on your ecobee.

Heat pump (air or geothermal) with auxiliary heat

NOTE:
Do not jumper Rc or Rh. ecobee does this automatically. The R wire needs to go into the Rc terminal on your ecobee.

Boiler or radiant system with air handler Power Extender Kit thermostat wiring and conventional cooling or heating

NOTE:
Do not jumper Rc or Rh. ecobee does this automatically. The R wire needs to go into the Rc terminal on your ecobee.

Power Extender Kit thermostat wiring

NOTE:
Do not jumper Rc or Rh. ecobee does this automatically. The R wire needs to go into the Rc terminal on your ecobee.
