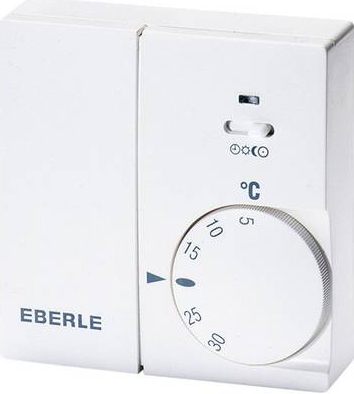

Eberle INSTAT 868-r1 Wireless Thermostat
Characteristics
- Wireless thermostat (transmits to receiver INSTAT 868-a…)
- Easy operation via a single setting dial
- Wireless temperature setback via the INSTAT 868r clock thermostat
- Two alternative control methods (making for compatibility with nearly all heating system types)
- Applicable for heating or cooling (2 pipe systems)
- Housing color: pure white (similar to RAL 9010)
- Range limitation inside setting knob
- Mountable on adapter frame ARA 1 E (accessories see pages 71 – 72
General technical data
| Type | INSTAT 868-r1 | INSTAT 868-r1o | INSTAT 868-r1H |
| Article No . | 0536 10 291 900 | 0536 11 291 902 | 0536 12 291 902 |
|
Switch (external) |
Uhr/Tag/
timer/day/night/OFF |
– | – |
|
Switch (internal) |
Heizen/Kühlen
heating/cooling |
– | – |
| Temp . range | 5 … 30 °C | 5 … 30 °C | 17 … 24 °C |
|
Temperature set-back/set-up |
um ~ 2 K oder ~ 4 K (interne Brücke) | by ~ 2 K or ~ 4 K (internal jumper) | |
|
Operating voltage |
2 x 1 .5 V batteries (Service life ~ 3 years) |
||
|
Mode of regulation (to be selected) |
ON-OFF or Fuzzy (similar to PID) with PWM (internal jumper) |
||
| Distance range | 2 walls, 1 ceiling | ||
|
Indicator lamp |
learning mode/timer activated |
||
|
Temperature sensor |
NTC internal |
||
|
Carrier frequency |
868 MHz | ||
| |Aerial | | internal | ||
|
Protection class of housing |
IP 30 / insulated |
||
| Dimensions | 75 x 75 x 25,5 mm | ||
Application example Instat 868-r1
Wiring diagram
