Eberle FIT 3R Clock Thermostat

One line text display for simplified operation
Back light (off, continuous, temporary after key press)
Real time clock (setting of year, month, day, time)
automatic Summer- Wintertime change over
max 9 events per day (each day individually)
Pre-set and adjustable programs
With Weekly program, daily program, working days/rest days
Display of room or set temperature
Optimum-Start (temperature will be reached at set time)
Arm chair programming (with removed display unit)
On-/OFF-Function, Key Menu  to be pressed for 10 sec
Holiday-Mode (date from – until can be set)
Timer (Party) specific temperature by the hours
Energy consumption display (heating on time * cost) for last 2 days, -week, -month, -year (mainly for electric heating)
Frost protection
Range limits for adjusting max and min temperature
Temperature measurement adjustable to local needs (wall compensation)
Access protection
Operating language can be selected
PWM or ON/OFF
Adaptation to valves normally open or normally closed
Heating or cooling selectable (R-variant only)
FIT 3Rw with change over contact (heating and cooling)
Valve protection (R/L-variants only)
Minimum and maximum floor temperature limits (L-variants only)
Permanent display of floor temperature (F-variant only)
EN 50559 for -F and -L variants

Power consumption	< 3 VA
Switching current	10 mA … 10(4) A, 230 V~	10 mA … 16(4) A, 230 V~	10 mA … 10(4) A, 230 V~	10 mA … 5(2) A, 230 V~
Ausgang Output	contact, not voltage free			Relay CO contact, not voltage free
Output signal	PWM (Pulse Width Modulation), adjustable cycle time or ON/OFF, adjustable hysteresis and minimal ON/OFF time
Minimum switching cycle	10 Minute 10 Min
Accuracy of clock	< 4 Min / Jahr < 4 Min / year
Gangreserve Power reserve	10 Jahre 10 Years
(optional bei 3R) Remote sensor (optional for 3R)	F 193 720, Länge 4 m, verlängerbar auf 50 m F 193 720, length 4 m, can be extended up to 50 m
Protection class of housing	IP 30
Farbe Colour	, RAL 9010 polar white, RAL 9010
Maße Dimensions	80,5 x 80,5 x 42 mm external dimension 50 x 50 mm inside dimension

Uhrenthermostat

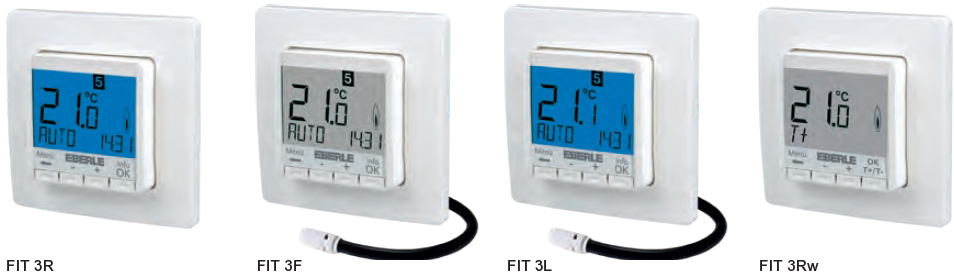

Variations

Variations
Type	FIT 3R	FIT 3F	FIT 3L	FIT 3Rw
Article No. display colour blue *	527 8103 55 100	527 8123 55 100	527 8133 55 100	527 8203 55 100
Article No. DisplayFarbe display colour white *	527 8104 55 100	527 8124 55 100	527 8134 55 100	527 8204 55 100
Room temperature controller Temp. 5 … 30 °C
Underfloor heating controller Temp. 10 … 40 °C
Temp. Raum 5 … 30 °C Temp. room 5 … 30 °C Floor 10 … 40 °C
