E-Top FT-08 5+1+1 Programmable Temperature Controller Thermostat
Specification
- Warranty: 3 years
- Customized support: OEM, ODM
- Place of Origin: Fujian, China
- Brand Name: E-Top
- Model Number: FT-08
- Output Mode: On/Off
- Sensor: Internal & External
- Programmability: 5+1+1 Programmable
- Network: Modbus
- Size: 130*87 MM
- Ambient: 0~50°C
- Accuracy: ±1 °C
- Verification: CE Cold Room Temperature Controller Corporation
- Display: Color Cold Room Temperature Controller
- Certification: CE
Introduction
The E-Top FT-08 5+1+1 Programmable Temperature Controller Thermostat is a versatile and user-friendly device designed to provide precise temperature control in residential and commercial settings. With its programmable features and intuitive interface, this thermostat allows you to customize temperature settings based on your schedule and preferences.
The FT-08 thermostat features a compact and modern design, making it suitable for various interior environments. It is equipped with a clear LCD display that shows real-time temperature readings, as well as programming and control options.
One of the key features of the FT-08 thermostat is its programmability. It supports a 5+1+1 programming schedule, allowing you to set different temperature levels for weekdays (Monday to Friday), Saturday, and Sundays. This flexibility enables you to create personalized temperature settings that align with your weekly routine.
With its easy-to-use interface, you can easily program temperature adjustments, time settings, and mode selection. The thermostat offers multiple modes, including heating, cooling, and ventilation, ensuring optimal comfort regardless of the season.
The FT-08 thermostat also includes advanced temperature sensors that provide accurate and responsive temperature control. It actively monitors the ambient temperature and adjusts the heating or cooling output to maintain the desired temperature within a narrow range.
Additionally, the FT-08 thermostat features energy-saving functions, such as adaptive control and temperature calibration, which help optimize energy usage and reduce utility costs. It also offers a vacation mode that allows you to set a specific temperature during extended periods of absence.
Installation of the E-Top FT-08 thermostat is straightforward and typically requires standard wiring connections. It is compatible with a wide range of heating and cooling systems, including electric and gas HVAC systems.
Overall, the E-Top FT-08 5+1+1 Programmable Temperature Controller Thermostat offers convenience, flexibility, and energy efficiency. Its programmable features, intuitive interface, and accurate temperature control make it an ideal choice for maintaining a comfortable indoor environment while effectively managing energy consumption.
What Is In The Box
- Thermostat
- User Manual
- Screws
- External Sensor
FEATURE
Application

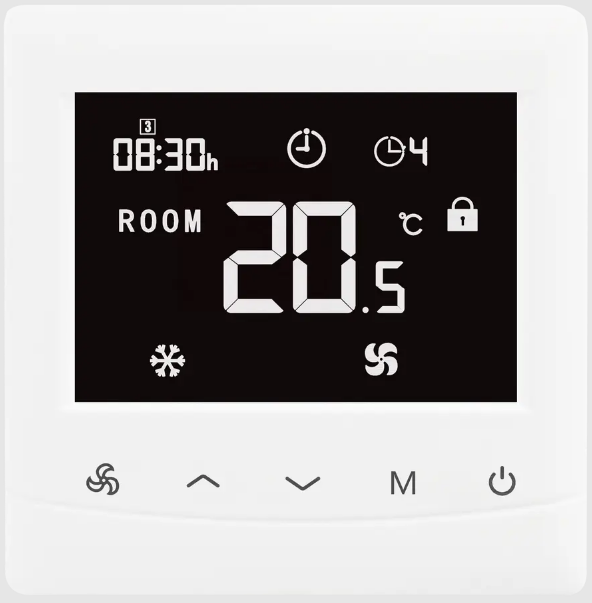

Display

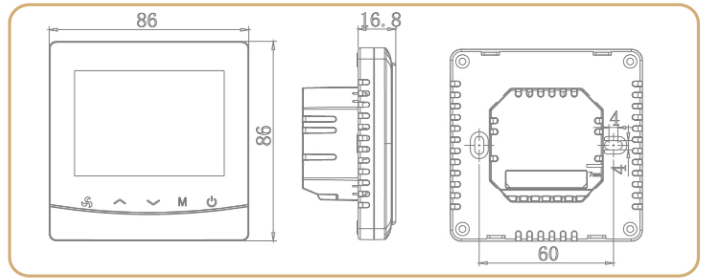

Dimension

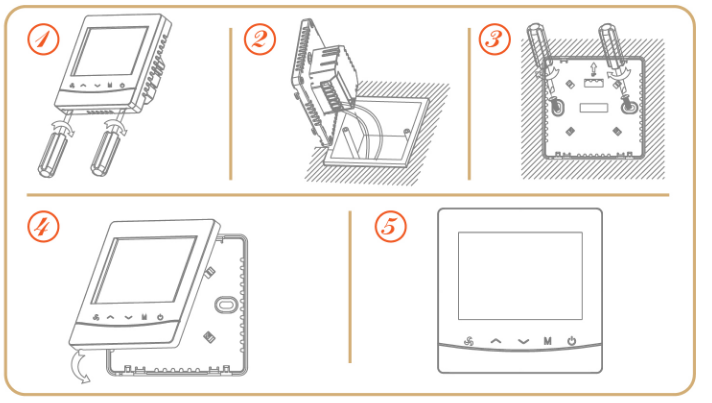

Installation

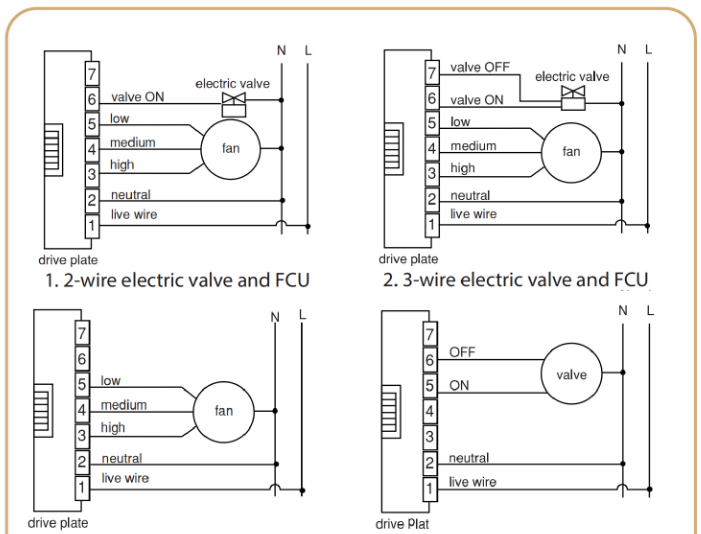

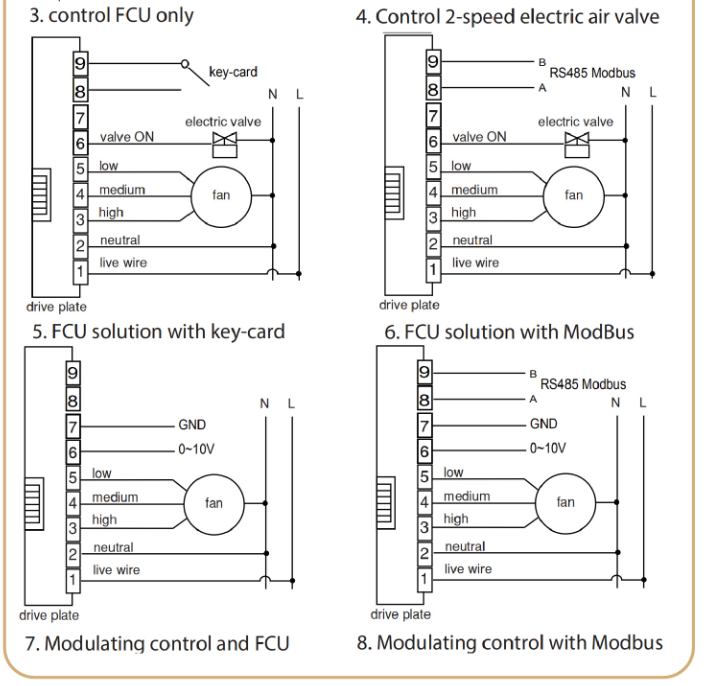

Wiring
Usage
- Installation: Follow the provided installation instructions to install the FT-08 thermostat. Ensure proper wiring connections and mount it in a suitable location for accurate temperature sensing.
- Programming: Set up the thermostat’s programming schedule based on your preferences. The FT-08 thermostat supports a 5+1+1 schedule, allowing you to customize temperature settings for weekdays, Saturdays, and Sundays individually.
- Temperature Adjustment: Use the thermostat’s controls to adjust the desired temperature for each programmed period. You can set different temperatures throughout the day to match your comfort needs.
- Override Function: If you need to temporarily override the programmed temperature, you can manually adjust it using the thermostat controls. This allows flexibility in response to immediate comfort requirements.
- Temperature Calibration: If necessary, the FT-08 thermostat may offer temperature calibration options to ensure accurate readings. Consult the product documentation to determine if this feature is available and how to calibrate the temperature if needed.
- Mode Selection: The thermostat typically offers different operating modes such as heating, cooling, or ventilation. Select the appropriate mode based on the season and your HVAC system.
- Energy–Saving Features: Take advantage of energy-saving functions if available. Some models may include adaptive control, which adjusts the heating/cooling output based on the surrounding temperature to optimize energy efficiency.
- Vacation Mode: If supported, activate the vacation mode when you are away for an extended period. This allows you to set a specific temperature during your absence, conserving energy while ensuring minimal temperature fluctuations.
- Display and Controls: Familiarize yourself with the thermostat’s display and control buttons. The LCD display typically shows the current temperature, set temperature, and other relevant information. Use the control buttons to navigate through the settings and make adjustments.
- Maintenance: Keep the thermostat clean and free from dust or debris. Regularly inspect the display and buttons to ensure they are functioning properly. Refer to the manufacturer’s guidelines for any specific maintenance instructions.
- Troubleshooting: In case of any issues or malfunctions, consult the user manual or contact the manufacturer’s customer support for troubleshooting guidance.
FAQS
Q1: Can the E-Top FT-08 thermostat be used for both residential and commercial applications?
A1: Yes, the E-Top FT-08 thermostat is suitable for both residential and commercial environments, providing precise temperature control.
Q2: How many programmable schedules does the FT-08 thermostat support?
A2: The FT-08 thermostat supports a 5+1+1 programmable schedule, allowing you to set different temperature levels for weekdays, Saturdays, and Sundays.
Q3: Does the FT-08 thermostat have a backlight for easy visibility in low-light conditions?
A3: The availability of a backlight may vary depending on the specific model of the FT-08 thermostat. It’s recommended to check the product specifications or documentation for specific details.
Q4: Can I set a specific temperature for vacation mode?
A4: The availability of a vacation mode may vary depending on the specific model of the FT-08 thermostat. It’s recommended to check the product specifications or documentation for specific details.
Q5: Is the FT-08 thermostat compatible with different heating and cooling systems?
A5: Yes, the FT-08 thermostat is designed to be compatible with a wide range of heating and cooling systems, including electric and gas HVAC systems.
Q6: Can I override the programmed temperature settings manually?
A6: Yes, the FT-08 thermostat typically allows for a manual override of the programmed temperature settings if you need to make temporary adjustments.
Q7: Does the FT-08 thermostat display both the current temperature and the set temperature?
A7: Yes, the FT-08 thermostat usually displays both the current temperature and the set temperature on its LCD display for easy reference.
Q8: Can I calibrate the temperature readings on the FT-08 thermostat?
A8: The availability of temperature calibration may vary depending on the specific model of the FT-08 thermostat. It’s recommended to check the product specifications or documentation for specific details.
Q9: Does the FT-08 thermostat have a filter change reminder feature?
A9: The availability of a filter change reminder feature may vary depending on the specific model of the FT-08 thermostat. It’s recommended to check the product specifications or documentation for specific details.
Q10: Is the FT-08 thermostat compatible with smart home systems or voice control?
A10: The FT-08 thermostat is typically not designed to be compatible with smart home systems or voice control. It operates as a standalone programmable thermostat.
Q11: How many temperature sensors does the FT-08 thermostat have?
A11: The FT-08 thermostat usually has built-in temperature sensors that provide accurate temperature readings for precise control.
Q12: Can I adjust the temperature in decimal increments?
A12: The ability to adjust the temperature in decimal increments may vary depending on the specific model of the FT-08 thermostat. It’s recommended to check the product specifications or documentation for specific details.
Q13: Does the FT-08 thermostat have a memory function to retain settings during power outages?
A13: Yes, the FT-08 thermostat typically has a memory function that retains the programmed settings during power outages, ensuring that your preferences are saved.
Q14: Can I program different temperature settings for each day of the week?
A14: Yes, the FT-08 thermostat supports programming different temperature settings for each day of the week, providing flexibility to match your schedule.
Q15: Is the FT-08 thermostat easy to install?
A15: Yes, the FT-08 thermostat is designed to be user-friendly and relatively easy to install. It typically comes with installation instructions that guide you through the process. However, if you are unsure or uncomfortable with the installation, it’s recommended to seek professional assistance to ensure proper and safe installation.
