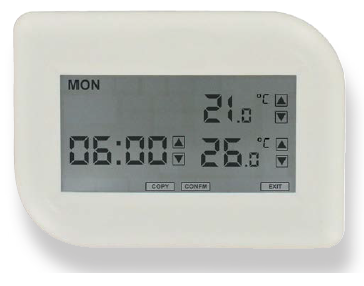

Dwyer TLVT1 Digital Touch Screen Programmable Thermostat
The Model TLVT1 Digital Touch Screen Programmable Thermostat with Heat Pump Control simplifies controlling indoor temperatures in commercial and residential buildings. A large easy-to-read LCD display shows the current temperature, set point, as well as time and day of the week.
FEATURES/BENEFITS
- Weekday and weekend programs; 4 events per day
- Large touch LCD display
- Two-stage heating and cooling control
- Security code setting protection
- Filter and energy-use timers
APPLICATIONS
- Commercial or residential indoor temperature control
SPECIFICATIONS
- Range: Measurement: 32 to 99°F (0 to 40°C); Adjustment: 41 to 95°F (5 to 35°C).
- Accuracy: ±1°F (0.5°C).
- Sensor Type: NTC thermistor.
- Resolution: 1°F (0.5°C).
- Power Requirements: (2) AA alkaline batteries, not included.
- Output: 1 A @ 24 VAC 50/60 Hz.
- Temperature Limits: Operating: 32 to 122°F (0 to 50°C); Storage: 23 to 122°F (-5 to 50°C).
- Weight: 10 oz (283.5 g).
| MODEL CHART | |
| Model | Description |
| TLVT1 | LCD touch screen programmable thermostat |
| ACCESSORIES | |
| Model | Description |
| TG-1
TG-2 |
Large thermostat cover
Small thermostat cover |
