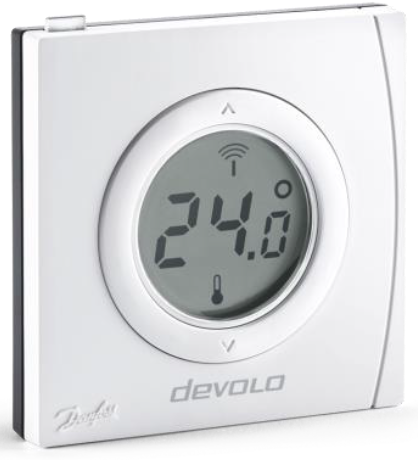

Devolo Home Control Room Indoor Thermostat
Technical data
| Wireless standard | Z-wave |
| Frequency | 868.42 MHz |
| Range | up to 25 m indoors, up to 100 m outdoors |
| Transmission capacity | < 1 mW |
| IP protection class | 21 (use indoors) |
| Dimensions | 75 x 75 x 24 mm |
| Temperature (operation) | 0 – 40 °C |
| Ambient conditions | 10 – 95 % Humidity (non-condensing) |
| Display | Grey digital, background illuminated |
| Buttons | 3, one of which includes LED |
| Battery | 2x 1.5 V AA |
| Operating systems | Windows 7 (32 Bit), Windows 7 (64 Bit)
Windows 8.x (32-bit), Windows 8.x (64-bit), Windows 8.x Pro (32-bit), Windows 8.x Pro (64-bit) Windows 10 (32 Bit), Windows 10 (64 Bit) Ubuntu Linux 12.04 (32-bit) MAC OS X 10.6, MAC OS X 10.7, MAC OS X 10.8, MAC OS X 10.9 |
| Certifications | CE Class B (EU, CH, NO) |
Sales information
| Warranty | 3 years |
| Accessories | § Printed Install Flyer
§ Batteries |
Single adapter
- Order number: 09810 (EU)
- EAN: 4250059698109
- Size: 115 x 190 x 81 mm
- Weight: 250 g
- WEEE additional information
- Weight WEEE: 110 g
- Paper (Green Dot): 100 g
- Plastic (Green Dot): 6 g
- Other (Green Dot): 0 g
Sales contact
- devolo AG Charlottenburger Allee 60
- D-52068 Aachen
- Phone: +49 (0)241-182 79 0
- Fax: +49 (0)241-182 79 99
- www.devolo.com
- [email protected]
