Devolo Home Control Room Indoor Thermostat Product Specifications Guide

Devolo-LOGO

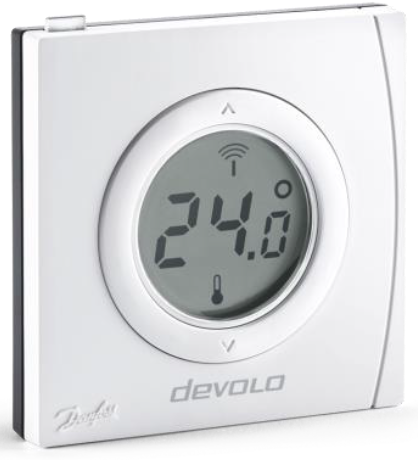

Devolo Home Control Room Indoor Thermostat

Devolo -Home- Control -Room- Indoor- Thermostat - PRO

Technical data

Wireless standard Z-wave
Frequency 868.42 MHz
Range up to 25 m indoors, up to 100 m outdoors
Transmission capacity < 1 mW
IP protection class 21 (use indoors)
Dimensions 75 x 75 x 24 mm
Temperature (operation) 0 – 40 °C
Ambient conditions 10 – 95 % Humidity (non-condensing)
Display Grey digital, background illuminated
Buttons 3, one of which includes LED
Battery 2x 1.5 V AA
Operating systems Windows 7 (32 Bit), Windows 7 (64 Bit)

Windows 8.x (32-bit), Windows 8.x (64-bit), Windows 8.x Pro (32-bit), Windows

8.x Pro (64-bit)

Windows 10 (32 Bit), Windows 10 (64 Bit) Ubuntu Linux 12.04 (32-bit)

MAC OS X 10.6, MAC OS X 10.7, MAC OS X 10.8, MAC OS X 10.9

Certifications CE Class B (EU, CH, NO)

Sales information

Warranty 3 years
Accessories §   Printed Install Flyer

§   Batteries

Single adapter

  • Order number: 09810 (EU)
  • EAN: 4250059698109
  • Size: 115 x 190 x 81 mm
  • Weight: 250 g
  • WEEE additional information
  • Weight WEEE: 110 g
  • Paper (Green Dot): 100 g
  • Plastic (Green Dot): 6 g
  • Other (Green Dot): 0 g
