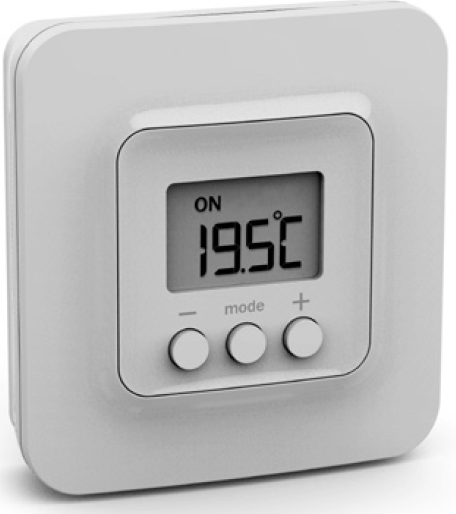

Delta Dore TYBOX 5000 Room Thermostat
DESCRIPTION
Display
- Heating request
- Off
- Start authorisation
- Frost protection mode
- Low battery signal
- Temperature
USE

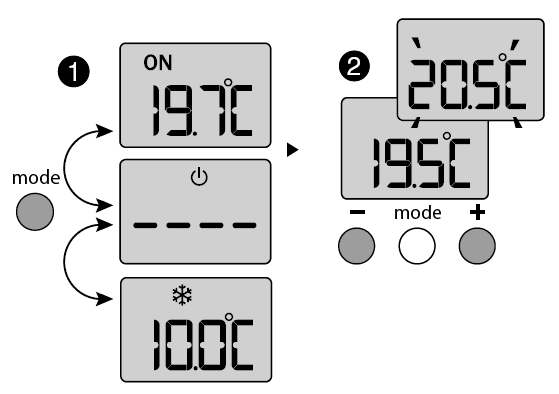

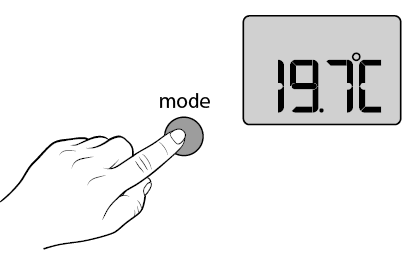

- Press any button to activate the display screen. The current mode will be displayed:
- ON = start authorisation
= Off
= Frost protection To modify it, press Mode.
- From the ON mode, press + or – to display the temperature setting and modify it.
- Press Mode or wait 5 seconds.
When switching over from the mode to ON mode, the setting’s default value is restored: 20°C.
REPLACING THE BATTERIES
TROUBLESHOOTING
If the screen displays ‘—-‘ when you press a button. Access to the settings is locked.
If the screen shows the
symbol. The batteries are spent. Replace the batteries
COMPATIBLE OPTIONS
Association with a TYDOM 1.0 home automation box
Your TYBOX 5000 can be used as a connected thermostat, if it is associated with a TYDOM 1.0 home automation thermostat. Remote control and programming from a tables or smartphone with the TYDOM application.
TYBOX 5000 pack with TYDOM 1.0
Association with a door/window magnetic contact
If a door/window magnetic contact (e.g. window) is associated with the TYBOX 5000, the heating switches to Frost Protection mode when an open window is detected.
TYBOX 5000 with the MICRO COX door/window magnetic contact
Reference
Download Manual:
Delta Dore TYBOX 5000 Room Thermostat Instructions Manual
Other Manual:
Delta Dore TYBOX 5000 Room Thermostat Installation Instructions
