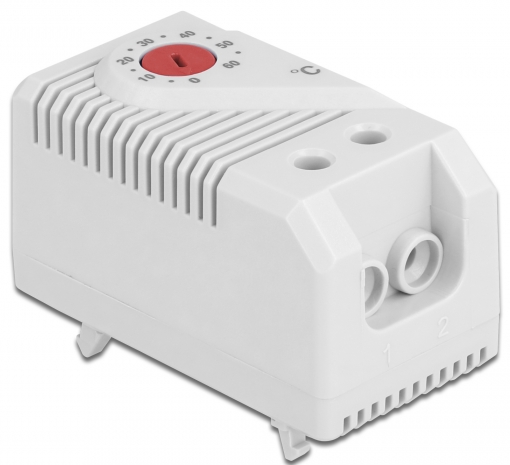

DeLOCK 66824 Thermostat
Description
This thermostat by Delock can be used to control heating equipment or to switch signal devices when the temperature is exceeded. The contact opens when the temperature rises. Due to the integrated clips on the back, it can be mounted on a 35 mm DIN rail in a control cabinet.
Specification
- Connector: 2 pin terminal for 2.5 mm²
- Switching function: normally closed contact
Switching capacity: max. AC 250 V, 10 (2) A / 120 VAC, 15 (2) A DC 30 W - Switching temperature difference: 7 K (±4 K tolerance)
- Temperature setting range: 0 °C ~ 60 °C
- Sensor: thermobimetal
- DIN rail mounting: 35 mm
- Protection class: IP20
- Lifetime: > 100.000 cycles
- Fire-resistance rating: 94V-0
- Operating temperature: -45 °C ~ 80 °C
- Colour:
- housing: grey
- temperature regulator: red
- Housing material: plastic
- Dimensions (LxWxH): ca. 60 x 43 x 33 mm
Package content
- Thermostat
- User manual

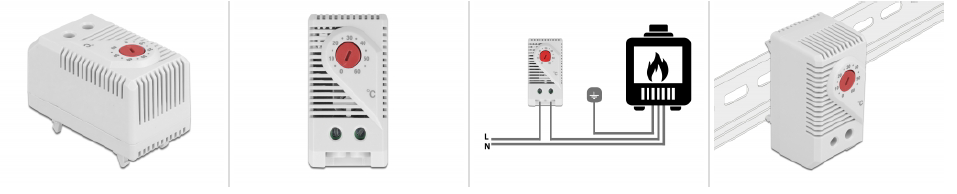

Images
DATA SHEET
| General | |
| Mounting type: | DIN rail 35 mm |
| Interface | |
| connector: | 2 pin terminal for 2.5 mm² |
| Technical characteristics | |
| Operating temperature: | -45 °C ~ 80 °C |
| Protection class: | IP20 |
| Physical characteristics | |
| Housing colour: | grey |
| Housing material: | Plastic |
| Length: | 60 mm |
| Width: | 43 mm |
| Height: | 33 mm |
