DeLOCK 66823 thermostat Product Specifications Guide

DeLOCK-LOGO

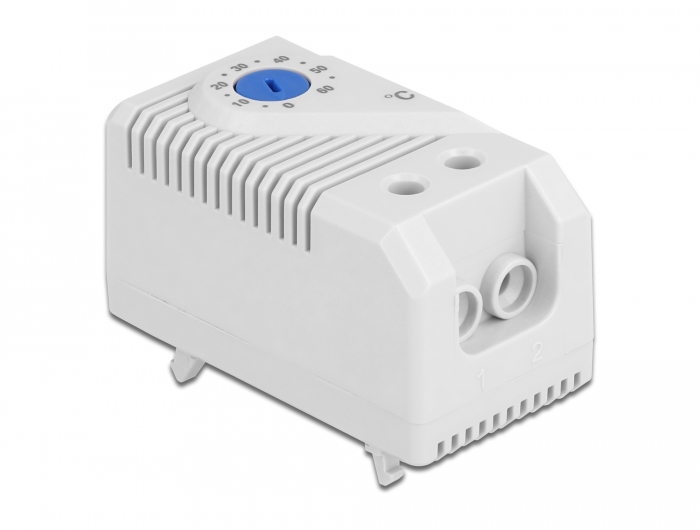

DeLOCK 66823 Thermostat

DeLOCK-66823-Thermostat-PRODUCT

Description

This thermostat by Delock can be used to control filter fans, heat exchangers or to switch signal devices when the temperature is exceeded. The contact closes when the temperature rises. Due to the integrated clips on the back, it can be mounted on a 35 mm DIN rail in a control cabinet.

Item no. 66823
EAN: 4043619668236
Country of origin: China
Package: Box

Specification

  • Connector: 2 pin terminal for 2.5 mm²
  • Switching function: normally open contact
  • Switching capacity: max. AC 250 V, 10 (2) A / 120 VAC, 15 (2) A DC 30 W
  • Switching temperature difference: 7 K (±4 K tolerance)
  • Temperature setting range: 0 °C ~ 60 °C
  • Sensor: thermobimetal
  • DIN rail mounting: 35 mm
  • Protection class: IP20
  • Lifetime: > 100.000 cycles
  • Fire-resistance rating: 94V-0
  • Operating temperature: -45 °C ~ 80 °C
  • Color:
    • housing: grey
    • temperature regulator: blue
  • Housing material: plastic
  • Dimensions (LxWxH): ca. 60 x 43 x 33 mm

Package content

  • Thermostat
  • User manual

Images

General

Mounting type: DIN rail 35 mm

Interface

connector: 2-pin terminal for 2.5 mm²

Technical characteristics

Operating temperature: -45 °C ~ 80 °C
Protection class: IP20

Physical characteristics

Housing color: grey
Housing material: Plastic
Length: 60 mm
Width: 43 mm
Height: 33 mm

© 2023 by Delock. All names and symbols mentioned here are the property of the respective producer.
Printing errors, changes, and errors excepted.
