DANFOSS LX205T TOUCHSCREEN PROGRAMMABLE THERMOSTAT
CONTENTS

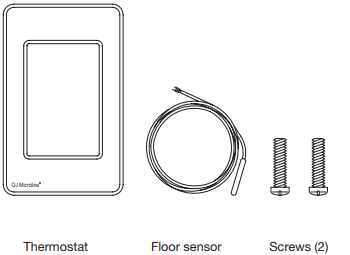

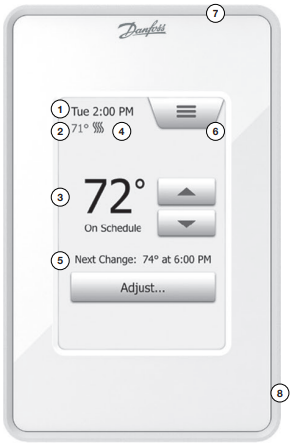

HOME SCREEN
ITEMS
- Day and time
- Current temperature
- Target temperature or setpoint
- Heating indicator – when visible, system is heating
- Next scheduled change
- Access Main Menu
- GFCI Test Button
- On/Off/GFCI Reset Button
- Press to turn system ON
- Hold to turn system OFF
- Press to reset the GFCI
WARNINGS:
- To avoid electric shock, disconnect the heating system power supply at the main panel before installation and maintenance of the thermostat.
- Keep thermostat air vents clean and free from obstruction. This thermostat is an electrical device and must be installed in compliance with national and/or local electrical codes. Installation must be performed by qualified personnel where required by law.
- If a power module with an equipment ground fault protection device (EGFPD) is to be installed where national and/or local electrical codes require a ground fault circuit interrupter (GFCI), a separate GFCI must also be installed.
INSTRUCTION

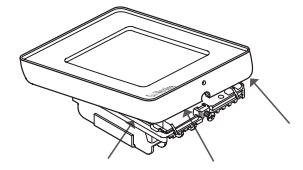

- Loosen the screw at the bottom and remove the faceplate.
- Do not attempt to remove the screw completely
- Turn the power source OFF at the breaker panel. Make electrical connections to the power base. See Warnings.
- AWG between 12 and 20.
- Note! Do not detach the screws from the terminals.
- When tightening the screws, use a torque of between 0.8 and 1.2 Nm, (0,6 and 0,8 ft.lbs)
- The floor sensor must not come in contact with electrical wires in the wall and must be routed outside the electrical box.
- Thread the floor sensor cable through hole in the power base.
- Push the electrical wires to the back of the electrical box
- Push the power base into the electrical box.
- Secure the power base to the wall
- The Floor sensor has no polarity. Connect it to the terminals C and D.
- The power module connects to the termianals A and B*
- Make the sensor connections.

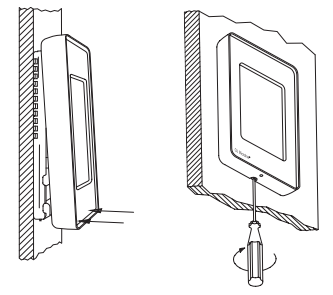

- Remount the faceplate.
- Tighten the screw at the bottom.

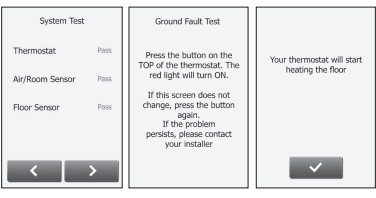

- Perform system and GFCI/EGFPD tests. Once thermostat setup is complete, confirm “Your thermostat will start heating the floor” to complete the startup wizard.
CLASSIFICATION
The product is a Class II device (reinforced insulation) and must be connected to the following leads:
- Phase L1 (L) 120 V
- Neutral L2 (N) 0-120 V
- Max. load 15 A (resistive load)
- The thermostat is intended to be used with underfloor heating.
TECHNICAL DATA
- Supply Range………………………………………………. 120/240 Vac 50/60 Hz
- Load ……………………………………………………….max. 15 A (resistive load)
- Max. power at e.g. ……………………………………………. 1800 W at 120 Vac
- ………………………………………………………………………. 3120 W at 208 Vac
- ………………………………………………………………………. 3600 W at 240 Vac
- UDG4 (GFCI) …………………………………………….. Class A (5 mA trip level)
- Temperature range ……………………………..+5 to +40°C / +41 to +104°F
- Amb. temp. range …………………………………. 0 to +25°C / +32 to +77°F
CERTIFICATION
- UL Listed for the US and Canada
- According to the following standards:
- Thermostat: UL 60730-1
- UL 60730-2-9
- CSA E60730-1:13
- CSA E60730-2-9
- UL file number: E157297
- UDG4 GFCI: UL 943 4th ed.
- CSA C22.2 No. 144.1-06
Danfoss
- 11655 Crossroads Circle
- Baltimore, MD 21220
- 1.866.676.8062
- © 2015 OJ Electronics. All rights reserved.
- This manual and parts thereof are protected under Danish and international copyright laws
