Danfoss eco HOME thermostat
IMPORTANT INSTRUCTION
Identify the valve type by comparing the shape of the valve body with the red lines and mount the right adapter on the valve.
EXAMPLE

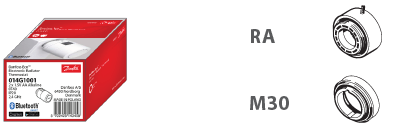

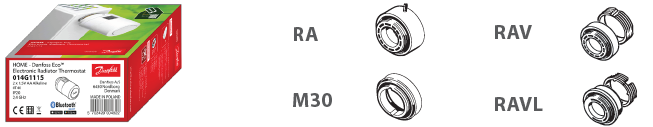

The adapters from the right box side are included. The remaining adapters in the overview above must be purchased separately. Adapter code numbers can be found below each adapter illustration.

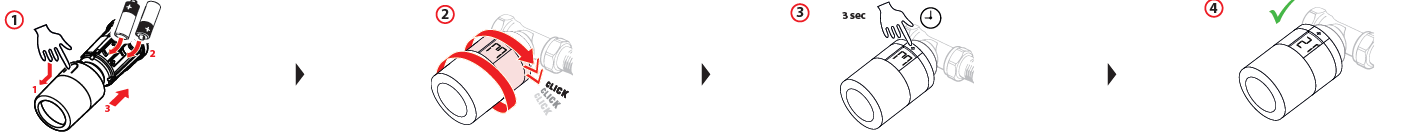

How to mount the thermostat
- Remove the battery cover as shown in the diagram and insert two AA batteries.
- Make sure the batteries are correctly oriented.
- Screw the Danfoss Eco™ onto the mounted adapter until a click sound appears.
- Press and hold the button for 3 seconds.
- The temperature set point will show on the screen once the Danfoss Eco™ is mounted.
How to reset the thermostat.
- Remove the cover and take out one battery.
- Press and hold , Keep holding while reinserting the battery.
- The screen will go blank after approximately 3 seconds
Download
Download the Danfoss Eco™ App and continue system setup in the App.
Download Guide
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Danfoss A/S declares that the radio equipment type Danfoss Eco™ is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of conformity is available at the following internet address: www.danfoss.com The thermostat is not intended for children and must not be used as a toy. Do not leave packaging materials where children may be tempted to play with them, as this is extremely dangerous. Do not attempt to dismantle the thermostat as it contains no user-serviceable parts.
