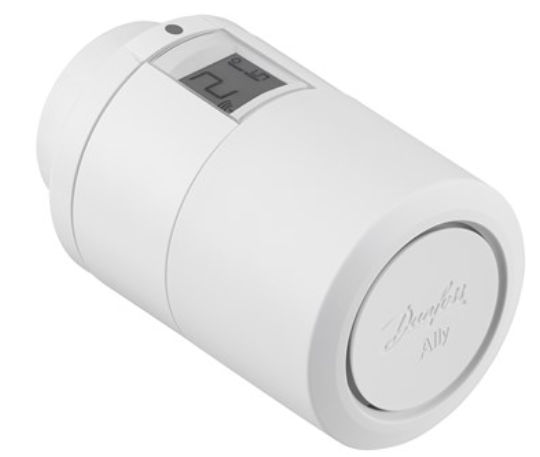

Danfoss Ally Radiator Thermostat
Introduction
Please use the manual provided with your gateway, and follow the instruction to download the App.
Instructions
The adapters from the right box side are includ-ed. Remaining adapters in the overview above must be purchased separately. Adapter code numbers can be found below each adapter illustration.
How to mount the thermostat. Remove the bat-tery cover as shown in the diagram and insert two AA batteries. Make sure the batteries are correctly orient-ed. Screw the Danfoss Ally™ onto the mounted adapt-er until a click sound appears. Press and hold the but-ton for 3 seconds. The temperature set point will show on the screen once the Danfoss Ally™ is mounted.
How to reset the thermostat.
- Remove the cover and take out one battery.
- Press and hold , Keep holding while reinserting the battery. The screen will go blank after approximately 3 seconds.
Continue system setup in the App.
Download Guide
Safety precautions
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Danfoss A/S declares that the radio equipment type Danfoss Ally™ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.danfoss.com
The thermostat is not intended for children and must not be used as a toy. Do not leave packaging materials where children may be tempted to play with them, as this is extremely dangerous. Do not attempt to dismantle the thermostat as it contains no user-serviceable parts.
Transmission Frequency: 2,4 GHz
Transmission Power: < 40 mW
The thermostat must be disposed of as electronic waste.
Danfoss Ltd.,
22 Wycombe End, HP9 1NB, GB
Homepage:
www.allyapprovals.danfoss.com
Danfoss cannot accept any responsibility for possible errors in catalogs, brochures, videos and other material. Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without changes to form, fit or function of the product. All trademarks in this material are property of Danfoss A/S or Danfoss group companies. Danfoss and the Danfoss logo are trademarks of Danfoss A/S.
All rights reserved.
