Comfortheat MTD3 THERMOSTAT General Wiring Diagram

Contents hide
1 Comfortheat MTD3 THERMOSTAT
2 WIRING OF MTD3 THERMOSTAT
2.1 WIRING OF MTD3 THERMOSTAT AND CONTACTOR
3 REFERENCE

Comfortheat

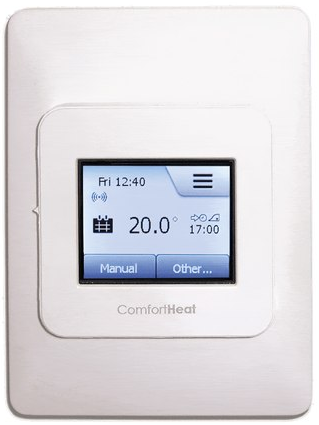

Comfortheat MTD3 THERMOSTAT

Comfortheat-MTD3-THERMOSTAT-PRODUCT

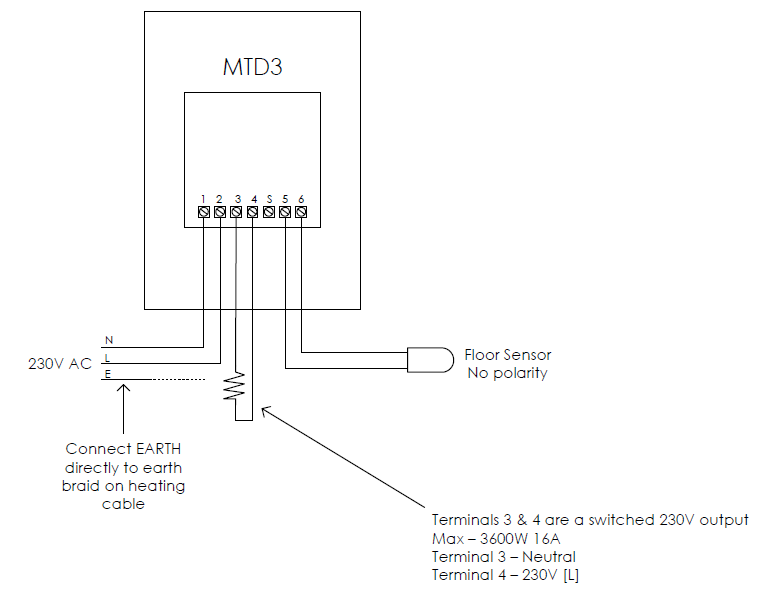

WIRING OF MTD3 THERMOSTAT

Heating load less than 3600W

Comfortheat-MTD3-THERMOSTAT-FIG-1

NOTE: The earth screen of all heating cables is to be connected to EARTH

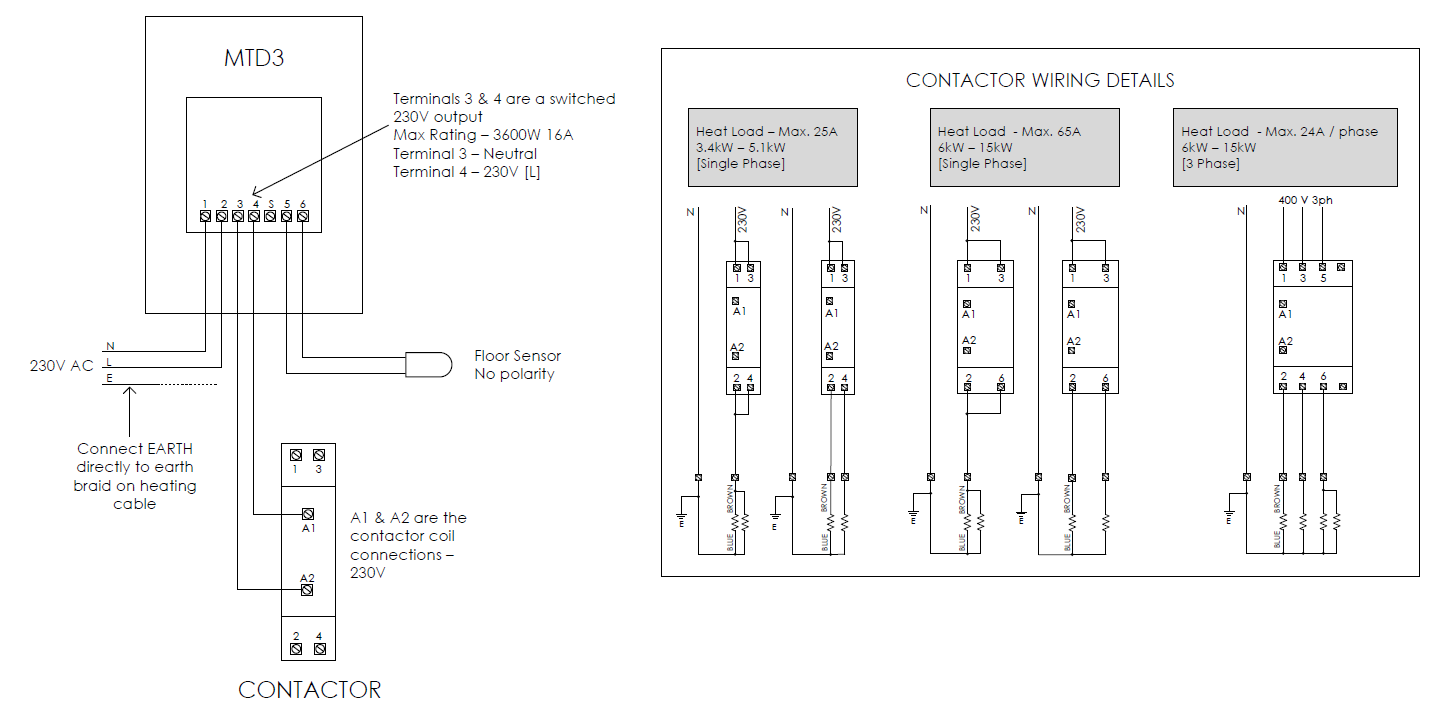

WIRING OF MTD3 THERMOSTAT AND CONTACTOR

Where the floor heating load exceeds 3400W a contactor needs to be installed

Comfortheat-MTD3-THERMOSTAT-FIG-2

NOTE: The earth screen of all heating cables is to be connected to EARTH ComfortHeat Australia Pty Ltd 8/11 Ponderosa Parade Warriewood NSW 2102  p: 02 9979 8600 [email protected]  www.comfortheat.com.au
