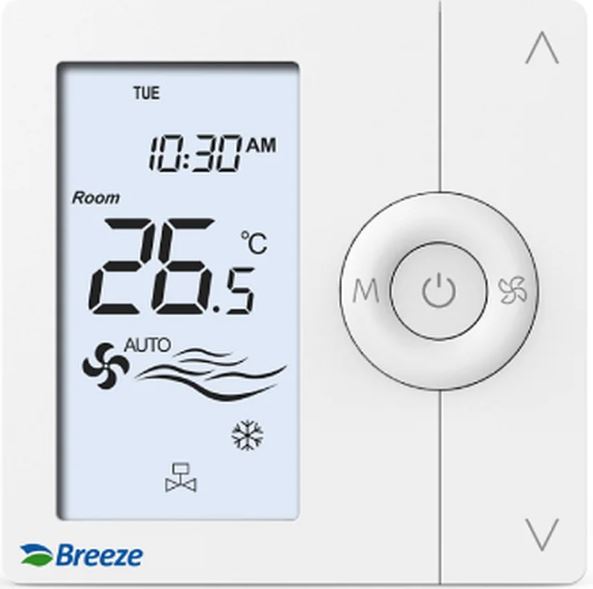

BREEZE BC103S-ACDM Programmable Thermostat
INTRODUCTION
The adaptable and user-friendly BREEZE BC103S-ACDM Programmable Thermostat is designed to provide accurate temperature control and energy efficiency for heating and cooling systems. It enables you to alter the temperature settings in accordance with your daily routine and preferences thanks to its comprehensive features and programmable scheduling. The thermostat is easy to browse and alter settings thanks to its elegant design and a clear, easy-to-read display. You may customize it to let you choose different temperatures at different times of the day, maximizing comfort while reducing energy use. The BC103S-ACDM thermostat works with a variety of heating and cooling systems, including heat pumps, electric furnaces, and central HVAC systems. It is appropriate for both home and business uses because of its adaptability. The thermostat has energy-saving options and features that may help you use less energy and spend less money on utilities. When you’re gone from home, you may set energy-saving temperature controls to ensure maximum comfort when you get back. To ensure that the air filter is cleaned or changed at the proper intervals, the thermostat may provide filter replacement reminders. This will enhance system efficiency and indoor air quality. To provide precise temperature measurements, it could also include temperature calibration options. Functionality, ease of use, and energy economy are all combined in the BREEZE BC103S-ACDM Programmable Thermostat to provide a cozy atmosphere while maximizing energy consumption. It is the perfect option for households and businesses looking for accurate temperature control and energy savings because to its user-friendly interface and customizable capabilities.
SPECIFICATION
| Feature | NEW INTELLIGENT THERMOSTAT | |
| Model No | BC103S-ACDM | |
| Supply Voltage | 85~230Vac /24Vac. 50/60Hz | |
| Cooling Control | Single/Double Compressor | |
| Heating Control | Single/Double Heater | |
| Switch Rating | 5A (7A as optional) | |
| Max.Fan Load | 1A/3A inductive, 4A resistive | |
| Fan Control | Single Speed | |
| Heat/Cool | Cool/Heat | |
| Remote Sensor | Yes | |
| Communication | Modbus multi bps | |
| Hotel Card | Yes | |
| Backlight | White | |
| Temperature Display | Celsius/Fahrenheit | |
| Programmable | Optional | |
| Setpoint Range | 5~35C | |
| Temperature Display | 0.5C | |
| Ambiente |
Storage:-20C~60C
Operating: 0~50°C
Humidity:5~95%
|
|
| Product Color | White RAL9010 | |
| Cycling Fan | Yes | |
| Approval | EN60730-1, CE Standard | |
| Installation | Surface Mounting | |
| Housing Material | PC+ABS | |
| IP Grade | IP 30 | |

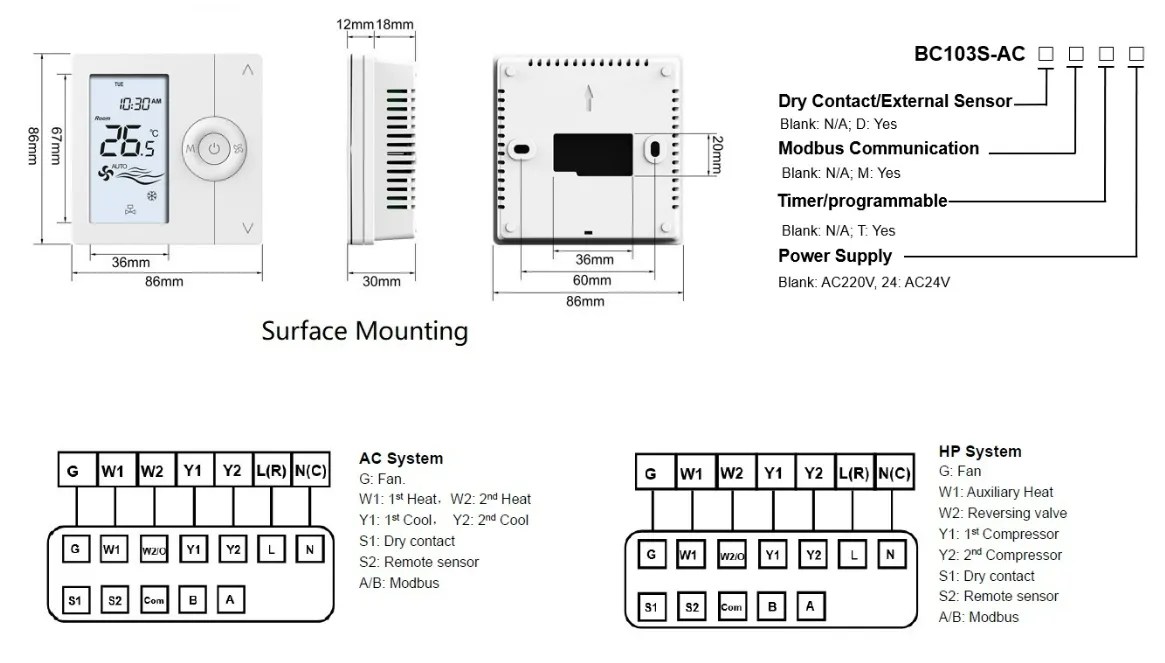

DIMENSION
HOW TO USE
Follow these basic instructions to operate the BREEZE BC103S-ACDM Programmable Thermostat:
- Get acquainted with the thermostat: Spend a minute learning how the thermostat’s buttons, display, and other features work. For detailed information on your model, see the user manual provided by the manufacturer.
- Set the time and date: To set the time and date correctly, use the thermostat’s interface. This guarantees precise system functioning and scheduling.
- Use the up and down arrows or the corresponding temperature adjustment buttons to change the temperature to your preferred setting. The thermostat’s screen needs to show the current temperature. Access the programming option to set up a personalized schedule when programming the thermostat.
- To set different temperature settings at various times of the day or days of the week, refer to the user handbook.
- This enables the thermostat to change the temperature automatically depending on your selected schedule.
- Temporary override function: This feature allows you to temporarily change the temperature without disrupting the preset timetable. By doing so, you may manually specify a different temperature that will apply until the next predetermined time.
- Use the energy-saving modes available on the BREEZE BC103S-ACDM thermostat, such as “Away” or “Vacation” mode. To save electricity, switch on these settings when you will be gone from home for a long time.
- Reminders to alter the monitor filter: Pay heed to the thermostat’s filter change notifications. Follow the manufacturer’s instructions for filter maintenance, which may call for regular filter cleaning or replacement.
- Investigate more features: The BREEZE BC103S-ACDM thermostat may provide extra functions like humidity management, fan speed adjustment, or touchscreen lock, depending on the particular model.
- To comprehend and make use of these functions, see the user handbook.
- Think about smart home integration: If your thermostat is compatible, use the offered instructions to link it to your favorite smart home platform or use a smartphone app to remotely control it.
- Troubleshooting: Refer to the troubleshooting section of the user manual or call the manufacturer’s customer service for help if you run into any problems or have inquiries about how the thermostat operates. Always refer to the owner’s handbook for your individual BREEZE BC103S-ACDM thermostat model since the features and instructions may alter somewhat from one version to the next.
FAQS
BREEZE BC103S-ACDM Programmable Thermostat: What is it?
A programmable thermostat called the BREEZE BC103S-ACDM is designed for regulating heating and cooling systems in household or business settings.
What are the BREEZE BC103S-ACDM thermostat’s major characteristics?
The thermostat from BREEZE BC103S-ACDM may include the following key features:
- You may set various temperatures at various times of the day or days of the week using programmable scheduling.
- Works with a variety of heating and cooling systems, including electric furnaces, heat pumps, and central HVAC systems.
- The temperature may be changed by using the up and down arrows or specific temperature adjustment buttons.
- Energy-saving settings: Provides energy-saving options to aid in lowering energy use and electricity costs.
- Reminders to replace or clean the air filter are given for improved system effectiveness and indoor air quality.
- Temporary override: This lets you temporarily change the temperature manually without changing the schedule that has been set.
- You may regulate the fan’s operation using the on/off or automated modes. Features a backlit display for improved visibility in dim lighting.
- Dual-powered: Capable of running on both batteries and an electrical connection. Provides the ability to lock the keypad to prevent illegal thermostat settings changes.
- Integration with smart homes: Some models could provide remote monitoring and control through smartphone applications or smart home platforms.
How can I modify the thermostat’s time and date settings?
Using the available buttons or touchscreen interface, scroll to the settings menu on the BREEZE BC103S-ACDM thermostat to set the date and time. To establish the appropriate settings, look for choices that relate to date and time and adhere to the directions.
Can I set various temperatures at various periods of the day?
Yes, you can usually establish multiple temperature settings for different times of the day with the BREEZE BC103S-ACDM thermostat. This enables daily energy savings and tailored comfort.
Does the thermostat work with heating and cooling systems that have many stages?
The BREEZE BC103S-ACDM thermostat is often compatible with systems that use several stages for heating and cooling. It offers effective control and can accommodate systems with various heating or cooling phases.
The thermostat has a vacation mode, right?
The BREEZE BC103S-ACDM thermostat does, in fact, often include a vacation mode. While you’re gone from home for a long time, you may use this mode to select energy-saving temperature settings.
Can I change the temperature manually without altering the scheduled time?
Yes, there is often a temporary override function on the thermostat. This enables you to manually change the temperature for a certain time without changing the scheduled time. At the next predetermined time, the thermostat will return to its previously preset settings.
Is there a touchscreen on the thermostat?
Depending on the model, the BREEZE BC103S-ACDM thermostat may offer a touchscreen interface. This makes temperature changes and navigation simple.
How can I browse the menu selections on the thermostat?
Use the touchscreen or supplied buttons to access the thermostat’s menu settings. For further information on how to access various menu choices and make decisions, see the user handbook.
Is it possible to program several temperature schedules for weekdays and weekends?
Yes, you may often set up separate temperature schedules for weekdays and weekends with the BREEZE BC103S-ACDM thermostat. This makes it possible for you to adjust the thermostat’s settings in accordance with your weekly schedule.
Is there an energy-saving mode on the thermostat?
Yes, the BREEZE BC103S-ACDM thermostat often includes energy-saving modes. By altering temperature controls and fan speed, these modes aid in maximizing energy use while maintaining comfort.
Is the thermostat compatible with voice control systems like Amazon Alexa or Google Assistant?
The BREEZE BC103S-ACDM thermostat may not have built-in voice control capabilities. However, some models may offer compatibility with smart home platforms like Amazon Alexa or Google Assistant for voice control through additional devices.
How often should I change the air filter, and does the thermostat provide reminders?
The frequency of air filter changes depends on factors such as filter type and usage. As a general guideline, filters are typically recommended to be changed every 1-3 months. The BREEZE BC103S-ACDM thermostat often provides filter change reminders to help you maintain optimal system performance and indoor air quality.
Can I use the thermostat to regulate the fan’s speed?
Yes, the BREEZE BC103S-ACDM thermostat usually allows you to control the fan operation. You can typically choose between settings like “On,” “Auto,” or other designated modes.
Does the thermostat offer WiFi connectivity or smartphone app control?
The BREEZE BC103S-ACDM thermostat may not offer WiFi connectivity or smartphone app control. It primarily functions as a programmable thermostat without advanced connectivity features.
