General Setting

Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat

Clock and Day Setting

  1. Press Clk. The hour display flashes.
  2. Set the hour using Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3.
  3. Press Clk. The minute display flashes.
  4. Set the minutes usingAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3.
  5. Press Clk. The day display flashes.
  6. Set the day usingAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3.
  7. PressAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-4to return to the normal display.

Date Setting

  1. Press Clk for 3 seconds to display the year.
  2. Set the year using Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3.
  3. Press Clk to display the month.
  4. Set the month using Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3.
  5. Press Clk to display the date.
  6. Set the date usingAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3 .
  7. Press to return to the normal display.

Fan Operating Mode

Press the Fan button to select the fan operating mode.

  • In automatic mode, the fan runs only when heating or cooling is activated.
    NOTE: For gas-operated HVAC systems, there might be a delay before the fan starts or stops when heating is activated or deactivated.
  • In continuous mode, the fan runs continuously and the symbol is displayed.
    NOTE: if Smart Fan is enabled, when the controller is in periods 2 and 4 of automatic mode and in unoccupied mode, the fan will run only when heating or cooling is activated. The fan will run continuously the rest of the time

Temperature Setting

DisplayAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-1

The controller normally displays the measured indoor temperature. To view the setpoint, press one of theAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3buttons. The setpoint and the Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-2symbol will be displayed for the next 5 seconds.

System Operating Mode
Press Mode to place the system in one of the following modes:

  • HEAT The system is in heating mode.
  • COOL The system is in cooling mode.
  • AUTO The system is in automatic changeover mode. (The system switches between heating mode and cooling mode to maintain the desired temperature.)
  • OFF The system is off.
  • EHEAT The system is in emergency heat mode. Only auxiliary heating is used when there is a call for heat. (This mode applies only when the controller is connected to a heat pump equipped with auxiliary heating).

Temperature Adjustment

Manual Adjustment
Use this mode to set the temperature manually. To place the con-troller in this mode, press Auto/Man so thatAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3disappears from the screen. Set the temperature using the Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3 buttons.
NOTE: If the controller is in automatic heat/cool changeover (see section 6.2), the setpoint is automatically reduced or raised by 1°C (1.8°F) when the controller switches to heating mode or to cooling mode respectively. For example, if the setpoint is 24°C (75°F) in heating mode, it will become 25°C (77°F) in cooling mode and will return to 24°C (75°F) when the controller switches back to heating mode.

Automatic Adjustment
Use this mode if you want the controller to adjust the temperature according to the programmed schedule. To place the controller in this mode, press Auto/Man so that appears on the screen.

Pre-programmed Schedule
The following schedule has been programmed at the factory. Two temperature settings are programmed for each period of the sched-ule: a heating setpoint and a cooling setpoint.

Pre-programmed Schedule MO TU WE TH FR SA SU
P1 Heating 21°C (70°F) 6:00 a.m.
Cooling 25.5°C (78°F)
P2 Heating 16.5°C (62°F)

8:00 a.m.



Cooling 29.5°C (85°F)
P3 Heating 21°C (70°F)

6:00 p.m.



Cooling 25.5°C (78°F)
P4 Heating 16.5°C (62°F)

10:00 p.m.

Cooling 28°C (82°F)

Modifying the Schedule
You can program up to 4 periods per day. To program a period, you need to set the start time, the heating setpoint and the cooling set point. The program can be different for each day of the week.

  • Press Pgm to enter the programming mode. The settings for Monday, Period 1 (P1) appear.
  • To select a day to program, press Day until the day is displayed. Press for 3 seconds to select all 7 days.
    NOTE: If you select all 7 days, the settings of the displayed period will be copied to all 7 days. For example, if you select all 7 days while period 1 is displayed, they will all now have the same settings for period 1. If you display period 2 while all 7 days are selected, they will all now have the same settings for period 2.
  • To set the start time of a period, press Pgm until the period number (P1 to P4) is displayed and the time display flashes. Then press the Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3buttons. The time changes in increments of 15 minutes.
    NOTE: To skip a period, display the period and press Clr. For example, in the pre-programmed schedule, periods 2 and 3 have been skipped for Saturday and Sunday.
  • To set the temperatures for a period, press Pgm until the period number (P1 to P4) is displayed and the temperature display flashes. If necessary, press Mode to display the heating setpoint or the cooling setpoint. Press theAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3 buttons to set the temperature.
    NOTE: The cooling setpoint is always higher than the heating set-point by a minimum of 1°C (1.8°F). For example, if the cooling setpoint is 22°C (72°F) and you set the heating setpoint to 23°C (73°F), the cooling setpoint will automatically become 24°C (75°F). However, if you raise the heating setpoint to 21°C (70°F), the cooling setpoint will remain at 22°C (72°F). The same principle applies when you set the cooling temperature.
  • Press  exit.

The following diagram shows how to navigate the programming menu.Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-4

Temporary Bypass

When you modify the temperature setpoint while the controller is in automatic mode, the new temperature is used for the next 2 hours. The icon flashes during the bypass. After the bypass, the temperature set for the current period is used.

Unoccupied Mode

You can place the controller in the unoccupied mode using a remote control device such as Aube’s CT241 telephone controller. In this mode, the temperature is lowered in heating mode or raised in cooling mode (see page 8, item 16). The message UNOC appears during the unoccupied mode.
NOTE: Automatic changeover is disabled during the unoccupied mode.

Temporary Bypass
In the unoccupied mode, only theAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3buttons work. When you adjust the temperature during this mode, the new temperature will be used for the next 2 hours, after which the controller will return to the previous setpoint. The message UNOC flashes during the bypass.

Humidity Setting

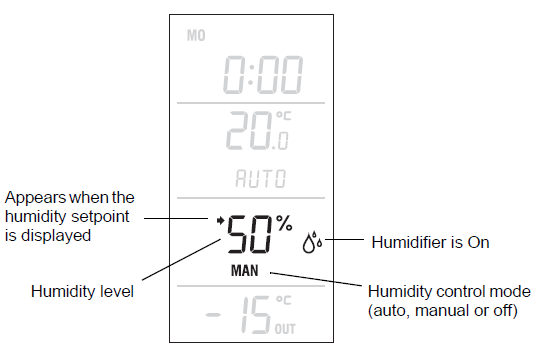

DisplayAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-5

Humidity Adjustment

Manual Adjustment
The humidity level is set by the user (5 to 60%).

  • Press the Hum button until MAN appears on the screen.
  • Press one of theAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3buttons to adjust the humidity level.
  • Press theAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-6 button.

Automatic Adjustment
The humidity level is set by the controller based on the outdoor temperature to prevent ice formation or condensation on the windows while providing enough humidity for your comfort. However, the user can apply an offset (-9 to 9%). For example, the user can enter a negative offset if there is ice formation or condensation on the win-dows.

  1. Press the Hum button until AUTO appears on the screen. The humidity level set by the controller is also displayed.
  2. Press one of theAube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-3 buttons to enter or change the offset.
  3. Press the Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-6button.

Off
To turn off the humidity control:

  1. Press the Hum button until OFF appears on the screen.
  2. Press the Aube-Technologies-TH146-P-2H1C-Programmable-Thermostat-fig-6button to save and exit the programming.

Technical Specifications

CT280-2H1C CONTROL MODULE

  • Power supply: 24 VAC
  • Current consumption: 150 mA
  • Maximum load per output: 1 A @ 24 VAC
  • Short cycle protection: 2 minutes
  • Control cycles: 2 to 6 per hour
  • Operating temperature: 0°C to 50°C (32°F to 122°F)
  • Storage temperature: -20°C to 50°C (-4°F to 122°F)
  • Humidity conditions: 0 to 95%, non-condensing
  • Dimensions: 95 x 137 x 30 (3.8 x 5.4 x 1.2 in.)

TH146-P USER CONSOLE

Temperature setpoint range

  • Heating mode: 5°C to 30°C (40°F to 86°F)
  • Cooling mode: 15°C to 40°C (59°F to 104°F)
  • Humidity setpoint range: 5 to 60%
  • Indoor temperature display range: 0°C to 70°C (32°F to 158°F)
  • Outdoor temp. display range: -50°C to 70°C (-58°F to 158°F)
  • Temperature display resolution: 0.5°C (1°F)
  • Program protection: non-volatile memory
  • Operating temperature: 0°C to 50°C (32°F to 122°F)
  • Storage temperature: -20°C to 50°C (-4°F to 122°F)
  • Humidity conditions: 0 to 95%, non-condensing
  • Dimensions: 79 x 79 x 24 mm (3.1 x 3.1 x 1 in.)

Warranty

Aube warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of three (3) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Aube shall repair or replace it (at Aube’s option).
If the product is defective,

  1. return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it, or
  2. contact Aube. Aube will make the determination whether the product should be returned, or whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Aube that the defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer. Aube’s sole responsibility shall be to repair or replace the product within the terms stated above. AUBE SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some provinces and states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. THIS WARRANTY IS THE ONLY EXPRESS WARRANTY AUBE MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE THREE-YEAR DURATION OF THIS WARRANTY. Some provinces and states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary by province or state.

Support

If you have any questions about the product installation or operation, or concerning the warranty, contact us at the address shown below.

705 Montrichard
Saint-Jean-sur-Richelieu, Quebec J2X 5K8 Canada
Tel: (450) 358-4600
Toll-free: 1-800-831-AUBE
Fax: (450) 358-4650
Email: [email protected]

10, rue Ampère 95500 Gonesse France
Tel: 33 (0) 1 34 07 99 00
Fax: 33 (0) 1 34 07 99 19
Email: [email protected]

For more information on our products, visit us at: www.aubetech.com
As an ENERGY STAR® partner, Aube Technologies has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
