Aube Technologies TH132 A/F/AF Thermostat
INTRODUCTION
The PB130-024T power base is designed to power a TH13X Series control module. This low-voltage power base can be used to drive a line voltage load using a relay or connect directly to equipment (such as a hot water system) using a 24 V signal.
Although the PB130-024T is compatible with most relays, it has been optimized for use with an Aube relay. Aube offers triac relays (SSR) such as the RT850 and RT850T (with built-in 24 V transformer), and electromechanical relays such as the RC840 and RC840T (with built-in 24 V transformer).
INSTALLATION GUIDELINES
Cut power to the heating system at the main power panel to avoid electrical shock. Installation should be carried out by an electrician.
- For a new installation, choose a location about 5 ft. (1.5 m) above the floor.
- The thermostat should be installed facing the heating system and on an inside wall.
- Avoid locations where there are air drafts (top of staircase, air outlet), dead air spots (behind a door), direct sunlight or concealed chimneys or stove pipes.

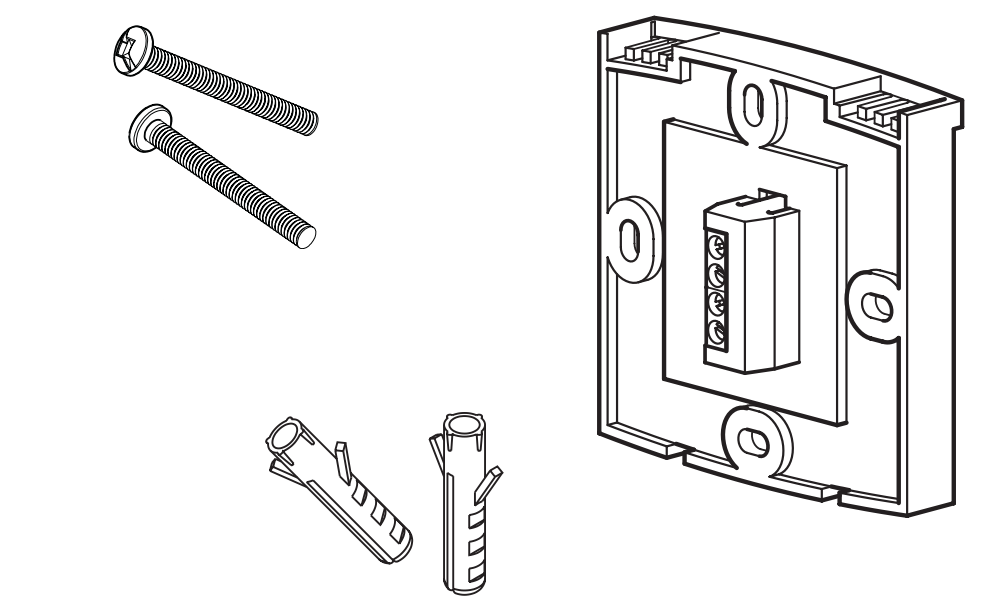

INCLUDED PARTS
- One (1) PB130-024T low voltage power base
- Two (2) anchors
- Two (2) mounting screws
INSTALLATION STEP
- Connect the base. See the typical wiring diagrams.
- Electric heating (figures 1, 2, and 3)
- Connect the base to the relay:
- Use a relay with a built-in 24 V transformer or
- Use a relay and an external 24 V transformer.
- Connect the relay to the load (see the relay’s instructions).
- Hot water heating (figure 4)
Connect the base to the 24 V valve of the water heating system.
- Electric heating (figures 1, 2, and 3)
- For a floor heating installation, connect the floor sensor between the S and R terminals.
- Push the excess wire into the wall and secure the base using the provided screws and wall anchors.
- Before mounting the control module onto the base, select the heating cycle, set the switches (if necessary), and mount the control module. Refer to the control module’s user guide for more information.
- Once the control module is configured (switches) and installed, return power to the heating system.
Technical Specification
- Maximum load: 0.5 A / 24 VAC
- Operating temperature: 32°F to 122°F (0°C to 50°C)
- Storage: -4°F to 122°F (-20°C to 50°C)
- Size (H • W • D): 2.94 x 2.94 x 0.53 in. (74.6 x 74.6 x 13.3 mm)
- Wire gauge: 14 to 22 AWG
AUBE TECHNOLOGIES INC. TWO (2) YEAR LIMITED WARRANTY
This product is guaranteed against workmanship defects for a two-year period following the initial date of purchase. During this period, AUBE Technologies Inc. will repair or replace, at our option and without charge, any defective product which has been used under normal conditions.
The warranty does not cover delivery costs and does not apply to products poorly installed or randomly damaged following installation. This warranty cancels and replaces any other manufacturer’s express or implied warranty as well as any other company commitment.
AUBE Technologies Inc. cannot be held liable for related or random damages following the installation of this product. The defective product as well as the purchase invoice must be returned to the place of purchase or mail, prepaid, and insured, to the following address.
If you have any questions concerning the PB130-024T low voltage power base, call our technical support team at:
- 705 Montrichard Saint-Jean-sur-Richelieu Quebec, Canada J2X 5K8
- 10 rue Ampère 95500 Gonesse France
Tel.: (450) 358-600
Toll Free: 1-800-831-AUBE
Fax: (450) 358-4650
Email: [email protected]
33 (0) 1 34 07 99 00
33 (0) 1 34 07 99 19
[email protected]
For more information on our products, visit us at: www.aubetech.com
As an ENERGY STAR® partner, Aube Technologies has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
