Aprilaire 8476W Wi-Fi Thermostat Owner Manual

Aprilaire 8476W Wi-Fi Thermostat

ABOUT YOUR NEW THERMOSTAT

THERMOSTAT FEATURES

• Remote access and control over Wi-Fi.
• Event-Based™ Air Cleaning.
• The large, clear, backlit display is easy to read – even in the dark.
• Displays room temperature, temperature setting, and optional outdoor temperature.
• Built-in compressor protection.
• Air filter and humidifier service indicators.
• Auto backlight (activated with first button press).
• 7 day programmability.
• Easy-to-use temperature control can override the program schedule at any time.
• Progressive recovery.

CONTROLS & DISPLAY OVERVIEW

NOTE: BACKLIGHT IS ACTIVATED WITH THE FIRST BUTTON PRESS AND AUTOMATICALLY TURNS OFF.

WI-FI SETUP & REMOTE ACCESS
For detailed instructions for connecting the thermostat to a Wi-Fi network and registering it to an Aprilaire account, refer to the Wi-Fi Quick Start Guide included in the box. Visit my.aprilaire.com for instructions about using the Aprilaire web and mobile apps.

OPERATION & PROGRAMMING

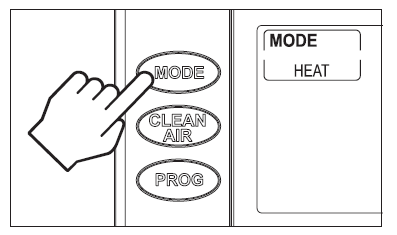

SELECT SYSTEM MODE
(OFF/HEAT/EM-HEAT/COOL/AUTO)

• Press to select:
• AUTO: The thermostat automatically selects heating or cooling depending on the indoor temperature.
• OFF: Heating and cooling systems are off.
• HEAT: The thermostat controls only the heating system.
• COOL: The thermostat controls only the cooling system.
• EM-HEAT: Thermostat controls emergency/auxiliary
  heat. Heat pump will not operate. (Only for heat pumps with auxiliary heat.)

CHANGE TEMPERATURE SETTING

Press to adjust the current setting.
In AUTO use to switch between the HEAT and COOL settings.

SELECT EVENT-BASED™ AIR CLEANING SETTING

Press to select:

• ON-24/7: This option will provide the maximum amount of air cleaning available. The air cleaner will be active for 24 hours a day seven days a week.
• AUTO: Air cleaning will not occur for the sole purpose of air cleaning, but will occur during fan operation for heating and cooling.
• CIRC-30/HR: The air cleaner will run a minimum of 30 minutes every hour. The air cleaner will monitor the amount of time your heating and cooling system runs; if 30 minutes is not reached the air cleaner will automatically turn on. This will maximize the amount of air cleaning while minimizing energy consumption.
• EVENT-3HR: When selected, the air cleaner will run continuously and then return to the most recent mode of AUTO, CIRC-30/HR, or ON-24/7. Use this option when the air needs cleaning; an example would be after vacuuming.
• ALLERGY-24HR: When seasonal allergies spike and outside air quality is at its worst, choose this option. Your air cleaner will run continuously for 24 hours and then return to the most recent mode of AUTO, CIRC-30/HR, or ON-24/7.

RESET SERVICE REMINDER MESSAGES

Press and hold together for three seconds to reset a service reminder message.

SET TIME AND DAY

1. Press to enter time setting mode. The hour
2. Press to adjust the hour.
3. Press, and the minutes flash. Press adjust the minutes.
4. Press, and the day flashes. Press to adjust day.
5. Press to end. “DONE” will display.

The thermostat will return to normal mode if no key is pressed within 3 seconds.
Note: Once the thermostat connects to the cloud, the time and date will be updated periodically. The thermostat will automatically update for daylight savings.

UNDERSTANDING PROGRAM SCHEDULES

The daily schedule is split into four sections:
WAKE: 6 am-8 am – Temperature you would prefer to wake up to, until you leave for the day.
LEAVE 8 am-5 pm – Temperature when you are away from the house during the day.
RETURN: 5 pm-10 pm – Temperature you would prefer to return to, until bedtime.
SLEEP: 10 pm-6 am – Temperature you would prefer during the night.
The times shown are the defaults. The start time and temperature of each section can be changed to fit your schedule (see page 10).

PROGRESSIVE RECOVERY
The Progressive Recovery feature allows the thermostat to activate the heating and cooling equipment prior to an event in order to reach the desired temperature at the start of the next scheduled event.

Example:
Set the Wake time to 6 am, and the temperature to 70°F. The heat will come on before 6 am, so the temperature is 70°F by the time you wake at 6 am.

CHANGING PROGRAM SCHEDULES

1. Press twice to enter program setting mode.
   Start time of the WAKE event is flashing.
2. Press or to adjust the start time
3. Press, the HEAT setting flashes. Press to adjust the heat setting.
4. Press, COOL setting flashes. Press to adjust the cool setting.
5. Press, CLEAN AIR/FAN setting flashes. Press to adjust the clean air/fan setting.
6. Press to advance the next event, and repeat steps 2-6 for LEAVE, RETURN and SLEEP events.
7. Press to advance to the next day. Repeat steps 2-6 for each day of the week.
8. Press to end. “DONE” will display.
   The thermostat will return to normal mode if no button is pressed in 3 seconds.

PROGRAM SCHEDULE OVERRIDES (TEMPORARY, PERMANENT, AWAY, HEAT BLAST)

Temporary program override

Pressto immediately adjust the temperature. This will temporarily override the temperature setting for the current programmed time period. The new temperature setting will be maintained until the next time period of the programmed schedule.
To cancel the temporary override, press twice.

Permanent hold

Press to permanently hold the temperature at its current setting. This will override the temperature settings for all time periods of the programmed schedule. With the thermostat in permanent hold, the thermostat temperature can be manually adjusted and will stay at that setting until the hold is canceled. To cancel the permanent hold press

Away

The Away feature, if enabled, allows the thermostat to be set to a predefined setpoint(s) by simply pressing the Away button in your App. By default the cooling setpoint is 85°F (29.5°C), the default heating setpoint is 62°F
(16.5°C) and the default clean air/fan mode is Auto. The default settings can be modified in the App.
To cancel Away at the thermostat press

Heat Blast®

The Heat Blast® feature will raise the current room temperature by 3°F to 5°F based on the installer setup, and then resume normal operation. To activate a Heat Blast, press the Heat Blast button in the App.
Note: Heat Blast can only be activated in the App, and is only available in the App if it is enabled in
the Installer Setup and the thermostat is in Heat or Emergency Heat mode.
To cancel Heat Blast at the thermostat press, or the buttons.

ACCESSING WI-FI SETTINGS MENU

How to enter the Wi-Fi settings menu to change settings.
Press and hold for three seconds.
The screen will display the first setting.

Press to change the setting.
Press to change to the next option.
Press after the last setting. “DONE” will be displayed.
The thermostat will return to Normal mode if no button is pressed in 60 seconds.

ACCESSING WI-FI SETTINGS MENU

CLEARING ROUTER SETTINGS
If you purchase a new Wi-Fi router or change the security settings on your existing router the router settings in the thermostat need to be cleared so the new Wi-Fi router settings can be entered. To do this, enter the Wi-Fi settings menu as described in the Accessing Wi-Fi Settings Menu section. Change the setting for WiFi Disconnect and Clear Settings to Yes then press three times, and “DONE” will be displayed. This will remove all of the previous Wi-Fi settings. Refer to the Wi-Fi Quick Start Guide for instructions on connecting to the thermostat to your Wi-Fi network.

REMOVING THE THERMOSTAT FROM A my.aprilaire.com ACCOUNT

The thermostat can only be registered to one
my.aprilaire.com account. If you need to remove
the thermostat from an existing account so it can be registered to a new account, it can be done at the thermostat. This may need to be done for instance
if you have purchased a home with the thermostat and need to remove the thermostat from the previous owner’s account and register it to your account. To do this, enter the Wi-Fi settings menu as described in the Accessing Wi-Fi Settings Menu section on page 14. Change the setting for Unregister the Thermostat to Yes and then press twice, “DONE” will be displayed.
This will remove the thermostat from any account that it is currently registered to. Refer to the Wi-Fi Quick Start Guide for instructions on registering the thermostat to a new my.aprilaire.com account.

DISABLING THE WI-FI RADIO
To turn off the Wi-Fi radio on the thermostat, enter the Wi-Fi settings menu as described in the Accessing Wi-Fi Settings Menu section. Change the setting for Turn WiFi Radio On/Off to Off and then press, “DONE” will be displayed. This will turn off the Wi-Fi radio, but maintain all network settings. To turn the Wi-Fi radio back on simply enter the Wi-Fi setting menu and change the setting for Turn WiFi Radio On/Off to On and then press, “DONE” will be displayed.

WI-FI MAINTENANCE AND TROUBLESHOOTING

TROUBLESHOOTING WI-FI CONNECTION
The Wi-Fi connection status is communicated through the use of the radio strength indicator. The following table describes the various statuses and the corresponding radio bar display.

ELECTRONIC THERMOSTAT FIVE YEAR LIMITED WARRANTY

Your Research Products Corporation Aprilaire® Thermostat unit is expressly warranted for five (5) years from date of installation to be free from defects in materials or workmanship.
Research Products Corporation’s exclusive obligation under this warranty shall be to supply, without charge, a replacement for any thermostat which is found to be defective within such five (5) year period and which is returned, together with the date of installation, no later than thirty (30) days after said five (5) year period by you to either your original supplier or to Research Products Corporation, Madison, Wisconsin 53701.

THIS WARRANTY SHALL NOT OBLIGATE RESEARCH PRODUCTS CORPORATION FOR ANY LABOR COSTS AND SHALL NOT APPLY TO DEFECTS IN WORKMANSHIP OR MATERIALS FURNISHED BY YOUR INSTALLER AS CONTRASTED TO DEFECTS IN THE THERMOSTAT ITSELF.
IMPLIED WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE AFORESAID FIVE YEAR PERIOD. RESEARCH PRODUCTS CORPORATION’S LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, OTHER THAN DAMAGES FOR PERSONAL INJURIES, RESULTING FROM ANY BREACH OF THE AFORESAID IMPLIED WARRANTIES OR THE ABOVE-LIMITED WARRANTY IS EXPRESSLY EXCLUDED. THIS LIMITED WARRANTY IS VOID IF DEFECT(S) RESULT FROM FAILURE TO HAVE THIS THERMOSTAT INSTALLED BY A QUALIFIED HEATING AND AIR CONDITIONING CONTRACTOR. IF THE LIMITED WARRANTY IS VOID DUE TO FAILURE TO USE A QUALIFIED CONTRACTOR, ALL DISCLAIMERS OF IMPLIED WARRANTIES SHALL BE EFFECTIVE UPON INSTALLATION.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

WARRANTY REGISTRATION

Visit us on-line at www.aprilaire.com to register your Aprilaire product. If you do not have on-line access, please mail a postcard with your name, address, phone number, product purchased and date of purchase to: Research Products Corporation, P.O. BOX 1467, Madison, WI 53701.
Your Warranty Registration information will not be sold or shared outside of this company.

FCC DECLARATION

Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Interference Statement (Part 15.105 (b))
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement
To comply with FCC/IC RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

IC STATEMENT

RSS-GEN, Sec. 7.1.2
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
RSS-GEN, Sec. 7.1.3
Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

P.O. Box 1467 • Madison, WI 53701-1467 • Phone: 800/334-6011 • Fax: 608/257-4357 www.aprilaire.com

U.S. Patent Numbers 8,146,376, 8,596,078 and other patents are pending. © 2015 Aprilaire – A division of Research Products Corporation
