AIRXCEL 9430 356 Cool Thermostat
Caution
This thermostat should be installed by trained technicians only. Adhere to all local and national codes and ordinances. Disconnect all power to the system before installing, removing, or cleaning
Application
The thermostat wiring is factory installed by the OEM (Original Equipment Manufacturer). RV Products suggests the thermostat wiring be a minimum of 18 gauge. The thermostat is intended for use with a 12 VDC control circuit that does not exceed 1 amp. The thermostat is equipped with a replaceable 2 amp fuse located on the base of the thermostat. The fuse is designed to “open” if the circuit is mis-wired or if there is a short in the system. Before replacing the fuse, the cause of the failure must be located and corrected.
Operation
The display indicates the mode and the room temperature. When the mode button is pressed once, the thermostat will wake. If your thermostat is equipped with a backlight, the backlight will illuminate. When the mode button
is pressed again, the mode will change. Press the or button to wake the thermostat; the set temperature will display and the mode will flash. Press the
button again to change the set temperature. The thermostat will return to sleep mode after 5 seconds if no button is pressed. There is a three minute anti-short cycle for cooling. After the cooling system has been de-energized, the system will not energize again for three minutes, to protect your compressor. To bypass the anti-short cycle, change the mode to OFF.
| Temperature | ||
|
Mode |
Range | |
| °F | °C | |
| Cooling (set) | 33°F to 99°F | 1°C to 37°C |
| Heating (set) | 33°F to 99°F | 1°C to 37°C |
Wiring Diagram
Heat and Cool – 9430*351*, 9430*353*

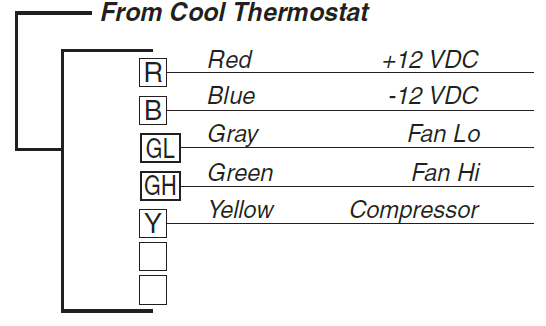

Cool Only – 9430*356*
Installation
THERMOSTAT LOCATION
This thermostat is a sensitive instrument. For accurate temperature control and comfort, the following considerations should be taken into account:
- Locate the thermostat on an inside wall about five feet above the floor. Pick a dry area where air circulation is good.
- Do not install thermostat where there are unusual heating conditions, such as direct sunlight, near heat producing appliances (televisions, radio, wall lamp, etc.), or a furnace or air conditioner supply register.
INSTALLING THE THERMOSTAT
- Place mounting screw template against the wall where thermostat will be mounted.
- Using supplied screws, mount the template to the wall.
- Remove plastic from between mounting screws.
- Connect thermostat wiring to motorcoach wiring.
- Place thermostat on mounting screws and gently push the thermostat down to lock the thermostat onto mounting screws.
- Turn on power to the thermostat.
Pairing the Thermostat
- Download the RV Climate app from either the Google Play store or Apple App store.
- Open the app and select “ADD NEW THERMOSTAT”.
- On the thermostat, hold the Up and Down buttons simultaneously to enter pair mode.
- On the App select “PAIR NEW THERMOSTAT”.
- When prompted, enter the 6 digit ID from the thermostat and select “PAIR”.
- Once connected the thermostat will revert to the main screen.
- Slide screen to the left (2nd screen).
- Press
- Select “ZONE NAME”.
- Assign a name or description to the thermostat (7 characters max).
- Select “SET” to save the assigned name or description
Pairing additional thermostats
- Using the RV Climate app.
- Slide screen to the left (last screen).
- Select “PAIR NEW THERMOSTAT”.
- On the thermostat, Hold the Up and Down buttons simultaneously to enter pair mode.
- When prompted, enter the 6 digit ID from the thermostat and select “PAIR”.
- Once connected the thermostat will revert to the main screen.
- Slide screen to the left (2nd screen).
- Press
- Select “ZONE NAME”.
- Assign a name or description to the thermostat (max. of 7 characters).
- Select “SET” to save the assigned name or description.
Pairing a previously paired thermostat
- Using the RV Climate app select “PAIR NEW THERMOSTAT”.
- On the thermostat, Hold the Up and Down buttons simultaneously to enter pair mode.
- Thermostat will automatically pair.
- Note: If thermostat doesn’t pair automatically, when prompted enter the 6 digit ID from the thermostat and select “PAIR”.
- Once pairing is complete, press the thermostat’s mode button to return to the main screen.
Details (2nd Screen)
- ZONE NAME: Assigns a name or description to the thermostat (maximum of 7 characters).
- THERMOSTAT ID: Displays thermostat’s 6 digit ID
- FUNCTIONS: Displays available modes.
- SET: Saves assigned zone name/description.
- CANCEL: Reverts to main screen.
- REMOVE THERMOSTAT: Removes thermostat from the RV Climate app.
Controlling the thermostat via RV Climate app
- Slide the screen to the left (2nd screen).
- Tap the icon displaying the current settings [Kitchen 75 FAN HIGH].
- Select the desired temperature/mode.
- Press “SET”.
Removing a previously paired thermostat
- Using the RV Climate app, slide screen to the left (2nd screen).
- Press.
- On the following page select “REMOVE THERMOSTAT” and press “OK”.
- UP – Wake the thermostat and increase the temperature
- DOWN – Wake the thermostat and decrease temperature
- MODE – Wake the thermostat, change mode
Operation Chart
The chart below shows the system functions with both COOL ONLY and HEAT/COOL RVP thermostats. After the entire air conditioning and heating system is installed, check each position’s function. The Cool Only thermostat will not have heat functions.
| Mode | Call | Operation | |
| 1 | Fan Low | No | GL-Fan Low (Gray) energized |
| 2 | Fan Hi | No | GH-Fan High (Green) energized |
| 3 | Cool On High | No | GH-Fan High (Green) energized |
| 4 | Cool On High | Yes | GH-Fan High (Green) energized, Y-Compressor (Yellow) energized |
| 5 | Cool On Low | No | GL-Fan Low (Gray) energized |
| 6 | Cool On Low | Yes | GL-Fan Low (Gray), Y-Compressor (Yellow) energized |
| 7 | Cool Auto Low | No | No function occurs |
| 8 | Cool Auto Low | Yes | GL-Fan Low (Gray) energized,
Y-Compressor (Yellow) energized |
| 9 | Cool Auto High | No | No function occurs |
| 8 | Cool Auto High | Yes | GH-Fan High (Green), Y-Compressor (Yel- low) energized |
| 9 | Heat Gas | No | No function occurs |
| 10 | Heat Gas | Yes | W-Furnace (White) energized |
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Contains FCC ID: WAP4110
