Introduction

This surface-mounted heating thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time.

Functions

• Large display can be clearly read with the background lighting.
• Easy to fit thermostat and receiver.
• Knob Button make it easy to use, press button to on/off thermostat, turn left/right to adjust the values. Non-programmable
• White Backlight
• The display shows the set temperature as well as the measured temperature.
• Temperature display in degrees Celsius.

Technical Data

• Thermostat operating voltage: 2 x AAA1.5 V, alkaline batteries.
• Backup storage: EEPROM
• Maximum voltage / (ohmic) load:  8A.
• Switch contacts: NO and NC.
• Temperature settings: 5°C ~ 30°C, 0.5°C increments.
• Accuracy: +/- 0.5°C
• Thermostat dimensions: Surface mounted, 135mm x 87.5 mm x 23.2mm.
• Color:  White
• IP protection rating: 20.

Temp. Calibration & Channel Pairing

Temp. Calibration: Turn off the thermostat, and press On/off button for 3 sec. to calibrate Temp. by pressing “+” and “-“ buttons.

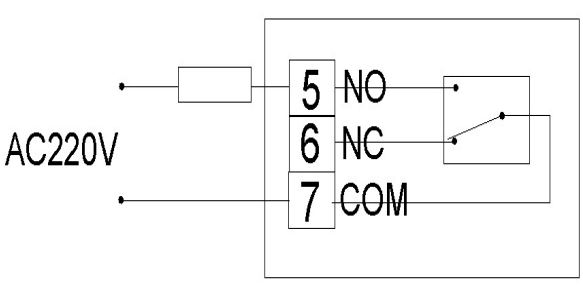

Wiring Diagram

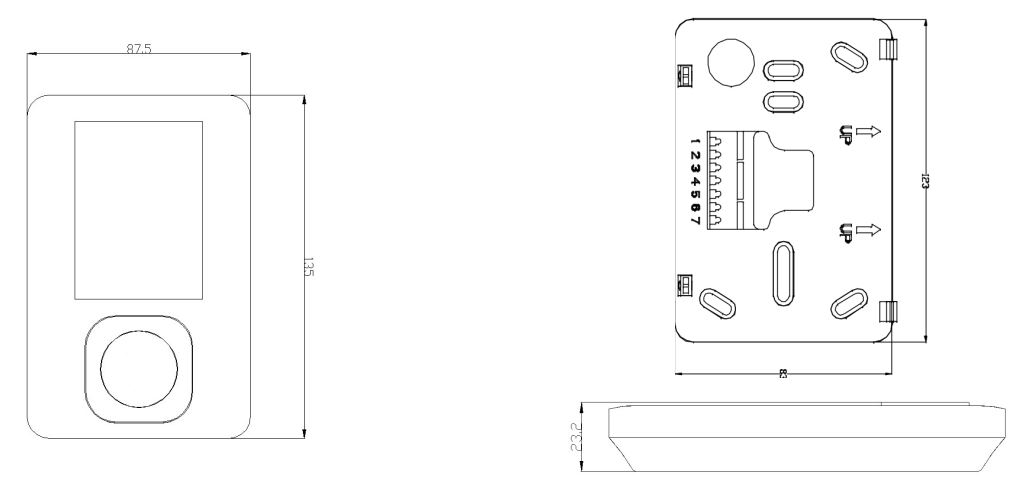

Dimensions
