Zhilande PCT513-W Wifi Touch Screen Thermostat
Introduction
The Zhilande PCT513-W WiFi Touch Screen Thermostat can be used to manage the temperature of a building’s heating and cooling systems. It has high-tech features including Wi-Fi and a touchscreen interface for easy temperature management. The thermostat’s WiFi connectivity paves the way for remote HVAC management and monitoring via a mobile app or online interface. With this feature, you may control your thermostat and make adjustments from any location with an internet connection. The touchscreen interface of the Zhilande PCT513-W thermostat delivers a user-friendly and intuitive control experience. A bright and responsive screen makes navigating and setting the temperature a breeze. The programmable thermostat allows users to customize temperature regimens according to their own needs and patterns of use. By altering the temperature at various times of the day or week, we may save electricity and reduce our carbon footprint. Energy-saving features including temperature setbacks, adaptive learning algorithms, and scheduling are common in Zhilande PCT513-W thermostats. These additions allow for more efficient use of energy and hence lower utility bills. The thermostat’s digital readout of room temperature keeps you abreast of environmental conditions at all times. The humidity levels in your home can be tracked with a humidity display, available on some models. Following the included directions, installing a Zhilande PCT513-W thermostat is usually a simple process. However, it is recommended that you get expert help if you are unfamiliar with HVAC systems or electrical connections. It’s worth noting that the Zhilande PCT513-W thermostat’s exact features and specs may change based on the individual model and version you purchase. Check the manufacturer’s requirements before buying to see whether they are compatible with your HVAC system and whether or not you can use voice assistants or have separate thermostats for different zones. Overall, the Zhilande PCT513-W WiFi Touch Screen Thermostat provides you with efficient temperature management and comfort because of its simplicity, energy economy, and remote control features.
Product Description
|
Product Name
|
Tuya Touchscreen Thermostat
|
|
System Mode
|
Heat, Cool, Auto, Off, Emergency Heat (Heat Pump only)
|
|
Fan Mode
|
On, Auto, Circle(adjustable)
|
|
Advanced
|
Setting temperature locally or remotely
Auto-changeover between heat and cool mode (System Auto) Compressor protection time is available for select Failure protection by cutting off all circuit relays Smart warmup, low-temperature protection |
|
Auto Mode Deadband
|
1.5° C, 3° F
|
|
Temp. Setpoint Span
|
0.5° C, 1° F
|
|
Wi-Fi
|
802.11 b/g/n @ 2.4GHz
|
|
Tx-Power
|
±2dBm
|
|
Radio
|
915MHZ
|
|

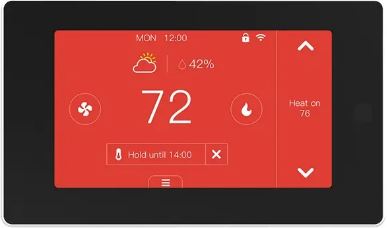

LCD Screen
|
4.3-inch color touch screen
|
|
PIR Sensor
|
Detect occupancy
Sensing Distance 4m, Angle 120° |
|
Electrical Rating
|
24 VAC, 1A Carry; 5A Surge 50/60 Hz
|
|
Switches/Relays
|
9 Latching type relay, 1A maximum loading
|
|
Temperature
|
Sensing Range: −40~125°C
Sensing Accuracy: ±1°C Response Time: 2min |
|
Humidity
|
Sensing Range: 0~100%
Sensing Accuracy: ±3% (20% ~80%) Response Time: 2min |
|
Operating Environment
|
0~ 50° C, 32 ~122° F
Humidity range: 5%~95% |
|
Storage Temperature
|
-30 ~ 60° C , -22° F ~ 140° F
|
|
Wiring
|
18 AWG, Requires both R and C wires from the HVAC System
|
|
Dimensions
|
135(L) × 77.36 (W)× 23.5(H) mm
|
|
Mounting Type
|
Wall Mounting
|
USAGE
Zhilande PCT513-W WiFi Touch Screen Thermostat is a thermostat used to manage the temperature of a building’s heating and cooling systems. Here’s how it’s typically put to use:
- The thermostat must be installed correctly before it may be used. Disconnect the power, take out the old thermostat, and plug its wires into the appropriate slots on the PCT513-W. Follow the included installation instructions or get help from a professional if you get stuck.
- After the thermostat has been mounted, make sure it is wired to a working outlet. Most HVAC systems already have the low-voltage power supply needed to run the PCT513-W thermostat.
- The PCT513-W thermostat can be set up with WiFi for remote monitoring and control. Thermostats with this capability require linking up to a WiFi system. Connect the thermostat to your home’s WiFi network using the thermostat’s interface or the app on your smartphone, per the manufacturer’s instructions.
- The PCT513-W thermostat’s touchscreen display makes it simple to set and check the temperature. Touch the screen to make selections and adjustments, and use gestures like swiping and tapping to navigate the menus.
- The thermostat’s principal purpose is to regulate the indoor temperature.
- The PCT513-W is a thermostat that can be adjusted to your preferred setting. Use the touchscreen interface to adjust the temperature up or down to your favorite setting.
- The heating, ventilation, and air conditioning system will be adjusted by the thermostat to the desired level.
- The majority of PCT513-W thermostats can be programmed to follow a set schedule. You can use this function to schedule varying temperatures for specific times of the day or week. Create a schedule using the thermostat’s interface or the app on your smartphone that works with your routine and preferences.
- The PCT513-W thermostat allows for remote control and monitoring via a smartphone app or web interface thanks to its built-in WiFi connectivity. Make sure you have the manufacturer’s app installed on your mobile device. You can view the thermostat’s settings and make changes from anywhere on the same WiFi network.
- Features that reduce energy consumption are standard on the PCT513-W thermostat, and they include temperature setbacks and programming capabilities. Make the most of these options to cut back on energy use and your monthly power bills. Reduce the thermostat’s temperature manually or by setting a schedule for when no one will be home.
- The thermostat’s touchscreen display shows the current temperature, the status of the system, and other useful data in real-time. Pay close attention to the status of the HVAC system and any warnings that may appear on the screen.
- To keep the thermostat working properly, it should be checked and cleaned on a regular basis. You should avoid touching the screen if dust or fingerprints are on it. If the thermostat requires batteries, replace them as directed by the manufacturer.
- You should always check the PCT513-W thermostat’s user manual for the most up-to-date information on proper installation, use, and maintenance.
Product Usage
Basic HVAC Control
- Supports 2H/2C multistage conventional system or 4H/2C Heat Pump system
- The 4-period and 7-day programming schedule on the device or through the APP
- Multiple HOLD options: Permanent Hold, Temporary Hold, Follow Schedule
- Automatic heating and cooling changeover
- Fan cycle mode periodically circulates fresh air for comfort and health
- Smart warmup, low-temperature protection
Advanced HVAC Control

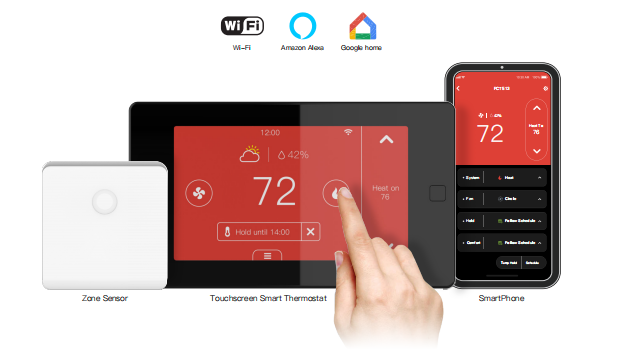

- Support up to 16 remote zone sensors for location-based temperature control
- Geofencing
- Preheat or precool your house before you get home
- Vacation mode
- Optional time settings for compressor short cycle protection delay
- No click sound when the thermostat starts work
- Wiring test
User Interaction
- 4.3” TFT LCD touchscreen
- Voice control: Amazon Alexa and Google Home
- System status indicated by different backlight colors
- The backlight brightness level is adjustable
- PIR motion detection
- Intuitive UI
Information & Notification
- 5-day weather forecast
- Indoor humidity sensing
- Multi-room temperature display
- Air Filter change reminder
- Unusual heating or cooling alert
Installation & Setup
- Wiring module is available to power your thermostat without a C-Wire having to run a fifth wire.
- Interactive wizard
- Built-In level for mounting
- Multi-level keypad lockout
Smart IoT Features
- Supports Wi-Fi 802.11 B/G/N 2.4
- Control the thermostat remotely using an APP or Web portal
- Access to multiple thermostats from a single APP or Web portal
- Private cloud guarantees data privacy
- Device-level and cloud-level API available for integration with 3rd party Cloud
FAQS
Zhilande PCT513-W Wireless Touch Screen Temperature Control.
Zhilande PCT513-W is a touchscreen thermostat with Wi-Fi connectivity.
Does the PCT513-W thermostat have any special features?
The PCT513-W is a WiFi-enabled touchscreen thermostat with programmability, energy-saving settings, and Wi-Fi connectivity. Explain how the wireless network operates. The thermostat can be linked to your home’s Wi-Fi network via Wi-Fi connectivity, allowing for remote access and control via a mobile app.
Is there a way for me to adjust the temperature using my phone?
The PCT513-W thermostat does include a mobile app that allows for remote control.
Can I use my voice to adjust the temperature?
Unfortunately, voice activation is not a feature of the Zhilande PCT513-W thermostat. On the other hand, it might work with well-known smart home platforms that already have voice control.
Can I program the thermostat to run on a weekly schedule?
The PCT513-W thermostat, in fact, lets you program seven days’ worth of temperature changes according to your tastes.
Does the thermostat work with HVAC systems that have more than one setting?
The Zhilande PCT513-W thermostat is suitable for use with the majority of commercially available, multi-stage HVAC systems.
Does the thermostat have geofencing capabilities?
The PCT513-W thermostat does not come equipped with built-in geofencing functionality. However, for the most accurate information, check with the manufacturer or product literature. Can I check the temperature and make changes from afar?
The PCT513-W thermostat’s mobile app allows for remote monitoring and control thanks to its Wi-Fi connectivity.
Does the thermostat feature an interactive touchscreen interface?
The PCT513-W thermostat, indeed, is operated via a touchscreen interface.
Can I check the thermostat for the present temperature and humidity?
In most cases, the thermostat will show you the relative humidity as well as the temperature.
Does the thermostat include a backlight to make it easier to read in the dark?
The backlight on many PCT513-W versions makes the display easy to view in low-light or gloomy settings.
Can you set the thermostat?
The PCT513-W thermostat can be programmed to allow for individualized heating and cooling programs.
Can I set the thermostat to a more frugal temperature?
Eco and vacation settings, along with other energy-saving options, are commonplace on today’s thermostats.
Does the PCT513-W thermostat need to be installed by a professional?
The PCT513-W thermostat is typically intended for DIY installation, while specific instructions may be necessary in some cases. If you’re not confident in your ability to install an HVAC system, though, you should seek the advice of an expert.
