Wengart WG803 Heating Thermostat User Manual

Wengart- LOGO

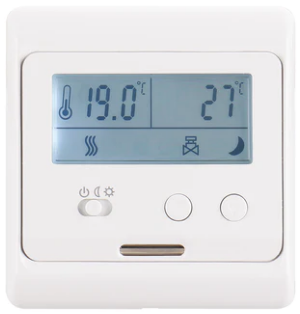

Wengart WG803 Heating Thermostat

Wengart- WG803- Heating- Thermostat - pro

Introduction

The Wengart WG803 Heating Thermostat is an advanced and user-friendly device designed to control and regulate the temperature in your home or office. It is a programmable thermostat that offers precise temperature management and energy efficiency, allowing you to create a comfortable and cost-effective environment. The WG803 thermostat features a sleek and modern design with a clear and easy-to-read display. It offers a range of programmable options, including temperature settings, timers, and scheduling capabilities. With its intuitive interface, you can easily set up customized heating schedules to match your daily routine, ensuring that your space is heated efficiently when needed and saving energy when not in use.

One of the key features of the WG803 thermostat is its smart functionality. It can be connected to your home’s Wi-Fi network, allowing you to control and monitor the thermostat remotely through a dedicated mobile app. This feature provides you with the flexibility to adjust the temperature settings even when you’re away from home, ensuring that you always come back to a comfortable environment while also maximizing energy savings. Furthermore, the WG803 thermostat incorporates advanced temperature sensors and algorithms to accurately detect and maintain the desired temperature. It utilizes adaptive learning technology to analyze your usage patterns and make automatic adjustments over time, optimizing energy consumption and reducing heating costs without sacrificing comfort.

In terms of compatibility, the Wengart WG803 Heating Thermostat is designed to work with most heating systems, including central heating, electric heaters, and radiant floor heating. It supports multiple heating zones, allowing you to control different areas of your home independently for personalized comfort. The Wengart WG803 Heating Thermostat offers a combination of convenience, energy efficiency, and smart features to enhance your heating experience. With its user-friendly interface, programmable options, and remote control capabilities, it provides a convenient way to manage and optimize your heating system while reducing energy consumption and saving costs.

Specification

  • Voltage: AC110V/230V 50/60Hz
  • Ambient temperature display accuracy: ±1℃
  • Temperature control accuracy: ±1℃
  • Power Consumption: 2W
  • Maximum Resistive Load: 3/16A
  • Display: LCD;
  • Setting Range: 5~35℃(Can adjust to 5-90℃)
  • External Limitation 5~60℃(Factory setting:35℃)
  • Switch Differential 0.5-10℃adjustable(Factory setting:±1℃)
  • Ambient temperature: -5~50℃
  • Sensor: NTC internal/external sensor
  • Package Content: 1 x Thermostat,2 x Screws,1 x Manual
  • Dimensions: 86 mm x 86 mm x 38mm;
  • Shell Material: PC+ABS
  • Protective housing: IP20
  • More quantity more discount, send an Email to get a quotation

Included in the Box

  • Thermostat
  • User Guide
  • Screws
  • External Sensor

Usage

  • Power On: Once the thermostat is in place, make sure it has power. This could mean plugging it into a power source or putting batteries in, if needed.
  • Programming: Set up a heating schedule by using the thermostat’s programming functions. You can set different temperature values for different times of the day or different days of the week. Use tools like the ability to lower the temperature at certain times or the “vacation mode” when you’re away.
  • Remote handle: If you want to handle the thermostat from afar, download the companion smartphone app (if one is available) and connect it to the WG803 thermostat. Follow the steps in the app to connect the devices and set the temperature from afar.
  • Voice Control: If you want to, you can connect the WG803 thermostat to voice control systems that work with it, such as Amazon Alexa or Google Assistant. Follow the directions from the manufacturer to connect the devices and use your voice to control the thermostat.
  • Maintenance: Clean the touchscreen display of the thermostat regularly with a soft, dry cloth to make sure it can be seen clearly. If the batteries need to be changed, do so.

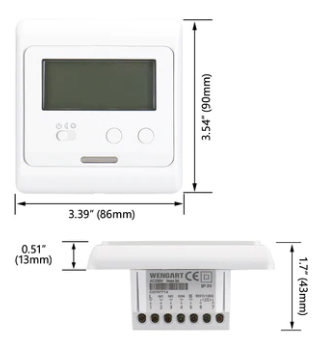

Dimension

Wengart- WG803- Heating- Thermostat - 1

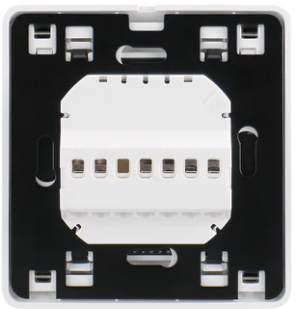

Back Wiring Diagram

Wengart- WG803- Heating- Thermostat - 2

FAQS

What is the Wengart WG803 Heating Thermostat?
The Wengart WG803 Heating Thermostat is a programmable thermostat designed for controlling heating systems in residential or commercial spaces.

What type of heating system is the WG803 compatible with?
The WG803 is compatible with most common heating systems, including electric heating, gas boilers, and underfloor heating.

Is the WG803 thermostat wireless or does it require a wired connection?
The WG803 thermostat operates wirelessly, allowing for flexible installation and convenient control.

Does the WG803 support smartphone integration?
Yes, the WG803 thermostat can be paired with a smartphone app, allowing users to control their heating remotely.

What programming options are available on the WG803 thermostat?
The WG803 offers various programming options, including daily and weekly scheduling, temperature setbacks, and vacation mode.

Does the WG803 thermostat have a touchscreen display?
Yes, the WG803 features a user-friendly touchscreen display for easy navigation and temperature adjustments.

Can the WG803 thermostat learn and adapt to user preferences?
No, the WG803 thermostat does not have learning capabilities. It relies on manual programming for temperature control.

Does the WG803 support multi-zone heating control?
Yes, the WG803 thermostat can be used for multi-zone heating control by pairing it with additional compatible devices.

Does the WG803 have a built-in temperature sensor?
Yes, the WG803 has a built-in temperature sensor that accurately measures the ambient temperature.

Can the WG803 thermostat display both Celsius and Fahrenheit?
Yes, the WG803 provides the option to display temperature readings in either Celsius or Fahrenheit, based on user preference.

Does the WG803 have an energy-saving mode?
Yes, the WG803 offers an energy-saving mode that helps optimize energy consumption and reduce heating costs.

Is the WG803 thermostat compatible with voice control systems?
Yes, the WG803 thermostat can be integrated with popular voice control systems like Amazon Alexa or Google Assistant for hands-free operation.

Does the WG803 have a backlight for easy visibility in low-light conditions?
Yes, the WG803 thermostat features a backlight that ensures clear visibility of the display even in low-light environments.

Can the WG803 be used for cooling systems as well?
No, the WG803 thermostat is specifically designed for heating control and is not suitable for cooling systems.

What is the warranty period for the WG803 thermostat?
The warranty period for the WG803 thermostat may vary. It is recommended to consult the manufacturer’s documentation or contact customer support for precise warranty information.
