Wengart WG702 Electronic Thermostat User Manual

Wengart- LOGO

Wengart WG702 Electronic Thermostat

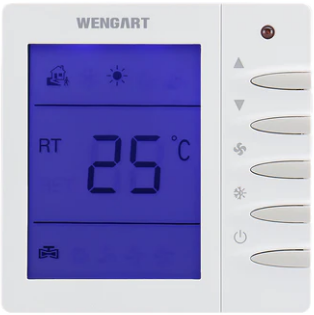

Wengart- WG702- Electronic- Thermostat - pro

Introduction

The Wengart WG702 Electronic Thermostat is a cutting-edge device designed to provide precise temperature control and enhance energy efficiency in various heating and cooling systems. It offers advanced features and a user-friendly interface, making it a popular choice for both residential and commercial applications. The WG702 thermostat utilizes electronic technology to accurately monitor and regulate the temperature within a space. It replaces traditional mechanical thermostats, offering greater accuracy and more precise control over the heating and cooling systems. With its sleek and modern design, it seamlessly blends into any environment. One of the key features of the Wengart WG702 Electronic Thermostat is its programmability. Users can set up customized schedules to automatically adjust the temperature at different times of the day or week. This capability allows for energy savings by optimizing the heating or cooling operation based on occupancy patterns and individual preferences.

The thermostat’s LCD display provides clear and intuitive information about the current temperature, setpoints, and other settings. It also offers easy-to-use controls, allowing users to make adjustments with just a few button presses. Some models may even incorporate touchscreens for an enhanced user experience. In addition to programmability, the WG702 thermostat may include features such as temperature calibration, vacation mode, and adaptive learning. Temperature calibration ensures that the displayed temperature matches the actual ambient temperature, while vacation mode allows users to temporarily suspend the programmed schedule when they are away from home or the premises. Adaptive learning algorithms can analyze the user’s behavior and automatically adjust the settings to provide optimal comfort and energy efficiency.

Compatibility is another advantage of the Wengart WG702 Electronic Thermostat. It is designed to work with a wide range of heating and cooling systems, including central HVAC systems, heat pumps, electric furnaces, and more. This versatility makes it suitable for various residential and commercial applications, providing consistent comfort and control. The Wengart WG702 Electronic Thermostat combines advanced technology, user-friendly features, and energy efficiency to deliver an excellent temperature control solution. With its programmability and compatibility, it offers convenience and comfort while helping to reduce energy consumption and costs. Whether in homes, offices, or other spaces, the WG702 thermostat is a reliable choice for maintaining the desired indoor climate.

Specification

  • Ambient temperature display accuracy: ±1℃
  • Temperature control accuracy: ±1℃
  • Power Supply Voltage: 110V/220V AC 50/60Hz
  • Power Consumption: <2W
  • Display: LCD;
  • Backlight: Blue
  • Installation Method: Conceal Installation
  • Temperature Control Range:5-35℃
  • Load Current: 10A
  • Shell Material: PC+ABS
  • Levels of Protection: IP20
  • Package Content: 1 x Thermostat,2 x Screws,1 x English Manual
  • Dimensions: 86 mm x 86 mm x 38mm;
  • Weight:195g
  • More quantity more discount, send an Email to get a quotation

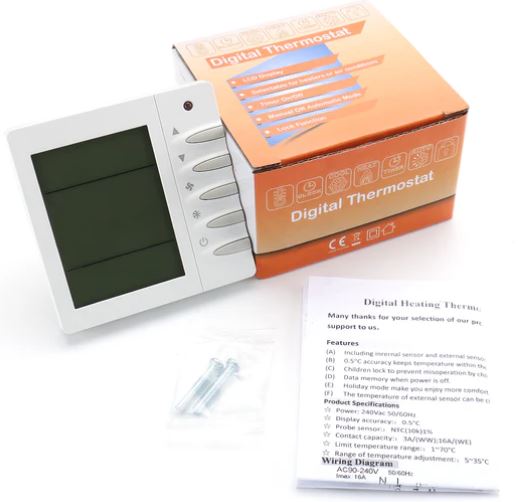

Included in the Box

Wengart-WG702-Electronic-Thermostat-FIG.1

  • Thermostat
  • User Guide
  • Screws
  • External Sensor

INSTRUCTION

  • This underfloor heating thermostat is compatible with water underfloor heating systems, recessed installation, fits into 86 European-style concealed boxes, CE approved. With an output of AC230V and a maximum current of 10A, it provides all the control you need to save money and energy and maximize comfort.
  • Room thermostat can set the temperature range 5-35 ℃, set the temperature you need after power on, without any other operation, suitable for people who do not need complex functions
  • Home thermostat with two modes at home and away from home, two set temperatures with one key switch
  • Home thermostat with calibration temperature function, when the difference between the measured temperature and the actual temperature of the room is large, it can be calibrated by 1°C.
  • Home thermostat with blue backlight display, automatically dimmed after 20s no operation, convenient for setting the thermostat in dark environment.
  • The Home thermostat has a power failure memory function, which can save information even in case of a power failure after parameter setting.
  • Home thermostat with anti-freeze function, shutdown state, if the measured room temperature is lower than 5 ° C (1-5 ° C can be set), will automatically turn on the heating to prevent freezing of water pipes.
  • The room thermostat has a start-up temperature difference function, and the start-up temperature difference can be adjusted between 1 and 5°C. For example, if the set temperature is 20°C and the start temperature difference is 1°C, the thermostat will turn off the heating when the room temperature is 21°C and above, and turn on the heating when the room temperature is 19°C and below.
  • The room thermostat can be selected to control normally open or normally closed electric heating actuators, which can be connected to the corresponding ports as needed.

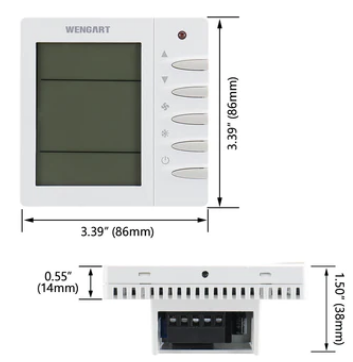

Dimension

Wengart- WG702- Electronic- Thermostat -2

Scope Of Delivery

Wengart- WG702- Electronic- Thermostat -1

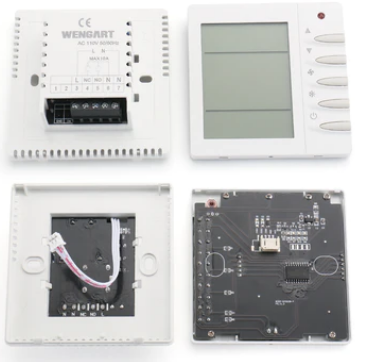

Assembly

Wengart- WG702- Electronic- Thermostat -3

FAQS

Q1: What is the Wengart WG702 Electronic Thermostat?
A1: The Wengart WG702 Electronic Thermostat is a device used for controlling and regulating temperature in various applications.

Q2: What are the main features of the WG702 Electronic Thermostat?
A2: The main features of the WG702 Electronic Thermostat include a digital display, programmable temperature settings, precise temperature control, and compatibility with various heating and cooling systems.

Q3: How does the WG702 Electronic Thermostat work?
A3: The WG702 Electronic Thermostat uses sensors to detect the current temperature and compares it to the desired temperature set by the user. It then activates or deactivates the connected heating or cooling system accordingly.

Q4: Is the WG702 Electronic Thermostat battery-powered?
A4: Yes, the WG702 Electronic Thermostat is battery-powered. It typically uses standard AA batteries.

Q5: Can the WG702 Electronic Thermostat be programmed for different temperature settings throughout the day?
A5: Yes, the WG702 Electronic Thermostat has a programmable feature that allows users to set different temperature settings for different times of the day.

Q6: What types of heating and cooling systems are compatible with the WG702 Electronic Thermostat?
A6: The WG702 Electronic Thermostat is compatible with a wide range of heating and cooling systems, including central heating, air conditioning, electric heaters, and heat pumps.

Q7: Does the WG702 Electronic Thermostat have a built-in temperature display?
A7: Yes, the WG702 Electronic Thermostat features a digital display that shows the current temperature and other relevant information.

Q8: Can the WG702 Electronic Thermostat be controlled remotely?
A8: No, the WG702 Electronic Thermostat does not have remote control capabilities. It is designed to be manually operated.

Q9: Does the WG702 Electronic Thermostat have a backlight for easy visibility in dark environments?
A9: Yes, the WG702 Electronic Thermostat typically has a backlight feature that enhances visibility in low-light conditions.

Q10: Can the WG702 Electronic Thermostat be used for both residential and commercial applications?
A10: Yes, the WG702 Electronic Thermostat is suitable for both residential and commercial applications, providing temperature control in various settings.

Q11: Does the WG702 Electronic Thermostat have a vacation mode?
A11: Yes, the WG702 Electronic Thermostat often includes a vacation mode that allows users to set a specific temperature while they are away for an extended period.

Q12: Is the WG702 Electronic Thermostat easy to install?
A12: The installation process may vary depending on the specific system and wiring setup, but generally, the WG702 Electronic Thermostat is designed to be user-friendly and easy to install.

Q13: Can the WG702 Electronic Thermostat be used with a multi-zone heating and cooling system?
A13: Yes, the WG702 Electronic Thermostat can be used with multi-zone systems, allowing independent temperature control in different areas or rooms.

Q14: Does the WG702 Electronic Thermostat have a filter replacement reminder?
A14: Some models of the WG702 Electronic Thermostat may include a filter replacement reminder feature that alerts users when it’s time to replace the air filter in their HVAC system.

Q15: What is the warranty period for the WG702 Electronic Thermostat?
A15: The warranty period for the WG702 Electronic Thermostat may vary depending on the manufacturer, but it is typically around 1 to 2 years.
