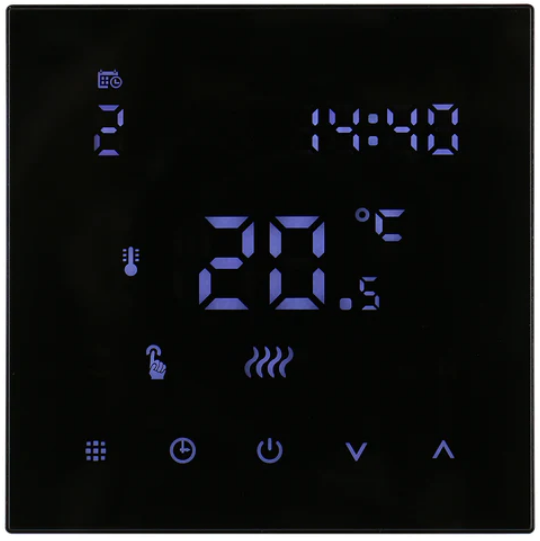

Wengart WG607 Touchscreen Programmable Thermostat
Specification
- Working Voltage: AC90～240V 50/60Hz
- Power Consumption: 2W
- Setting Range: 5～70℃(can adjust to 20-70℃）
- Switch Differential: 0.5～5℃ adjustable (factory setting±1℃)
- Ambient Temperature: -5～50℃
- Ambient Temperature display accuracy：±0.5℃
- Temperature Control Accuracy: ±0.5℃
- Measured Range:1～70℃
- Button: Capactive Touch Button
- Inside Sensor: NTC 10k @25℃
- Protective Houseing: IP20
- Housing Material: Anti-flammable PC
- Wiring Terminal: one terminal can be connected to 2*1.5mm2 or 1*2.5mm2 wire at most
- Package Content: 1 x Thermostat,2 x Screws,1 x Manual
- Dimensions :86mm×86mm×27mm
- Output: Switch Relay
- Weight: 234g</li>
- Installation Hole Distance: 60mm
- Installation Method: wall-mounted
Introduction
The Wengart WG607 TouchScreen Programmable Thermostat is a cutting-edge device designed to provide advanced temperature control and energy efficiency for residential and commercial HVAC (heating, ventilation, and air conditioning) systems. With its sleek and user-friendly touchscreen interface, the WG607 offers intuitive operation and precise programming capabilities. One of the standout features of the WG607 is its programmable functionality, allowing users to schedule temperature adjustments based on their daily routines and preferences. This feature enables you to set different temperature levels for specific times of the day, ensuring optimal comfort while minimizing energy consumption and reducing utility costs. The touchscreen interface of the WG607 makes it easy to navigate through various settings and programming options. It provides a clear and vibrant display, allowing you to view and adjust temperature settings with a simple touch. The interface also offers additional features such as weather forecasts, humidity monitoring, and energy usage reports, providing valuable information for efficient temperature management. The WG607 is compatible with a wide range of heating and cooling systems, including central air conditioning, heat pumps, and electric or gas furnaces. This versatility makes it suitable for both residential homes and commercial buildings.
Energy efficiency is a key focus of the WG607, as it helps users reduce their carbon footprint and save on energy costs. The thermostat includes features like adaptive learning, which analyzes temperature patterns and adjusts settings automatically for optimal efficiency. It also provides energy-saving recommendations and real-time feedback on energy consumption, empowering users to make informed decisions about their energy usage. In terms of installation, the WG607 is designed for easy setup and can typically replace existing thermostats without major modifications. It supports both battery and hardwired power options, providing flexibility in installation locations. The Wengart WG607 TouchScreen Programmable Thermostat offers advanced temperature control, energy efficiency, and user-friendly features, making it an excellent choice for those seeking optimal comfort and cost savings in their HVAC systems. Wengart Weekly circulation digital programmable thermostat has 6 events every day, providing an energy-saving and comfortable living environment, easy to install, and convenient to use.This touchscreen thermostat is heating-specific, multi-functional, and has a large LCD display. Manual mode and program mode could be selected.Back light for easy viewing. According to the result of comparing the indoor temperature with the set temperature, it controls the start and stop of the heating equipment by relay to achieve constant indoor temperature and energy saving.Fits 86*86 mm or European 60mm round box.
Included in the Box
- Thermostat
- User Guide
- Screws
- External Sensor

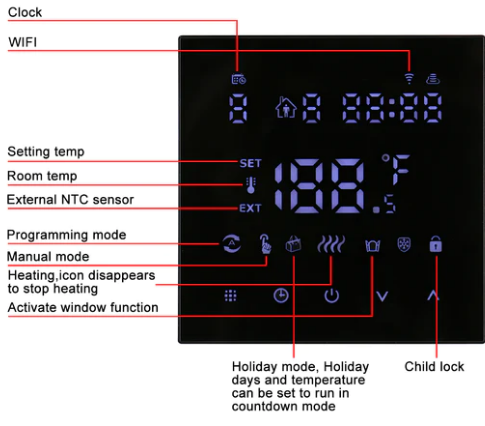

Display Symbol

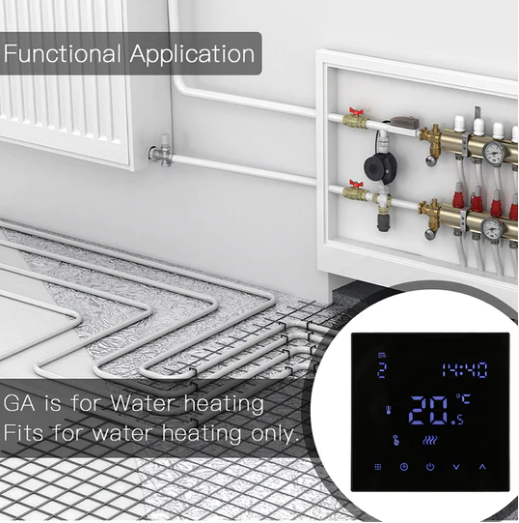

Function Application
Instruction
- This programmable floor heating thermostat is compatible with water floor heating systems, flush-mounted, suitable for 86 European cassettes, and CE certified. Output AC230V, maximum current 3A, provides you with all the control you need to save money and energy and maximize comfort.
- The room thermostat can freely choose a built-in air sensor or a 3m external sensor probe. When using an external sensor, it is suitable for a 3950, 10K=25°C sensor
- The room thermostat adopts touch buttons, and the temperature range can be set from 1-70°C. It has manual mode, programming mode and holiday mode to meet your unique needs.
- The room thermostat has a one-week programming function, which can automatically switch to the temperature you need within the set time. There are 6 fixed time periods on working days and 2 fixed time periods on rest days. At the same time, you can freely choose 5 days, 6 days or 7 days. Gives you the freedom to plan your weekly schedule and helps you save on energy bills.
- The room thermostat can be configured to automatically turn off the heating when it detects a rapid drop in room temperature (such as when a window is opened) to avoid wasting energy.
The room thermostat has a temperature calibration function. When the measured temperature is far from the actual room temperature, it can be calibrated by 1°C. - The digital thermostat has an LCD display, and the large screen displays the room temperature, set temperature, current heating status and current time, which is convenient for understanding the current status of the thermostat.
- The room thermostat has a white backlight, which lights up when the thermostat is operated, and automatically turns off after 10 seconds of no-button operation (the time can be set from 5 to 30 seconds), which is convenient for setting the thermostat in a dark environment.
- The room thermostat has a power-off memory setting parameter function, and the information can be saved for a long time in the power-off state after the parameter setting.
- The room thermostat can lock the buttons, with half-lock and full-lock functions, the half-lock can be turned on and off, and the full-lock all buttons will not work, preventing children from accidentally touching
- The room thermostat has the function of starting temperature difference, and the starting temperature difference can be adjusted between 0.5 and 2.5°C. For example, if the set temperature is 20°C and the start-up temperature difference is 1°C, the thermostat will turn off the heating when the room temperature is 21°C and above, and turn on the heating when the room temperature is 19°C and below.
- The room thermostat has an anti-freezing function. In the off state, if the measured indoor temperature is lower than 5°C (1-10°C can be set), it will automatically turn on the heating to prevent the water pipe from freezing.
- The room thermostat can be configured to turn on the descaling function. After it is turned on, the water, electricity, and heating system will not run for 300 hours, and it will be turned on for a period of time to prevent dirt from clogging the water pipes.

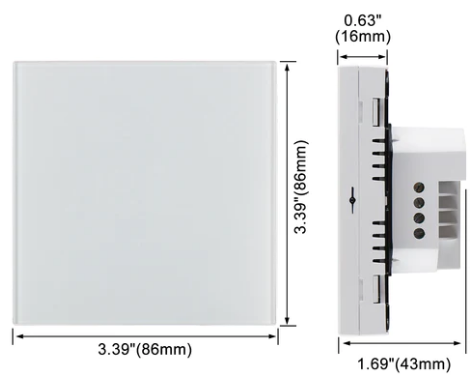

Dimension
Features
- Digital Room Thermostat Automatically obtain the surrounding temperature,Precise control of the temperature you want, temperature control accuracy of up to 0.5 ℃, Set temperature adjustment by touching the buttons
Free to choose Manual mode/Programme mode/Holiday mode according to different applications - Write a setting program through the programmable thermostat to make the thermostat work according to the set rules，6+1,5+2 and 7 days weekly schedule of 6 times period, you can do DIY programming, to provide you with maximum convenience in different situations
- Room Thermostat Timer: You can adjust the current time after entering the clock calibration interface, You can calibrate the room measurement temperature
- Two sensors: You can choose between built-in or external sensors with this water underfloor heating thermostat
- Power failure memory: No need to worry about a sudden power failure, smart thermostat will remember all settings
- The heating thermostat bandwidth can be adjusted from 0.5 to 5°C. For example, if the bandwidth is set to 1°C and the set temperature is 20°C, the heating will be turned off at 21°C and above, and turned on at 19°C and below.
- Child lock: Keypad locking function is designed to lock the room thermostat to avoid misoperation by children
- LCD display digital thermostat with backlight, simple to operate and easy to read even in the dark
- More functions can be set by entering the extended menu in the off state

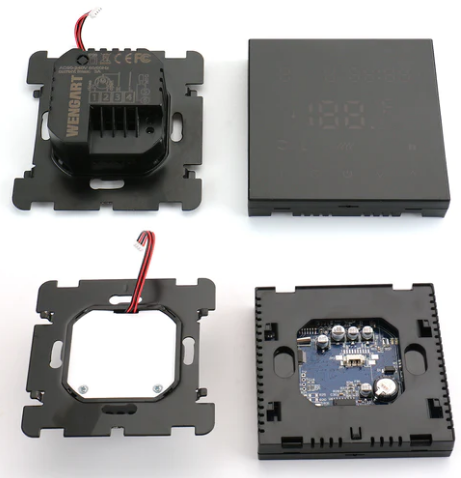

Assembly
FAQS
Q: What is the purpose of the Wengart WG607 TouchScreen Programmable Thermostat?
A: The WG607 is designed to provide advanced temperature control and energy efficiency for HVAC systems.
Q: Does the WG607 have a touchscreen interface?
A: Yes, the WG607 features a sleek and user-friendly touchscreen interface for easy operation.
Q: Can I program temperature settings on the WG607?
A: Absolutely! The WG607 offers programmable functionality, allowing you to schedule temperature adjustments based on your preferences and daily routines.
Q: What types of HVAC systems is the WG607 compatible with?
A: The WG607 is compatible with a wide range of systems, including central air conditioning, heat pumps, and electric or gas furnaces.
Q: Does the WG607 provide weather forecasts?
A: Yes, the WG607’s touchscreen interface can display weather forecasts, helping you plan your temperature settings accordingly.
Q: Can I monitor humidity levels with the WG607?
A: Yes, the WG607 includes humidity monitoring, providing you with information about indoor humidity levels.
Q: Does the WG607 offer energy usage reports?
A: Yes, the WG607 provides energy usage reports, giving you valuable insights into your energy consumption patterns.
Q: Does the WG607 have adaptive learning capabilities?
A: Yes, the thermostat features adaptive learning, which analyzes temperature patterns and adjusts settings automatically for optimal energy efficiency.
Q: Can the WG607 recommend energy-saving measures?
A: Yes, the WG607 offers energy-saving recommendations based on your usage patterns and temperature settings.
Q: Can I view real-time feedback on energy consumption?
A: Yes, the WG607 provides real-time feedback on energy consumption, helping you make informed decisions about your energy usage.
Q: Is the WG607 easy to install?
A: Yes, the WG607 is designed for easy installation and can typically replace existing thermostats without major modifications.
Q: Does the WG607 support both battery and hardwired power options?
A: Yes, the WG607 offers the flexibility to be powered by either batteries or hard wiring.
Q: Can I use the WG607 in a commercial building?
A: Absolutely! The WG607 is suitable for both residential homes and commercial buildings.
Q: Is the WG607 compatible with smart home systems?
A: While specific compatibility may vary, the WG607 is designed to integrate with many smart home systems, allowing for convenient control and automation.
Q: Does the WG607 come with a warranty?
A: Warranty terms may vary, but the WG607 typically comes with a manufacturer’s warranty to cover any potential defects or malfunctions.
