Wengart WG505 Weekly Programming Room Thermostat

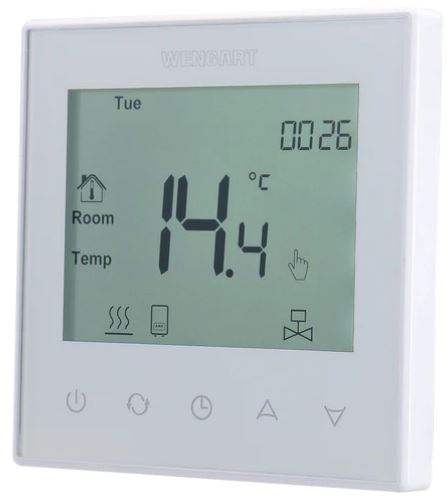

Wengart-WG505-Weekly-Programming-Room-Thermostat-product

Introduction

The thermostat uses professional industrial chip, robust anti-interference defenses, and high level of general dependability. It includes six daily settings on its LCD screen for weekly programming. Both manual and program modes were available. For controlling electric heaters or the on/off valve actuator used in hydronic floor heating, the thermostat is advised. For the management of direct electric systems and warm-water (floor) heating systems used in commercial, residential, light industrial buildings, etc.

  1. This CE-certified, flush-mounted, 86 European cassettes compatible programmable floor heating thermostat works with electric floor heating systems. You have complete flexibility to enhance comfort while maximizing energy and money savings thanks to the output AC230V and maximum current 16A.
  2. The room thermostat uses touch buttons, has temperature range of to 60 °C, and allows the user to freely choose between manual or programmable mode depending on the use.
  3. The room thermostat features one-week programming feature that enables it to change to the temperature you need automatically within the predetermined period. On working days, there are six defined time periods, and on rest days, there are two. You may freely choose days, days, or days at the same time. The temperature and associated time may be changed at will.
  4. The thermostat in the room may be used to calibrate the temperature. It can be calibrated to within 0.1°C of accuracy even when the difference between the recorded temperature and the actual temperature of the room is substantial.
  5. digital thermostat with an LCD display and glass panel can successfully guard against screen scratches. The big screen makes it simple to grasp the current condition of the thermostat by displaying the current time, room temperature, set temperature, current heating status, and current temperature.
  6. The electric floor heating thermostat, which by default utilizes two sensors, includes an exterior sensor that checks the floor’s temperature and may turn off the heating when it rises beyond the set limit. You may easily choose an internal or external sensor.
  7. The room thermostat includes bright backlight that illuminates when it is turned on and immediately shuts off after 30 seconds without the need for button pressing, making it easy to adjust the temperature in low light.
  8. The room thermostat includes power-off memory setting parameter function, and after parameter setting, the information may be stored for considerable amount of time in the power-off state.
  9. The buttons on the room thermostat may be locked. All the buttons won’t function once the lock is activated, preventing toddlers from unintentionally touching them. The beginning temperature differential feature on the room thermostat allows users to choose the difference between 0.5 and 10°C.
  10. The thermostat will turn off the heating when the room temperature is 21°C or higher and switch it on when the room temperature is 19°C or lower, for instance, if the set temperature is 20°C and the beginning temperature difference is 1°C.

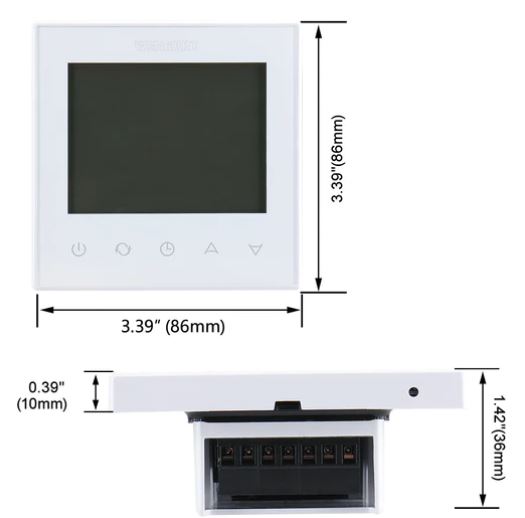

DIMENSION

Wengart-WG505-Weekly-Programming-Room-Thermostat-FIG.1

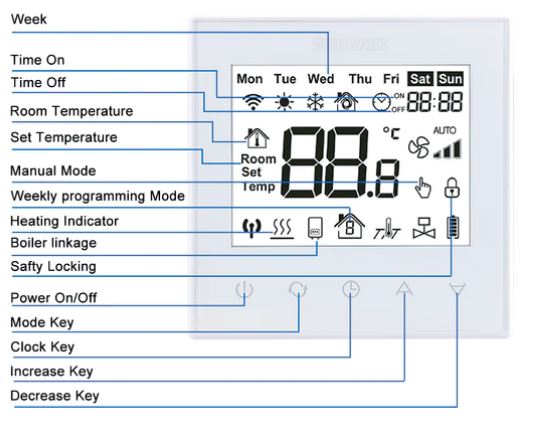

DISPLAY

Wengart-WG505-Weekly-Programming-Room-Thermostat-FIG.2

SPECIFICATION

  • Ambient temperature display accuracy:±0.1℃
  • Temperature control accuracy: ±0.5℃
  • Power comsumption:2W
  • Power Supply Voltage: AC110V/230V 50/60Hz
  • Installation Method: Conceal Installation
  • Setting range:5-35℃( Can be modified to 5℃-60℃)
  • Housing Material: Anti-Flammable PC Load current:≤3A
  • Sensor: Build-in sensor Installation hole distance: 60mm
  • Protective housing: IP21
  • Dimensions:86mm×86mm×38mm
  • Package Content: 1 x Thermostat,2 x Screws
    More quantity more discount, send an Email to get a quotation

USAGE

room’s heating and cooling systems may be easily and precisely controlled with the Wengart WG505 Weekly Programming Room Thermostat. Here is quick guide on how to use the thermostat:

  • Installation: Mount the thermostat on the wall and attach the necessary cables from your heating or cooling system by following the installation instructions. Before installation, make sure the power is off. Turn on your heating or cooling system when the thermostat has been correctly placed. The LCD screen of the thermostat should show the current interior temperature.
  • Programming: Set the preferred temperature schedules for each day of the week to take benefit of the weekly programming feature. The programming choices are often accessed through buttons or menu interface on the thermostat. For further information on setting up the programming, see the user handbook.
  • Manual Adjustments: To manually change the temperature, use the thermostat’s up and down buttons to raise or lower the desired setting. Until the next scheduled schedule change or until you manually modify the temperature again, the thermostat will remain this setting.
  • Temperature Overrides: In certain circumstances, you may wish to momentarily disregard the preset values. The majority of thermostats contain temporary override capability that lets you change the temperature for certain time. Once the allotted time has passed, the override will return to the preprogrammed defaults.
  • Features that Save Energy: The WG505 thermostat often has energy-saving options including temperature settings for times when it is not in use. Lowering heating or cooling while the room is empty, these features aid in energy efficiency.
  • Cleaning the surface of the thermostat with gentle, dry cloth will keep it clean. Avoid using any chemicals or harsh cleansers that can harm the device. To make sure the thermostat operates correctly, regularly check the battery condition and replace them as necessary.
  • Consult the troubleshooting section of the user handbook if you have any problems with the thermostat. It could provide advice on how to handle typical issues. For further help, if the problem continues, get in touch with the manufacturer’s customer service.

Faqs

The Wengart WG505 Weekly Programming Room Thermostat is what, exactly?
A programmable room thermostat called the Wengart WG505 is used to regulate a room’s heating and cooling systems.

What distinguishing qualities does the WG505 thermostat have?
A: The WG505 thermostat has an LCD display, accurate temperature control, a weekly programming feature, and compatibility with a range of heating and cooling systems.

What is the operation of the weekly programming function?
A: To ensure maximum comfort and energy efficiency, you may create various temperature settings for each day of the week using the weekly programming tool.

Are all heating and cooling systems compatible with the WG505 thermostat?
The majority of typical heating and cooling systems, including boilers, furnaces, heat pumps, and air conditioners, are compatible with the WG505 thermostat.

Do the thermostat’s installation instructions come with it?
A: The WG505 thermostat comes with thorough installation instructions to help you with the setup.

Can I manually change the temperature on the WG505 thermostat?
A: If you’d want to temporarily override the scheduled settings, the thermostat does enable manual temperature changes.

Is the WG505 thermostat’s display backlit?
A: The thermostat has a backlit LCD display for easy viewing in a variety of lighting settings.

Is it possible to preset various temperature settings at various times of the day?
A: You may set several temperature intervals throughout the day on the WG505 thermostat to get your preferred comfort levels.

Do the thermostat’s energy-saving functions exist?
A: Yes, the WG505 thermostat has energy-saving functions including vacation settings and temperature setbacks during times of inactivity.

Can I remotely operate the WG505 thermostat?
A: The WG505 thermostat lacks integrated remote control functionality. However, you may see if there are any possibilities for appropriate smart home integration.

In case of a power loss, does the thermostat include a battery backup?
A: The WG505 thermostat usually features a battery backup that keeps its settings in place when there is a power loss.

A: The thermostat may be locked to prevent unauthorized modifications.
A lock mechanism is included on certain WG505 thermostat models to stop unauthorized tampering with the temperature settings.

What temperature range does the WG505 thermostat support?
A: The WG505 thermostat normally supports temperatures between 40°F (4°C) to 90°F (32°C).

Does the thermostat show the current temperature of the room?
A: The WG505 thermostat does indeed show the current temperature of the room on its LCD screen.

Is it simple for non-techies to use the WG505 thermostat?
A: The WG505 thermostat is intended to be user-friendly, with simple controls and detailed instructions, making it usable by people of all technical backgrounds.
