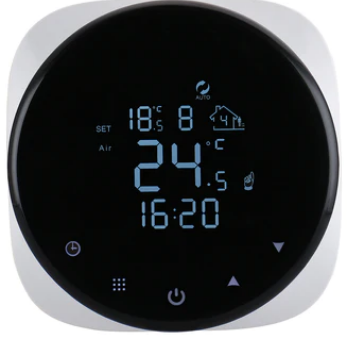

Wengart WG316 7-day Programmable Thermostats
Specification
- Working Voltage: AC90~240V 50/60Hz
- Power Consumption: 2W
- Setting Range: 5~70℃(can adjust to 20-70℃)
- Switch Differential: 0.5~5℃ adjustable (factory setting±1℃)
- Ambient Temperature: -5~50℃
- Ambient Temperature display accuracy:±0.5℃
- Temperature Control Accuracy: ±0.5℃
- Measured Range:1~70℃
- Button: Capacitive Touch Button
- Inside Sensor: NTC 10k @25℃
- Protective Houseing: IP20
- Housing Material: Anti-flammable PC
- Wiring Terminal: one terminal can be connected to 2*1.5mm2 or 1*2.5mm2 wire at most
- Package Content: 1 x Thermostat,2 x Screws,1 x Manual
- Dimensions :86mm×86mm×27mm
- Output: Switch Relay
- Weight: 234g</li>
- Installation Hole Distance: 60mm
- Installation Method: wall-mounted
Introduction
The Wengart WG316 7-day Programmable Thermostat is a state-of-the-art device designed to provide efficient temperature control for your home or office. With its advanced programming capabilities, this thermostat allows you to create customized schedules for heating and cooling, ensuring optimal comfort while maximizing energy savings. The WG316 features a sleek and modern design, complementing any interior decor. Its user-friendly interface makes it easy to navigate and program, even for those who are not tech-savvy. The large, backlit display provides clear visibility and allows you to easily read and adjust the settings.
One of the key features of the Wengart WG316 is its 7-day programming capability. This means that you can set different temperature settings for each day of the week, tailoring the thermostat’s operation to match your daily routine. Whether you prefer to have a cooler environment during the night or warmer temperatures in the morning, the WG316 allows you to create a personalized schedule that suits your needs. Additionally, the WG316 offers multiple modes, including heating, cooling, and auto, to accommodate various weather conditions and seasons. It also features a vacation mode, which allows you to temporarily override the programmed settings when you’re away, helping you save energy and reduce utility costs.
The thermostat is compatible with most HVAC systems, making it a versatile choice for both residential and commercial applications. It offers precise temperature control and can help you achieve energy efficiency by automatically adjusting the temperature based on your programmed settings. The Wengart WG316 7-day Programmable Thermostat is a reliable and user-friendly device that provides customizable temperature control, energy savings, and convenience. With its advanced features and modern design, it offers a great solution for enhancing comfort and reducing energy consumption in your home or office. Wengart Weekly circulation digital programmable thermostat has 6 events every day, provides an energy-saving and comfortable living environment, is easy to install and is convenient to use. This touchscreen thermostat is heating-specific, multi-functional, and has a large LCD display. Manual mode and program mode could be selected. Backlight for easy viewing. According to the result of comparing the indoor temperature with the set temperature, it controls the start and stop of the heating equipment by relay to achieve constant indoor temperature and energy saving. Fits 86*86 mm or European 60mm round box.
Included in the Box
- Thermostat
- User Guide
- Screws
- External Sensor

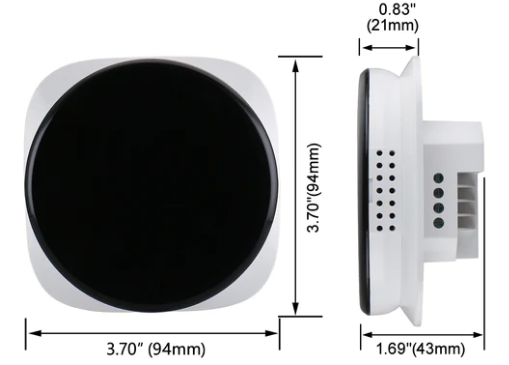

Dimension
Instruction

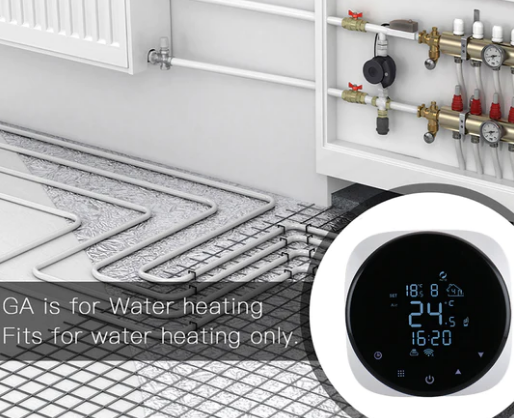

- This programmable floor heating thermostat is compatible with water floor heating systems, flush-mounted, suitable for 86 European cassettes, and CE certified. Output AC230V, maximum current 3A, provide you with all the control you need to save money and energy and maximize comfort.
- The room thermostat can freely choose a built-in air sensor or a 3m external sensor probe. When using an external sensor, it is suitable for a 3950, 10K=25°C sensor
- The room thermostat adopts touch buttons, and the temperature range can be set from 1-70°C. It has manual mode, programming mode and holiday mode to meet your unique needs.
- The room thermostat has a one-week programming function, which can automatically switch to the temperature you need within the set time. There are 6 fixed time periods on working days and 2 fixed time periods on rest days. At the same time, you can freely choose 5 days, 6 days or 7 days. Gives you the freedom to plan your weekly schedule and helps you save on energy bills.
- The room thermostat can be configured to automatically turn off the heating when it detects a rapid drop in room temperature (such as when a window is opened) to avoid wasting energy.
The room thermostat has a temperature calibration function. When the measured temperature is far from the actual room temperature, it can be calibrated by 1°C. - The digital thermostat has an LCD display, and the large screen displays the room temperature, set temperature, current heating status and current time, which is convenient for understanding the current status of the thermostat.
- The room thermostat has a white backlight, which lights up when the thermostat is operated, and automatically turns off after 10 seconds of no button operation (the time can be set from 5 to 30 seconds), which is convenient for setting the thermostat in a dark environment.
- The room thermostat has a power-off memory setting parameter function, and the information can be saved for a long time in the power-off state after the parameter setting.
- The room thermostat can lock the buttons, with half-lock and full-lock functions, the half-lock can be turned on and off, and the full-lock all buttons will not work, preventing children from accidentally touching
- The room thermostat has the function of starting temperature difference, and the starting temperature difference can be adjusted between 0.5 and 2.5°C. For example, if the set temperature is 20°C and the start-up temperature difference is 1°C, the thermostat will turn off the heating when the room temperature is 21°C and above, and turn on the heating when the room temperature is 19°C and below.
- The room thermostat has an anti-freezing function. In the off state, if the measured indoor temperature is lower than 5°C (1-10°C can be set), it will automatically turn on the heating to prevent the water pipe from freezing.
- The room thermostat can be configured to turn on the descaling function. After it is turned on, the water, electricity and heating system will not run for 300 hours, and it will be turned on for a period of time to prevent dirt from clogging the water pipes.
Notes:
- Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown on the pictures. Thank you!
- Please allow 1-3cm measuring deviation due to manual measurement.

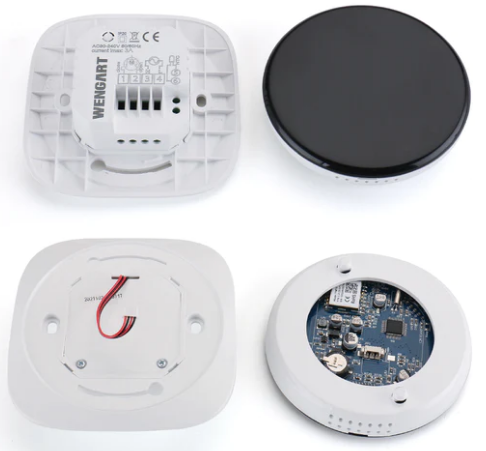

Assembly
Function Display
Features
- Digital Room Thermostat Automatically obtain the surrounding temperature, Precise control of the temperature you want, the temperature control accuracy of up to 0.5 ℃, Set temperature adjustment by touching the buttons
- Free to choose Manual mode/Programme mode/Holiday mode according to different applications
- Write a setting program through the programmable thermostat to make the thermostat work according to the set rules,6+1,5+2 and 7 days weekly schedule of 6 times period, you can do DIY programming,to provide you with maximum convenience in different situations
- Room Thermostat Timer: You can adjust the current time after entering the clock calibration interface, You can calibrate the room measurement temperature
- Two sensors: You can choose between built-in or external sensors with this water underfloor heating thermostat
- Power failure memory: No need to worry about a sudden power failure,smart thermostat will remember all settings
- The heating thermostat bandwidth can be adjusted from 0.5 to 5°C. For example, if the bandwidth is set to 1°C and the set temperature is 20°C, the heating will be turned off at 21°C and above, and turned on at 19°C and below.
- Child lock: Keypad locking function is designed to lock the room thermostat to avoid misoperation by children
- LCD display digital thermostat with backlight, simple to operate and easy to read even in the dark
- More functions can be set by entering the extended menu in the off state
FAQS
Q: Is the Wengart WG316 thermostat compatible with all HVAC systems?
A: Yes, the WG316 thermostat is compatible with most HVAC systems.
Q: Does the WG316 thermostat support 7-day programming?
A: Yes, the WG316 thermostat offers 7-day programming, allowing you to set different temperature schedules for each day of the week.
Q: Can I program different temperature settings for specific times of the day?
A: Yes, the WG316 thermostat allows you to program specific temperature settings for different times throughout the day.
Q: Does the thermostat have a vacation mode?
A: Yes, the WG316 thermostat includes a vacation mode that allows you to temporarily override the programmed settings when you’re away.
Q: Is the thermostat easy to program and use?
A: Yes, the WG316 thermostat features a user-friendly interface, making it easy to program and navigate.
Q: Does the thermostat have a backlit display?
A: Yes, the WG316 thermostat has a large, backlit display for easy visibility and readability.
Q: Can I control the thermostat remotely?
A: The availability of remote control depends on the specific features of the WG316 thermostat. Please consult the product manual or manufacturer’s website for more information.
Q: Does the thermostat have a battery backup?
A: The WG316 thermostat may or may not have a battery backup. It is recommended to check the product specifications or consult the manufacturer for this information.
Q: Can I override the programmed settings manually?
A: Yes, the WG316 thermostat typically allows you to manually adjust the temperature settings and override the programmed schedule if needed.
Q: Does the thermostat provide energy usage reports?
A: Energy usage reporting functionality may vary depending on the specific model of the WG316 thermostat. Refer to the product specifications or manufacturer’s information for details.
Q: Is the thermostat compatible with voice control systems like Amazon Alexa or Google Assistant?
A: Compatibility with voice control systems varies among thermostat models. Please check the product specifications or contact the manufacturer to determine if the WG316 thermostat supports voice control.
Q: Can the thermostat automatically adjust the temperature based on weather conditions?
A: The WG316 thermostat’s ability to adjust the temperature based on weather conditions may depend on its specific features. Check the product information or consult the manufacturer for more details.
Q: Does the thermostat have a filter replacement reminder?
A: Filter replacement reminder functionality may or may not be available in the WG316 thermostat. Review the product specifications or consult the manufacturer for information on this feature.
Q: Does the thermostat support multi-zone control?
A: The WG316 thermostat’s compatibility with multi-zone control depends on its specific capabilities. It is advisable to consult the product documentation or contact the manufacturer for accurate information.
Q: What is the warranty period for the WG316 thermostat?
A: The warranty period for the WG316 thermostat may vary. It is recommended to check the product packaging, and user manual, or contact the manufacturer for warranty details specific to your purchase.
