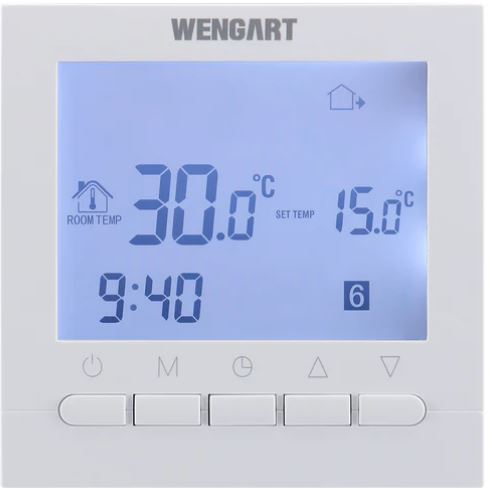

Wengart WG02B04 7-day Heating Programmable Thermostat
INTRODUCTION
With six events every day, the Wengart Weekly Circulation Digital Programmable Thermostat with LCD Touch Screen offers a pleasant and energy-efficient living environment. It is also simple to install and operate. Both manual and program modes were available. easy viewing with backlighting. For controlling electric heaters or the on/off valve actuator used in hydronic floor heating, the thermostat is advised. Most electric underfloor heating systems are compatible with this. Fits versions that are 60 mm square, 86 mm square, or European round.
- This CE-certified, flush-mounted, 86 European cassettes compatible programmable floor heating thermostat works with water floor heating systems. The output AC230V 3A and typically open normally closed electric heating actuator provide you the control you need to minimize discomfort and maximize energy and financial costs.
- The room thermostat’s temperature range may be adjusted to 5-99°C, and depending on the application, manual mode or programmed operation mode can be chosen.
- The room thermostat features a one-week programming feature that enables it to adjust automatically to the temperature you choose within a predetermined period of time. On working days, there are six defined time periods, and on rest days, there are two. You may freely choose 5 days, 6 days on working days, or 7 days at the same time. enables you to manage your weekly routine at your leisure and lowers your energy costs.
- The thermostat in the room features a calibration feature for temperature. When the detected temperature is significantly different from the room’s real temperature, it may be adjusted by 0.5°C.
- The digital thermostat features an LCD display, and the huge screen shows the time, the current temperature, the set temperature, the current heating status, and the current room temperature, making it easy to see the thermostat’s current state.
- The built-in air sensor or an external sensor probe may be selected by the room thermostat. The 3950, 10K=25°C sensor may be used when utilizing an external sensor.
- The room thermostat contains a white/blue backlight that illuminates when the thermostat is turned on and fades out automatically after 10 seconds without the need for button operation, making it easy to adjust the temperature in low light.
- The room thermostat includes a power-off memory setting parameter function, and after parameter setting, the information may be stored for a considerable amount of time in the power-off state. Children cannot accidentally touch the buttons since the room thermostat may lock them, the machine can be switched on and off after locking, and other buttons are inactive.
- The thermostat in the room includes an anti-freezing feature. In the off mode, it will automatically switch on the heating to keep the water pipe from freezing if the recorded inside temperature is below 5°C.
- The room thermostat offers a start-up temperature differential feature that may be set to a value between 1 and 9°C. The thermostat will switch off the heating when the room temperature is 21°C or higher and turn it on when the room temperature is 19°C or lower, for instance, if the set temperature is 20°C and the start-up temperature differential is 1°C.
Specification
- Power Supply Voltage: AC110/230V 50/60Hz
- Power Consumption: 2W
- Setting Range: 5~35℃
- Switch Differential: 0.5~5℃ adjustable (factory setting±1℃)
- Ambient Temperature: -5~50℃
- Ambient Temperature display accuracy:±0.5℃
- Temperature control accuracy: ±0.5℃
- Measured Range:1~70℃
- Inside Sensor: NTC 10k @25℃
- Protective Housing: IP20
- Housing Material: Anti-flammable PC
- Wiring terminal: one terminal can be connected to 2*1.5mm2 or 1*2.5mm2 wire at most
- Package Content: 1 x Thermostat,2 x Screws,1 x Manual
- Dimensions :86mm×86mm×27mm
- Color: White
- Weight: 234g
- Installation hole distance: 60mm
Features
- Digital thermostats for rooms Automatically achieve the desired temperature, regulate it precisely with an accuracy of up to 0.5 °C, and alter the temperature by tapping the buttons
- Freedom to choose Manual mode, Program mode, or Holiday mode based on various applications
- Write a setting program using the thermostat’s programmable interface to have it operate in accordance with the set guidelines You may build your own schedule using the 6+1, 5+2, and 7 days weekly time slots for optimal convenience in various circumstances.
- Room Thermostat Timer: After accessing the clock calibration interface, you may alter the current time and calibrate the room measuring temperature.
- Two sensors with this thermostat for water underfloor heating, you may choose between internal and exterior sensors.
- Power outage memory: If there is an unexpected power outage, the smart thermostat will remember all settings.
- The heating thermostat’s adjustment range is 0.5 to 5°C. For instance, if the set temperature is 20°C and the bandwidth is set to 1°C, the heating will switch off at 21°C and above and on at 19°C and below.
- LCD display digital thermostat with backlight, simple to use and easy to see even in the dark;
- Child lock: Keypad locking feature is intended to lock the room thermostat to prevent misoperation by children;
- More functions may be enabled by opening the expanded menu in the off state
FAQS
What is the 7-day Heating Programmable Thermostat by Wengart (WG02B04)?
Users may plan and regulate their heating settings with the Wengart WG02B04, a programmable thermostat made exclusively for heating systems.
What kinds of heating systems are compatible with the WG02B04 thermostat?
Radiant floor heating, electric baseboard heaters, and central heating systems are all compatible with the WG02B04 thermostat.
How does programming a thermostat work?
The WG02B04 thermostat offers versatility and customization for heating schedules by allowing users to select several temperature settings for each day of the week.
Does the touchscreen display on the WG02B04 thermostat exist?
No, the touchscreen display on the WG02B04 thermostat is not available. Typically, it has a digital display with buttons for temperature control and navigation.
Is it possible to remotely regulate the thermostat?
The WG02B04 thermostat doesn’t support remote control, sorry. The thermostat itself serves as the manual control.
Does the WG02B04 thermostat offer measures to save energy?
The WG02B04 thermostat does, in fact, have energy-saving features like programmable schedules to aid in optimizing heating settings and cutting energy use.
The thermostat should be able to show both Celsius and Fahrenheit.
Yes, depending on the user’s request, the WG02B04 thermostat has the option to show temperature data in either Celsius or Fahrenheit.
Does the thermostat include a backlight so that it can be seen well at night?
Yes, the backlight function of the WG02B04 thermostat usually improves sight in dim light or at night.
Can the thermostat be used with a heating system with many zones?
If each zone has its own thermostat, the WG02B04 thermostat may be utilized in a multi-zone heating system. The temperature in each zone is controlled by a thermostat.
Is there a vacation mode on the thermostat?
The WG02B04 thermostat does indeed include a vacation mode option that enables customers to specify a certain temperature range for lengthy periods of time while they are away from home.
Can the thermostat pick up on user preferences and adjust?
The WG02B04 thermostat doesn’t learn new settings, therefore no. It depends on the pre-programmed parameters and does not automatically adjust to human preferences.
Thermostat battery backup—does it exist?
Yes, most WG02B04 thermostats include an integrated battery backup that keeps the preprogrammed settings when the power goes off.
Can the thermostat show the temperature outside?
The WG02B04 thermostat does not come equipped with an integrated exterior temperature sensor to show the current temperature outside. It focuses on regulating the temperature within.
Is the WG02B04 thermostat necessary to be professionally installed?
Although the WG02B04 thermostat may be installed by the user, a professional HVAC specialist is advised, particularly if you are unfamiliar with thermostat installations.
Can voice control be used with the WG02B04 thermostat?
No, voice control is not supported by the WG02B04 thermostat. The interface on the thermostat is the sole way to manually control it.
