VIVE Comfort TP-E219 Thermostat INSTALLATION MANUAL

Vive-LOGO

VIVE Comfort TP-E219 Thermostat

VIVE-Comfort-TP-E219-Thermostat-PRODUCT

Application Guide
The TP-E219 is an optional accessory to TP-WCTO (Wireless Wire.) When TP_WCTO is installed outdoors, it must be weather protected. The TP-E219 is a weather-resistant junction box that can be used to weather-protect TP-WCTO.

A trained, experienced technician must install this product.
Carefully read these instructions. You could damage this product or cause a hazardous condition if you fail to follow these instructions.

Features

  • Non-metallic junction box
  • UL Listed with a NEMA 6P rating per Section 314, exception of the National Electrical Code
  • Manufactured from PVC or PPO thermoplastic molding compound and featuring foam-in-place gasket lids attached with stainless steel screws.

Dimensions (inches):

  • Width = 6”
  • Height = 6”
  • Depth = 4”

Includes:

  • 4 Stainless steel screws for lid
  • Rubber grommets for 3, 5, or 8 wire holes

Steps to mounting WW160W in E219 Junction Box:

  • Mount the base plate of WW160W output module to the bottom of junction box.
  • Drill hole big enough for thermostat wire or rubber grommet (rubber grommet may provide greater weather resistant seal)
  • Feed thermostat wire through hole and connect to appropriate terminals (see WW160W instruction manual for wiring instructions)
  • Plug WW160W into subbase
  • Screw lid tightly onto E219
  • Mount or place E219 where appropriate

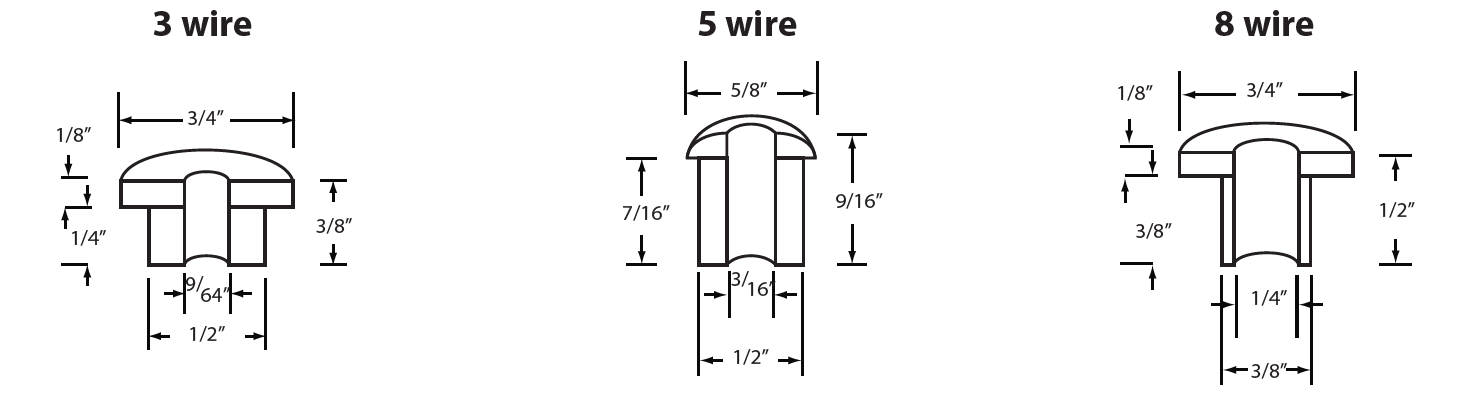

Optional rubber grommets

VIVE-Comfort-TP-E219-Thermostat-FIG.1

REFERENCE:

Download Manual:

VIVE Comfort TP-E219 Thermostat INSTALLATION MANUAL
