Venstar T2900SCH Programmable Thermostat Product Specificaitons Guide

Venstar-logo

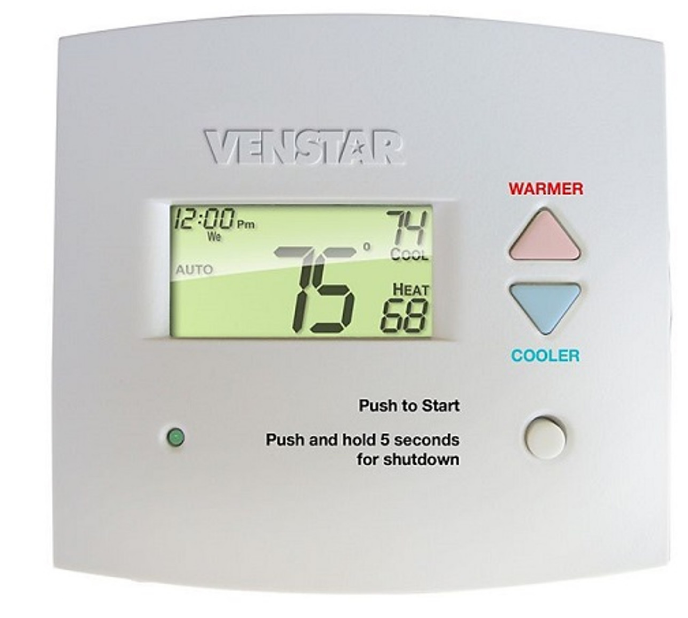

Venstar T2900SCH Programmable Thermostat

Venstar-T2900SCH-Programmable-Thermostat-Product-PRODUCT

STANDARD FEATURES

Venstar-T2900SCH-Programmable-Thermostat-Product-FIG-1

  • Weekday/weekend program designed for schools, very easy to program
  • Manual activation of the program prevents the conditioning of unoccupied rooms.
  • Automatically returns to energy-saving setpoints at end of the school day.
  • Auto changeover, 3-stage heat, 2-stage cool for use with gas/electric, heat pump, electric & hydronic heat
  • 3 Security Levels with setpoint limiting.
  • Factory preset to security level “2”. 0nly start and temperature buttons are adjustable.
  • Can average up to 8 (wired or wireless) remote sensors
  • Control to, or monitor a second remote sensor
  • 3 configurable outputs for maximum flexibility (MISC1, MISC2, MISC3)
  • Smart Fan (keeps the fan from running during unoccupied periods)
  • Display shows both heating an cooling setpoints and room temperature simultaneously
  • All programming and setpoints are stored in non-volatile memory, and are never lost in power failure
  • Service filter and service UV lamp indicators
  • Red/Green LED shows whether the thermostat is calling for heating or cooling
  • Thermoglow backlit electro-luminous display and backlit color-coded keys and legends
  • Holiday programming (up to 99 days).
  • Adjustable unoccupied override timer, adjustable in 15 min. increments, up to 6 hours.
  • Morning warm-up feature – automatically heats or cools the room in the morning before occupancy.
  • Onboard dry contact closure is available to force stat into occupied operation.
  • Accepts humidification/dehumidification control module (Venstar part number ACC0430)
  • Accepts accessory EZ Programmer (Venstar part number ACC0432)
  •  For accessory locking cover use (Venstar part number ACC0620)Venstar-T2900SCH-Programmable-Thermostat-Product-FIG-2
