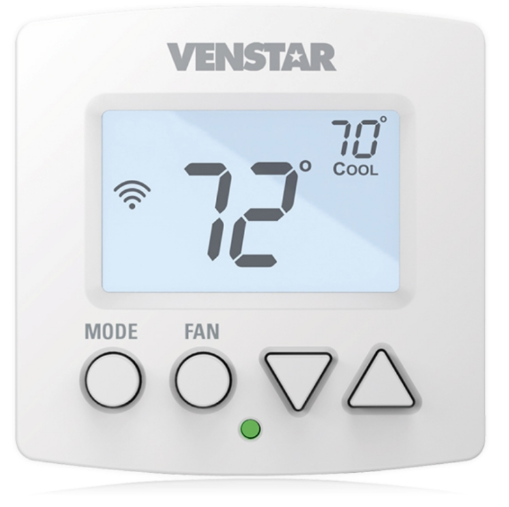

Venstar T2000 Explorer Mini Digital Thermostat
STANDARD FEATURES
- 7-day programmable with up to 4 time periods per day
- Up to 2-stages of heat, 2-stage cool for use with gas/electric, heat pump and electric HVAC equipment
- Built-in 2.4Ghz wireless B/G/N WiFi antenna, WEP and WPA/WPA2 compatible
- Local API for 3rd party monitor and control
- Bi-color LED indicates a heating or cooling demand
- Scrolling display with FDD Alert
- Large easy to read LED backlit display
- All programming and setpoints stored in non-volatile memory, and are never lost in power failure
- Service filter and service drain pan indicators
- Adjustable dead bands
- California Title 24 compliant
- Free Configurator app to easily set up WiFi and thermostats settings
- Accepts optional wireless WiFi temperature sensor (part number ACCTSENWIFI)
- Accepts optional wall plates (part numbers ACC0421S, M or L)
- 1-year limited warranty
MODEL: | T2000 | QUANTITY: | DATE: | |||
JOB NAME: | ||||||
LOCATION: | ||||||
BUYER: | BUYER P.O.#: | |||||
ENGINEER: |

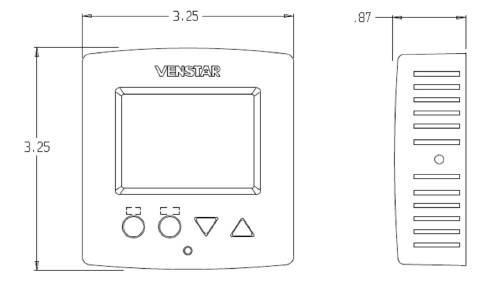

DIAGRAM
Reference
Download Manual:
Venstar T2000 Explorer Mini Digital Thermostat Product Specificaitons Guide
OTHER MANUALS
Venstar T2000 Explorer Mini Digital Thermostat Quick Start Guide
Venstar T2000 Explorer Mini Digital Thermostat Product Specifications Guide
