Venstar T1800 Programmable Thermostat Product Specifications Guide

Venstar-logo

Venstar T1800 Programmable Thermostat

Venstar-T2900SCH-Programmable-Thermostat-Product-PRODUCT

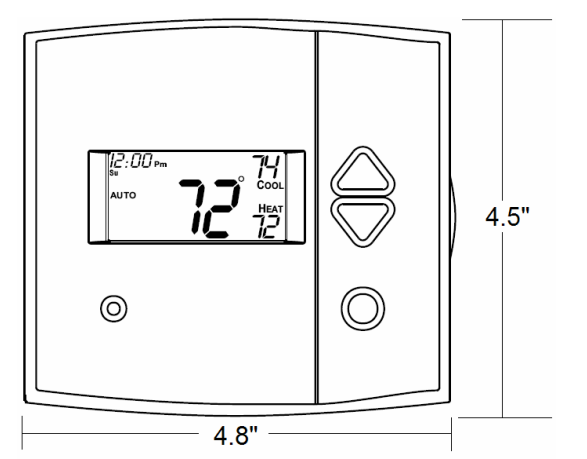

Dimensions

Venstar-T1800-Programmable-Thermostat-fig-1

STANDARD FEATURES

  • 7-day Programmable with up to 4 time periods per day, with copy command for easy programming
  • Accepts humidification/dehumidification control module (Venstar part number ACC0430)
  • Auto changeover, 3-stage heat, 2-stage cool for use with gas/electric, heat pump, electric & hydronic heat
  • Configurable for manual changeover, also configurable programmable or non-programmable
  • Adjustable deadbands and timers
  • Control to, or monitor a second remote sensor
  • 3 configurable outputs for maximum flexibility (MISC1, MISC2, MISC3)
  • Extra 6th and 7th outputs (beyond our standard thermostat)
  • Programmable Fan- adjustable 0 to 60 minutes each hour, with programmable start and stop times
  • Smart recovery
  • Display shows both heating an cooling setpoints and room temperature simultaneously
  • All programming and setpoints stored in non-volatile memory, and are never lost in power failure
  • Service UV lamp indicators
  • Configurable programmable or non-programmable, also configurable for manual changeover
  • Red/Green LED shows whether thermostat is calling for heating or cooling
  • 5-minute compressor time guard and adjustable cycle limit, both defeatable for servicing equipment
  • Outdoor sensor ready with high and low temperature of the day (wired or wireless)
  • Thermoglow backlit electro-luminous display and backlit color coded keys and legends
  • Accepts accessory IR Remote Control system (Venstar part number ACC0431)
  • Accepts accessory EZ Programmer (Venstar part number ACC0432)
  • For accessory locking cover use (Venstar part number ACC0620)
  • Energy Star
MODEL: T1800 QUANTITY: DATE:
JOB NAME:
LOCATION:
BUYER: BUYER P.O.#:
ENGINEER:
