VENSTAR ACC-TSENWIFIMINI Wireless Temperature Sensor Installation Instruction

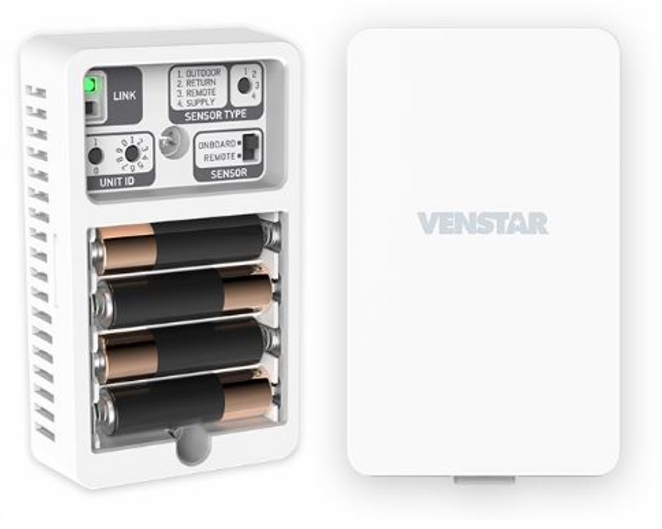

VENSTAR ACC-TSENWIFIMINI Wireless Temperature Sensor

OVERVIEW

This wireless temperature sensor may be used as a room remote temperature sensor or an outdoor temperature sensor. Venstar thermostats vary by the model in the way they can use remote sensors. This includes averaging, control to, or monitoring features. Please consult the Owner’s Manual of the thermostat that you are going to pair this sensor with to understand its capabilities and pairing procedure. This sensor is compatible with most Venstar Wi-Fi thermostats that contain the latest firmware. Please consult Venstar.com for a complete listing of compatible thermostats.
Note: This sensor must be connected to the same local network as the thermostat(s) that will use the sensor data.

Before you begin the installation:
The Venstar Configurator App is needed to configure this sensor. This App may be downloaded from your mobile device store. Select a suitable location for the ACC-TSENWIFIMINI sensor. Please note that the sensor must have good Wi-Fi reception with the access point it is intended to join. Do not mount in direct sun or direct rain. Please have handy the Owner’s Manual for the thermostat that will be paired with the sensor. Venstar thermostats have unique pairing procedures.

To Connect the Sensor to an Access Point

1. Remove the sensor cover.

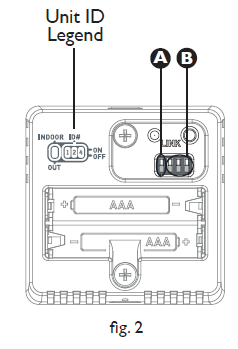

2. Configure the Sensor. (use fig. 2 as a guide)
   • Set the Type:
3. Indoor temperature is sampled and transmitted once every minute.
4. Outdoor temperature is sampled and transmitted once every 5 minutes.

Set the Unit ID:
If more than one ACC-TSENWIFIMINI is joined to an access point each sensor must have a unique UNIT ID# to operate properly. Add all of the ID ’ON’ switches together to arrive at the Unit ID#. If all the ID number switches are set to ‘OFF’ then the Unit ID# is 0 (zero).

Up to 8 ACC-TSENWIFIMINI sensors may be joined to one access point.

• Install 2AAA batteries with the polarity as indicated on the ACC-TSENWIFIMINI housing.
• Alkaline batteries are acceptable for operation in the temperature range of 0˚F to 120˚F.
• When operating between -20˚F to 130˚F it is recommended to use good quality Lithium AAA batteries.
• Press and hold the Link button (see fig. 3) until the Link LED starts to flash.

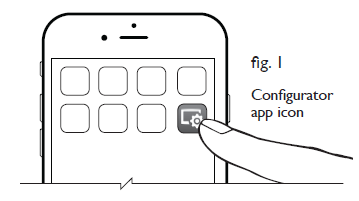

• Use the Venstar Configurator App to set up the Wi-Fi connection.
• Select the Wi-Fi Temperature Sensor Mini. in the Configurator App.
• Select “Setup Wi-Fi”
• Follow the Wi-Fi setup instructions on the Configurator App.

Notes:

• The LED will stay solid while connecting to the access point.
• If the connection is successful the LED will turn off.
• If the connection is unsuccessful the LED will flash 5 times.
• If the App detects that the sensor firmware is not up to date, then the user will be prompted and instructed on how to update the sensor’s firmware.

At the time of publication of this manual, Explorer models with firmware version 10 or greater, ColorTouch models T7850, T7900, T8850, and T8900 with firmware version 5 or greater, and Explorer Mini models T2000, T2050, T2100, and T2150 are compatible with this sensor. To see the current list of compatible thermostats along with pairing and unpairing instructions for each thermostat, please visit Venstar.com.

Specifications

Operational Temperature

• with alkaline batteries: 0° F – 120° F
• with lithium batteries: -20° F – 130° F
• temperature measurement range: -20˚F – 120˚F

Expected Battery Life

•  Indoor Sensor sample rate of 1per minute: > 1 year*
• Assumes strong, constant Wi-Fi signal strength and connection

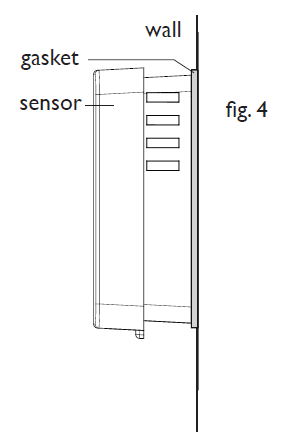

When mounting outdoors (fig 4)

• Install gasket as shown between wall and sensor
• Keep out of direct sunlight
• Keep out of direct rain

An ideal outdoor mounting location would be on a covered outdoor patio or protected by an awning or eave from the elements. Use the included screw to secure the cover to the sensor.
