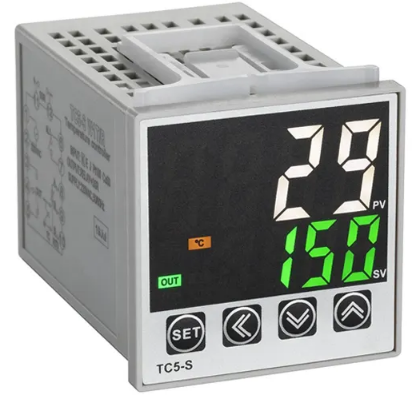

Trihero TC5 Digital Temperature Controller Thermostat User Manual

The Trihero TC5 Digital Temperature Controller Thermostat is an advanced device designed to accurately control and regulate temperature in various applications. It offers precise temperature monitoring and adjustment capabilities, making it suitable for a wide range of industries and environments.

The TC5 Digital Temperature Controller Thermostat is equipped with a digital display that provides clear and easy-to-read temperature readings. This allows users to monitor the current temperature and make necessary adjustments with precision. The controller utilizes advanced sensing technology to ensure accurate temperature measurement, providing reliable and consistent results.

One of the key features of the Trihero TC5 is its ability to control temperature within a specific range. It allows users to set desired temperature setpoints and configure temperature differentials to ensure optimal temperature control. The thermostat can activate heating or cooling systems based on the temperature readings, ensuring that the desired temperature is maintained.

The TC5 Digital Temperature Controller Thermostat is designed with user-friendly features, including intuitive controls and programmable settings. It offers multiple operating modes and customizable parameters, allowing users to tailor the thermostat’s functionality to meet their specific requirements. The device can be easily programmed and adjusted, making it flexible and adaptable to different temperature control needs.

Furthermore, the Trihero TC5 is built with durability and reliability in mind. It is constructed using high-quality materials and is designed to withstand challenging environments. The thermostat is capable of operating in a wide temperature range and can handle varying levels of electrical power, ensuring long-term performance and stability.

In summary, the Trihero TC5 Digital Temperature Controller Thermostat is a versatile and reliable device that provides precise temperature control for various applications. With its advanced features, user-friendly interface, and durable construction, it offers an effective solution for maintaining optimal temperature conditions in industrial, commercial, and residential settings.

Specification

• Warranty: 18 months, 18 Months
• Customized support: OEM, ODM
• Place of Origin: Zhejiang, China
• Brand Name: Trihero
• Model Number: TC5
• Certificate: CE ROHS
• Power supply: 100-240VAC
• Display: LED Display
• Size: 48*48
• Output: Relay +SSR
• Weight: 0.15 KGS
• Color: grey white
• Measuring range: 0-1200C
• Accuracy: ±0.5%

What Is In The Box

• Thermostat
• User Manual
• External Sensor
• Screws

Usage

To use the Trihero TC5 Digital Temperature Controller Thermostat, follow these steps:

• Power Supply: Connect the TC5 to a power source within the operating voltage range of 100-240VAC.
• Temperature Sensor: Connect the appropriate temperature sensor to the TC5. Ensure that the sensor is compatible with the controller (e.g., thermocouple, RTD).
• Set Temperature Range: Set the desired temperature range for your application using the control buttons or keypad provided on the TC5.
• Heating/Cooling Mode: Select the appropriate mode (heating or cooling) based on your application requirements.
• Temperature Differential/Hysteresis: Set the temperature differential or hysteresis value if you want to control the temperature with a specific range or prevent frequent on/off cycles.
• Programmable Profiles (Optional): If needed, program temperature profiles using the TC5’s profile programming feature. You can set different temperature values and time durations for specific periods.
• Timer Settings (Optional): If you want to schedule temperature changes, use the timer function to define when and for how long the temperature should change.
• Temperature Calibration (Optional): Calibrate the TC5 if you want to fine-tune the temperature accuracy. Follow the calibration instructions provided in the user manual.
• Display and Monitoring: The TC5 features a large digital display that shows the current temperature in real-time. Monitor the displayed temperature to ensure it matches your desired setpoint.
• Safety and Protection: The TC5 has built-in safety features like short-circuit and sensor error protection. Be aware of any error messages or indicators displayed by the controller and take appropriate actions if necessary.
• Data Logging and Connectivity (Optional): If you want to log temperature data or connect the TC5 to a computer for configuration, utilize the USB connectivity feature as per the instructions provided.
• Ongoing Monitoring: Continuously monitor the temperature and ensure it stays within the desired range. Make any adjustments to the setpoint or other settings if needed.
