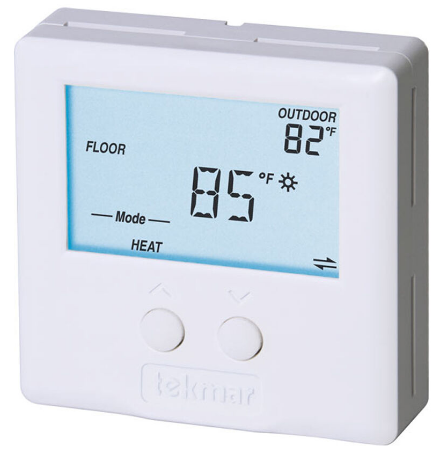

Tekmar Q 528 Non-Programmable Thermostat

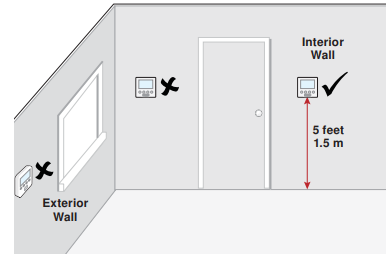

Location

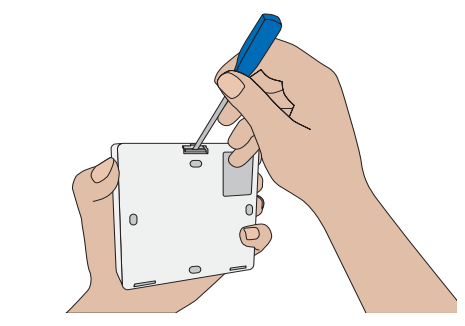

Remove Mounting Base

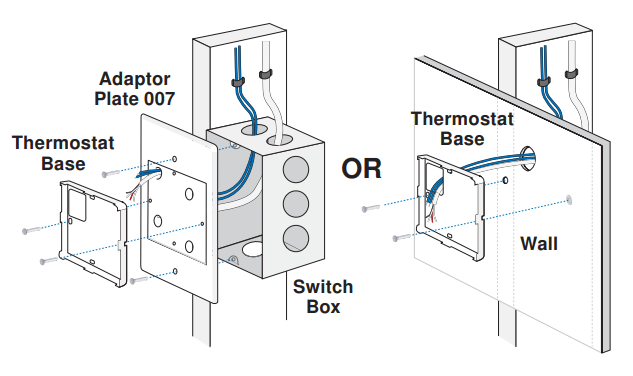

Install Mounting Base

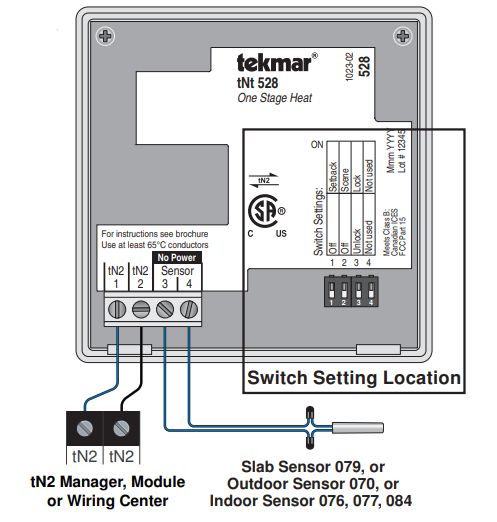

Wiring
Switch Settings
| Switch | Position | Action |
|
1 |
ON | SETBACK Allow the thermostat to respond to the available schedule. Requires Timer 033. |
| OFF | OFF No setback schedule response. | |
|
2 |
ON | SCENE Allow thermostat to respond to scenes. Requires User Switch 479. |
| OFF | OFF No scene response. | |
|
3 |
ON | LOCK Locked to ‘User’ access level. Set to Lock when installation is completed. |
| OFF | UNLOCK Unlock to access all settings. Set to Unlock during installation. | |
|
4 |
ON | Not used |
| OFF | Not used |

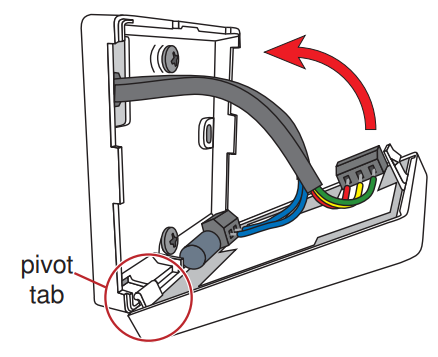

Close Thermostat

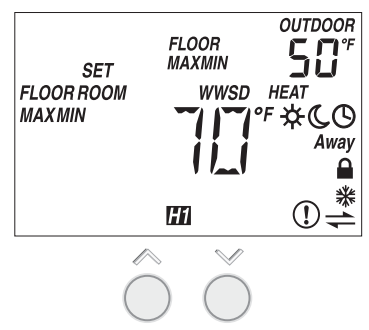

User Interface

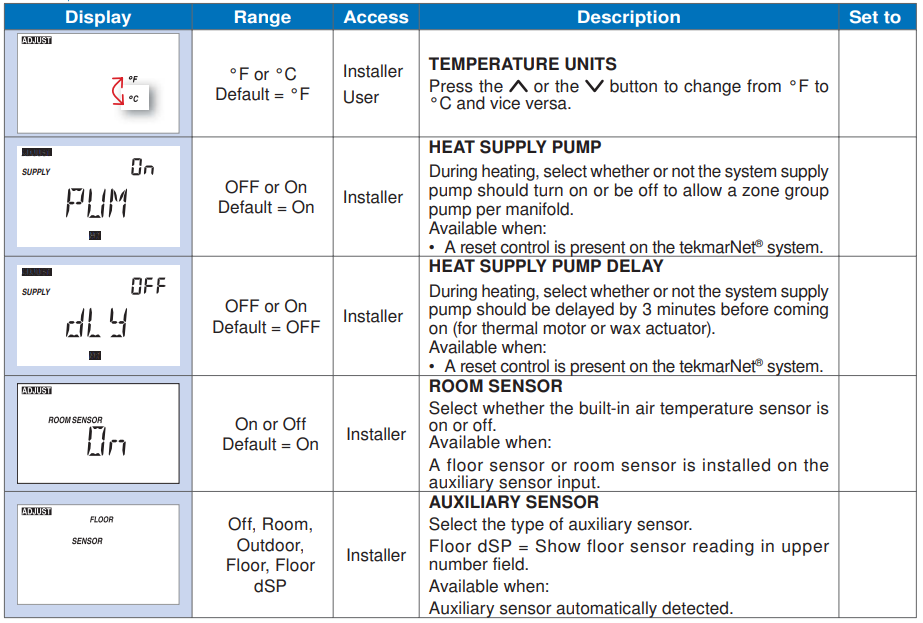

Critical Settings
The following settings are essential to the successful operation of the system.
Important Note: Set switch setting #3 and tekmarNet® system control to Unlock to change Access level to Installer. Return to Lock setting once installation has been completed.
Press + Together
- Press and hold down both the
AND
buttons for 2 seconds to change from one step to the next. - Release both buttons once the step has been reached.
- Press the AND the button to change the setting, if available.
- Press and hold down both the AND buttons for 2 seconds to go to the next step, OR
- After 10 seconds of no button activity, the display goes back to normal operation.
For a full list of settings and operational details, please refer to the thermostat Installation and Operation Manual (D528) included with compatible tekmarNet® controls or download the brochure from www.tekmarcontrols.com
